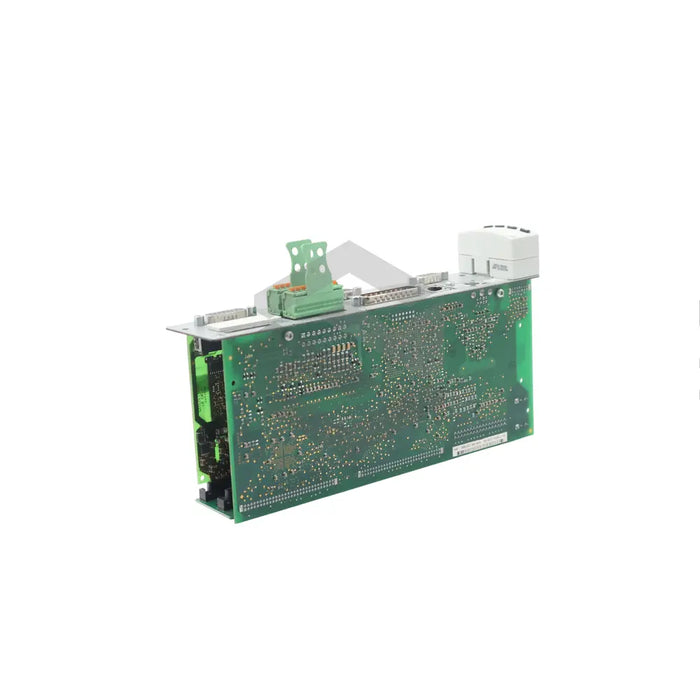

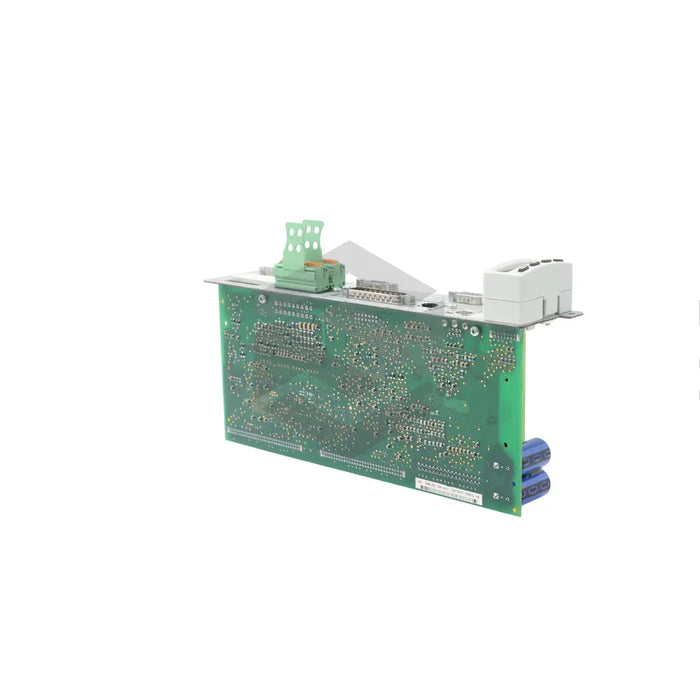

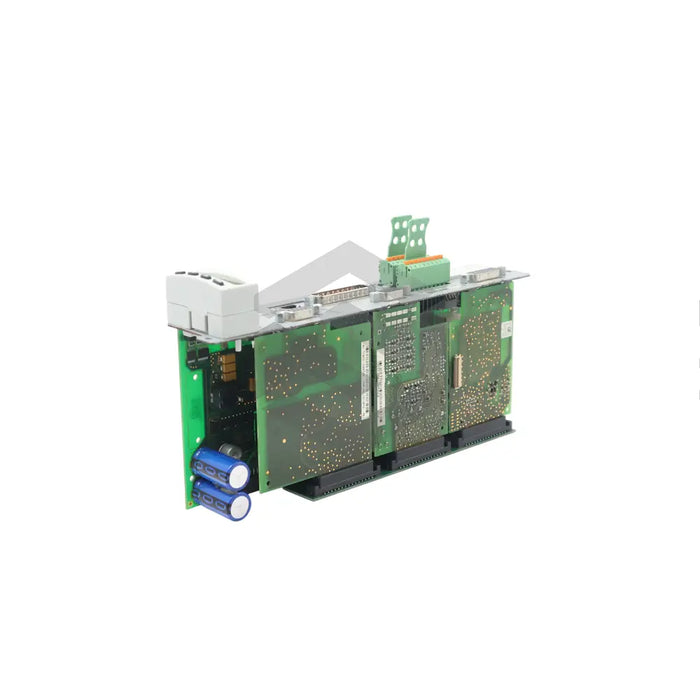

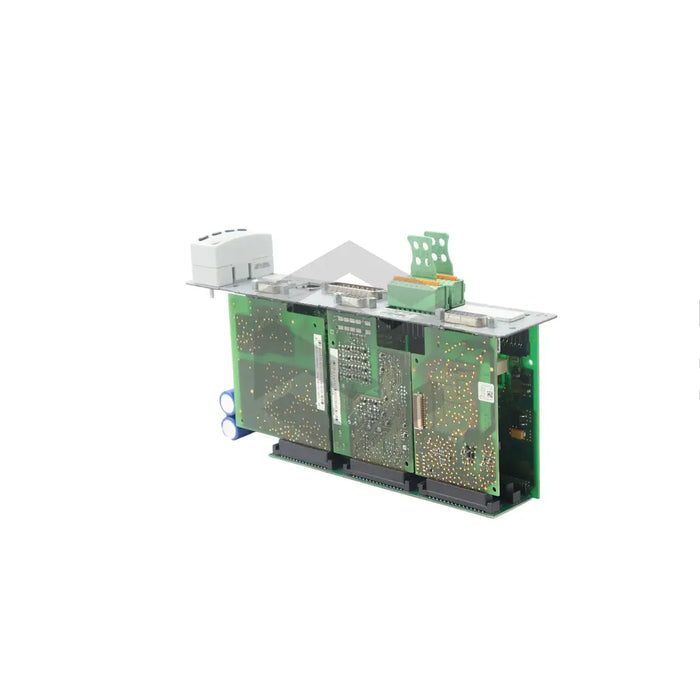

S image of CSH01.1C-PB-ENS-NNN-MD2-L1-S-NN-FW

CSH01.1C-PB-ENS-NNN-MD2-L1-S-NN-FW

by Bosch Rexroth Indramat
$1,824.38 - $1,824.38
$1,824.38
$1,824.38 - $1,824.38
$1,824.38

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's CSH01.1C-PB-ENS-NNN-MD2-L1-S-NN-FW is an advanced single-axis control section designed for extended functionality and maximum scalability, aimed at solving industrial automation challenges with reliability and sustainability. This model supports a variety of optical encoders including IndraDyn S, Hiperface, and TTL. Special features include a digital I/O extension with SSI encoder interface, secured on connection point X10. For standard encoder evaluation, connection point X4 is dedicated. Safety during maintenance and repair are ensured through a starting lockout at terminal X41. It also offers a LED display operator’s panel for setup, configuration, and operation aid. The model features 1 relay contact, 2 analog outputs, and 4 digital output ports for connecting digital devices. Adjustable current and velocity controls, and an adjustable PWM frequency range from 2 to 16 kHz are offered. Lastly, it is housed in an IP20 rated enclosure for protection against solid objects. Additional details can be gathered from the CSH user manual using the type code.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-PB-ENS-NNN-MD2-L1-S-NN-FW

Type

Single-Axis Advanced Control Section

Functionality

Extended scope with maximum scalability

Optical Encoder Support

Servo motor series IndraDyn S, Hiperface, and TTL

Special Features

Extension module for digital I/O extension with SSI encoder interface

Connection Point X10

Dedicated for extension module

Connection Point X4

Dedicated for standard encoder evaluation

Safety Features

Starting lockout on terminal X41

Display

Operators panel with single-line LED

Relay Contacts

1

Analog Outputs

2

Digital Output Ports

4

Current Control

62.5 - 125 ms

Velocity Control

125 - 250 ms

PWM Frequency

2 - 16 kHz

Connection point X31.8 and X31.9

For external power supply

Enclosure Rating

IP20
