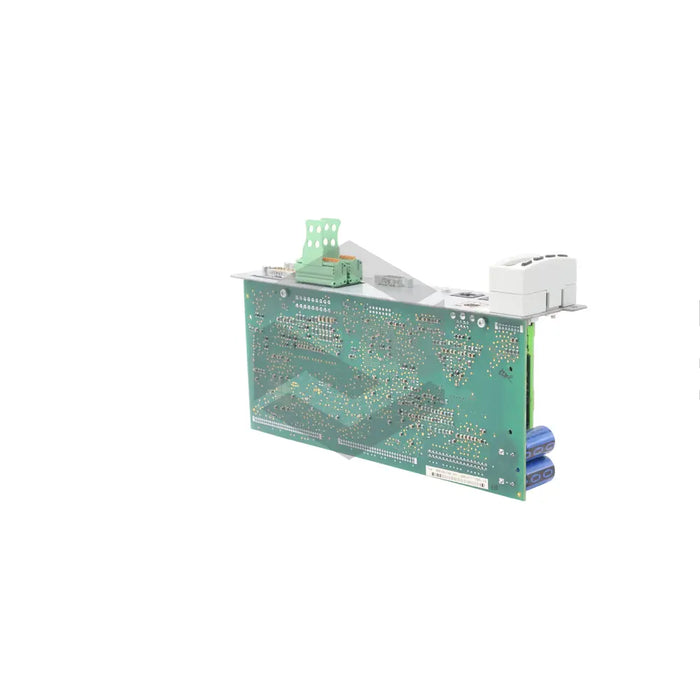

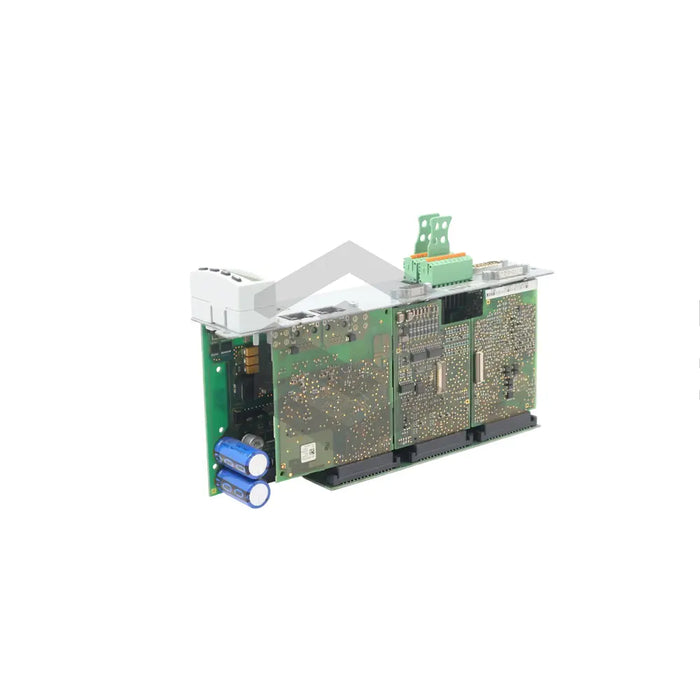

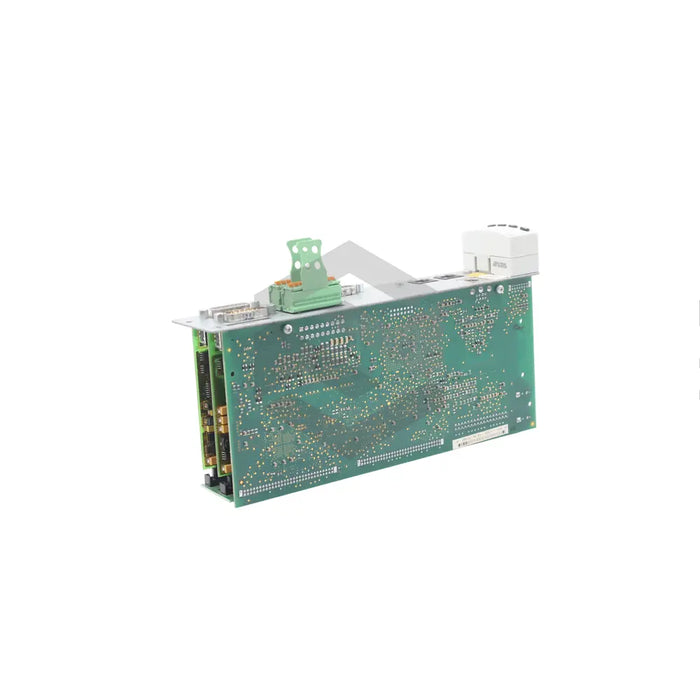

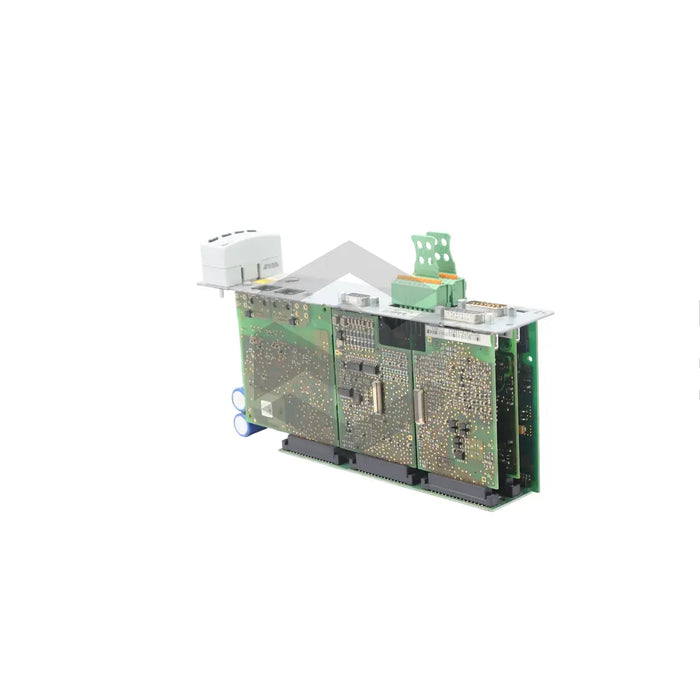

S image of CSH01.1C-S3-EN1-ENS-NNN-S2-S-NN-FW

CSH01.1C-S3-EN1-ENS-NNN-S2-S-NN-FW

by Bosch Rexroth Indramat
$3,575.67 - $3,575.67
$3,575.67
$3,575.67 - $3,575.67
$3,575.67

In Stock, Ships 1 - 3 Days

Produced by Bosch Rexroth Indramat, a globally acclaimed manufacturer of electric drive and motion control technology, the CSH01.1C-S3-EN1-ENS-NNN-S2-S-NN-FW model is crafted for multiple industrial services. This model hosts an HSF/RSF encoder in the X4 slot that uses 6W of power, features four digital outputs, one analog input, and two analog outputs. It exhibits a 4A inrush current and is designed for specific temperature and humidity conditions. The device, engineered for harsh industry environments, allows speeds between 125 and 250 microseconds, currents between 62.5 and 125 microseconds, and positions from 250 to 500 microseconds. This unit integrates an IndraDyn/hiperface encoder in the X8 slot, a safety option (S2 Safe Motion), SERCOS 3 communication module, a conventional control panel, and eleven digital inputs. It offers a minimum cycle time of 250 milliseconds, which varies with firmware versions. The module requires certified installation and diode protection against improper connections or power polarity inversions.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-S3-EN1-ENS-NNN-S2-S-NN-FW

Encoder Type

HSF/RSF

Power Consumption in X4 Slot

6W

Digital Outputs

4

Analog Inputs

1

Analog Outputs

2

Inrush Current

4A

Temperature and Humidity Range

Specific

Suitable for Usage

Harsh Industrial Settings

Installation Requirement

Certified Technician

Velocities Range

125 - 250 microseconds

Currents Range

62.5 - 125 microseconds

Positions Range

250 - 500 microseconds

Protection

Diode for incorrect connections and power supply polarity reversal

Single Relay Contact Switching Frequency

2 - 16 Hz

Encoder in X8 slot

6 W-consuming IndraDyn/hiperface encoder

Safety Option

S2 (Safe motion)

Firmware

Needs to be purchased separately

Control Panel

Conventional

Digital Inputs

11

Communication Module

SERCOS 3

Cycle Time

250 milliseconds minimum, varies with firmware version.
