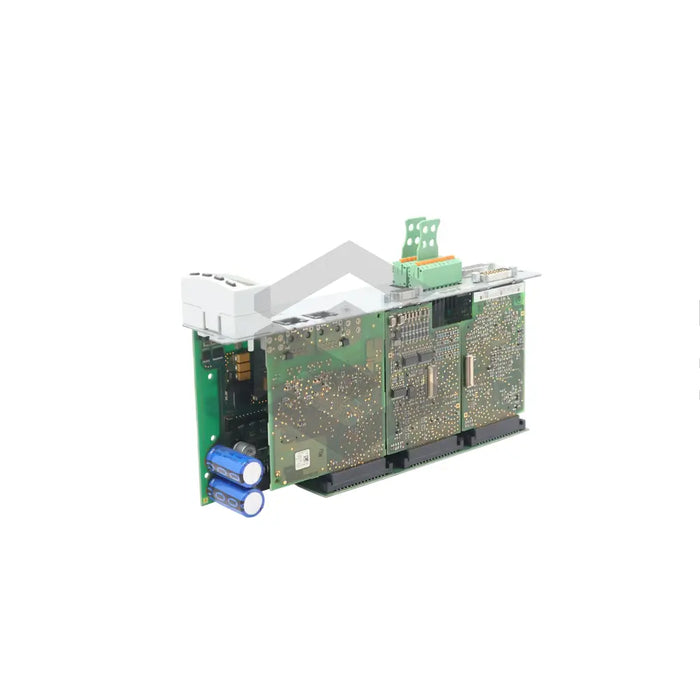

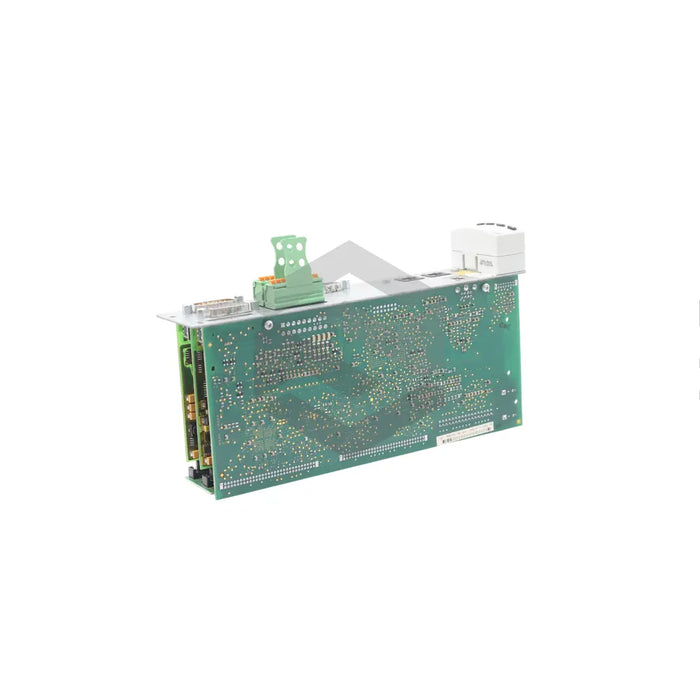

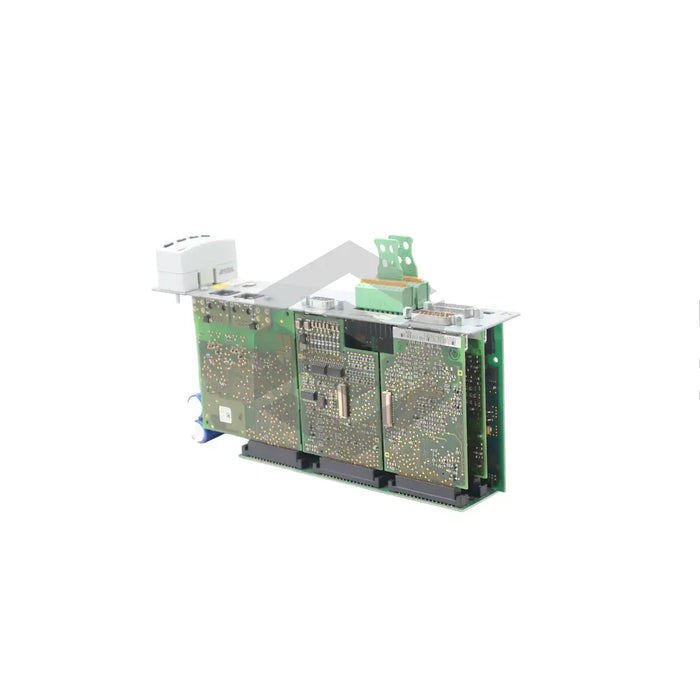

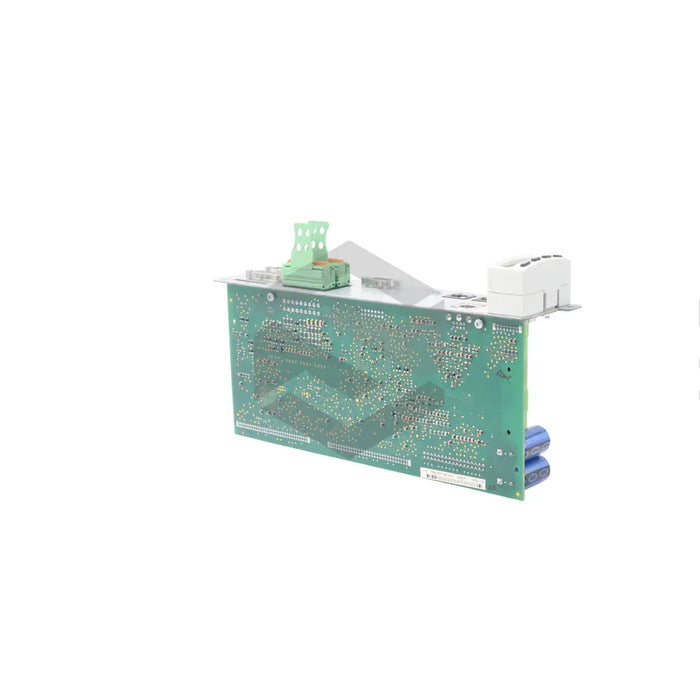

S image of CSH01.1C-S3-EN2-EN1-NNN-S2-S-NN-FW

CSH01.1C-S3-EN2-EN1-NNN-S2-S-NN-FW

by Bosch Rexroth Indramat
$3,575.67 - $3,575.67
$3,575.67
$3,575.67 - $3,575.67
$3,575.67

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CSH01.1C-S3-EN2-EN1-NNN-S2-S-NN-FW model is an industrial quality motion control component known for its reliability and performance. Boasting S2 safe motion safety and firmware efficiency, the model also includes a user-friendly control panel and an EnDat2.1 encoder in the X4 slot. Specifications include a minimum SERCOS cycle time of 250 microseconds, two analog outputs, four digital outputs, eleven digital inputs, an inrush current of four amps, and power consumption of 7.5 watts. With selectable cycle times for velocities, currents, and positions, a SERCOS 3 communication module, and a 6W HSF/RSF encoder in the X8 slot, this model showcase versatility for a range of industrial applications including printing, packing, food processing, handling, and mounting. A 2W powered encoder emulator fits into the X10 slot and the model dimensions are 103mm width, 49.5mm depth, and 241mm height. Suitable for trained professionals, this model requires adherence to environmental parameters to ensure safety and avoid potential damage.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-S3-EN2-EN1-NNN-S2-S-NN-FW

Safety Feature

S2 Safe Motion Safety

Firmware

Efficient Firmware

Control Panel

User-friendly

Encoder-X4 slot

EnDat2.1

Minimum Cycle Time for SERCOS

250 microseconds

Number of Analog Outputs

2

Number of Digital Outputs

4

Number of Digital Inputs

11

Inrush Current

4 amps

Power Consumption

7.5 watts

Cycle Time for Velocities

125 to 250 microseconds

Cycle Time for Currents

62.5 to 125 microseconds

Cycle Time for Positions

250 to 500 microseconds

Communication Module

SERCOS 3 (1 W power)

Option-2 Encoder (X8 slot)

HSF/RSF (6 W power)

Dimensions

Width 103mm, Depth 49.5mm, Height 241mm

Power for Encoder Emulator (X10 slot)

2 W

Serial Interface

Single

Applications

Industrial

Installation and Operation

By Certified Technician

intended Usage

Part of a Drive Controller for Processes including Printing, Packing, Food Processing, Handling and Mounting
