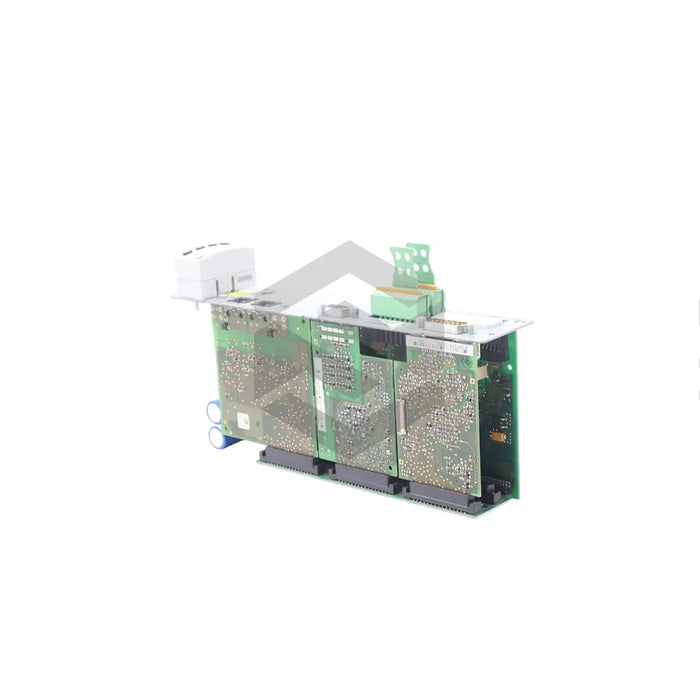

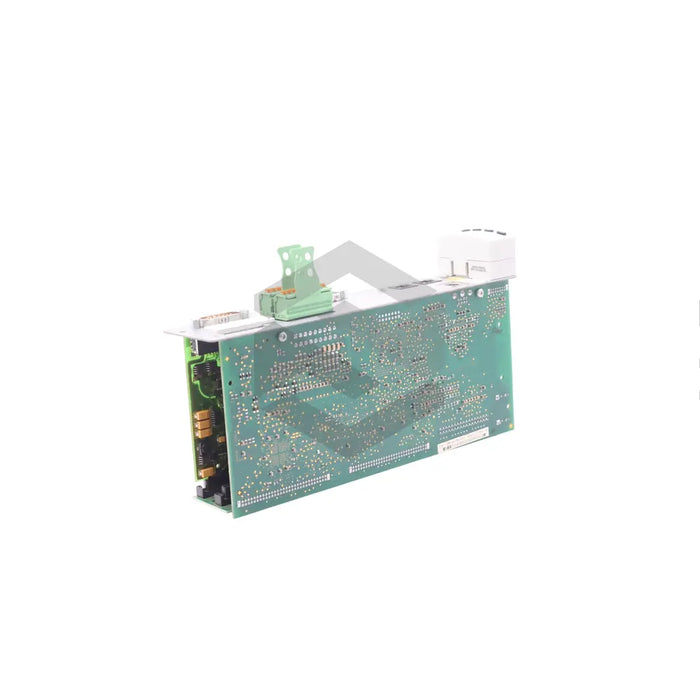

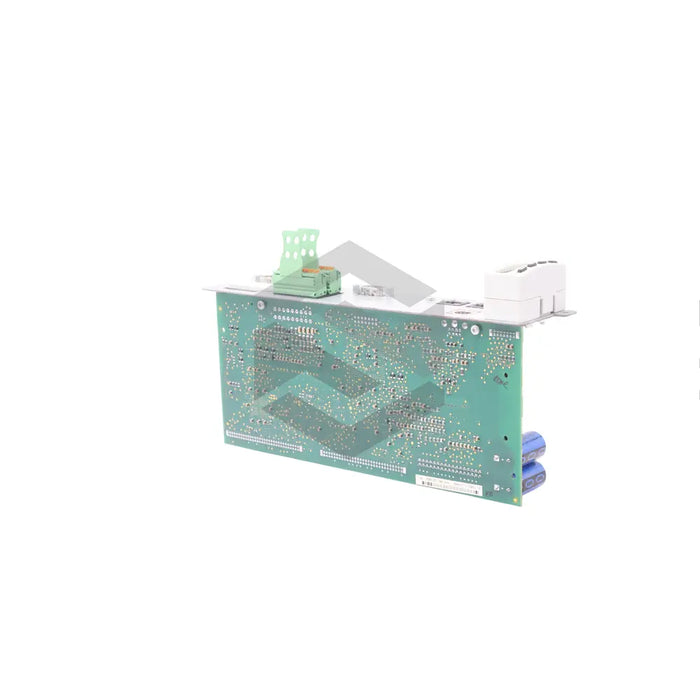

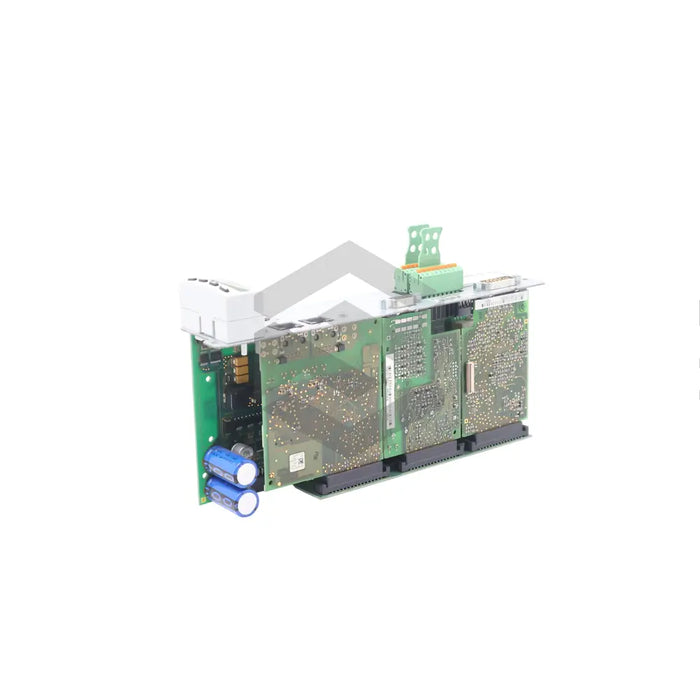

S image of CSH01.1C-S3-EN2-NNN-NNN-L1-S-NN-FW

CSH01.1C-S3-EN2-NNN-NNN-L1-S-NN-FW

by Bosch Rexroth Indramat
$4,064.34 - $7,189.85
$4,064.34
$4,064.34 - $7,189.85
$4,064.34

In Stock, Ships 1 - 3 Days

The CSH01.1C-S3-EN2-NNN-NNN-L1-S-NN-FW control section, produced by the notably reputable Bosch Rexroth Indramat, exhibits an array of remarkable features. It includes one analog input, four digital outputs and is equipped with a 6W EnDat2.1 encoder. Connection requires 0.75-1.50 mm twisted wire and a 24 V input voltage. Notably, drive controller installation should not exceed 20 instances. The L1 safety feature and adjustable cycle time make it an ideal choice for industrial environments. Boasting between seven and eleven digital inputs, along with a single RS232 serial port, it measures 49.5 mm x 103 mm x 244 mm. This model incorporates a SERCOS 3 module which facilitates communication and is crucial in various manufacturing processes, including printing and food processing. Please adhere to the manual instructions when using.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-S3-EN2-NNN-NNN-L1-S-NN-FW

Analog Input

1

Digital Outputs

4

Encoder Model

EnDat2.1 Encoder, 6W consumption

Control Panel

Standard

Control Section Connection

0.75-1.50 mm twisted wire

Input Voltage

24 V

Temperature Range

Specific Range, Manufacturer Instructions

Installation Limit

Not more than 20 times

Cycle Time

125 to 250, 62.5 to 125, and 250 to 500 microseconds intervals

Safety feature

L1 (beginning lockout)

Digital Inputs

Between 7 and 11

Serial Port

1 RS232

Product Dimensions

49.5 mm in depth, 103 mm in width, 244 mm in height

Communication Module

SERCOS 3

SERCOS Cycle Time

Minimum 250 microseconds

Usage

Printing, packaging, food processing, handling, and mounting processes.
