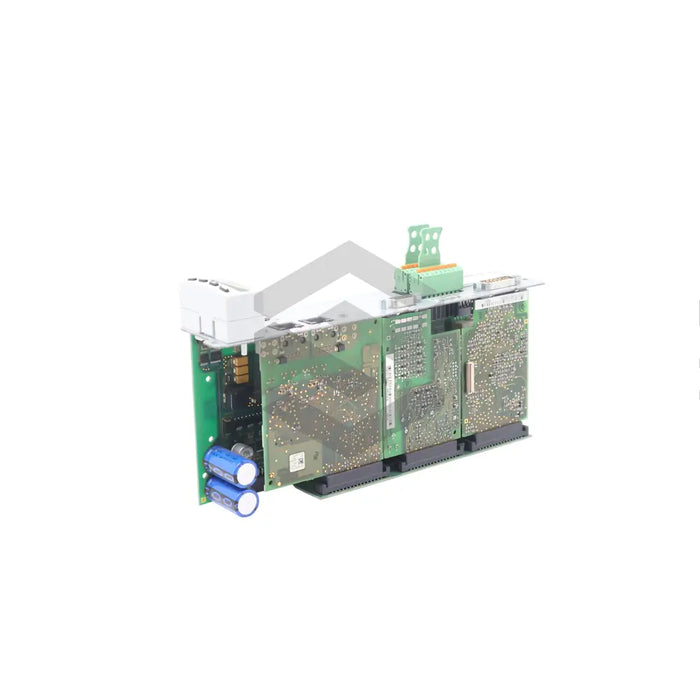

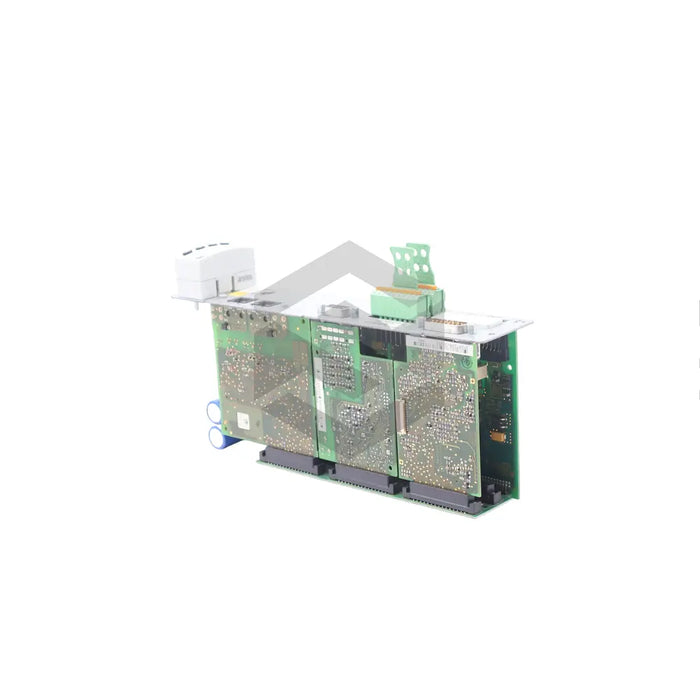

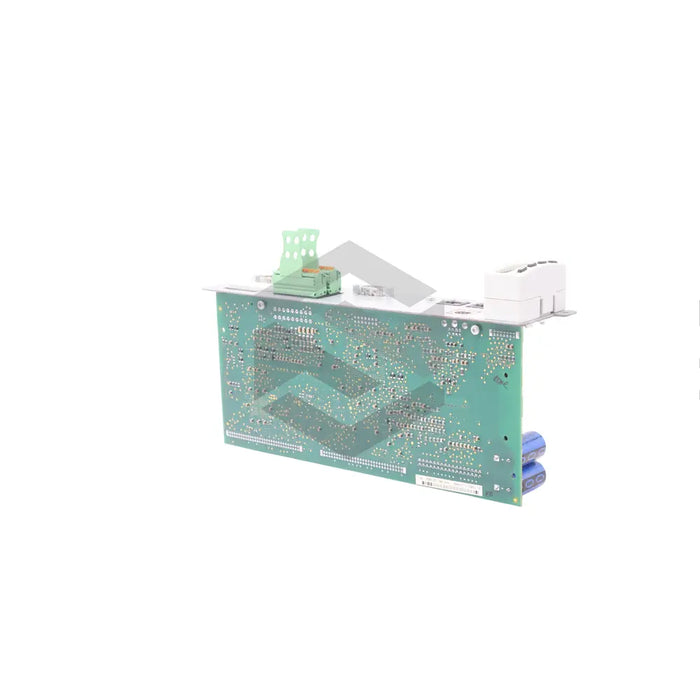

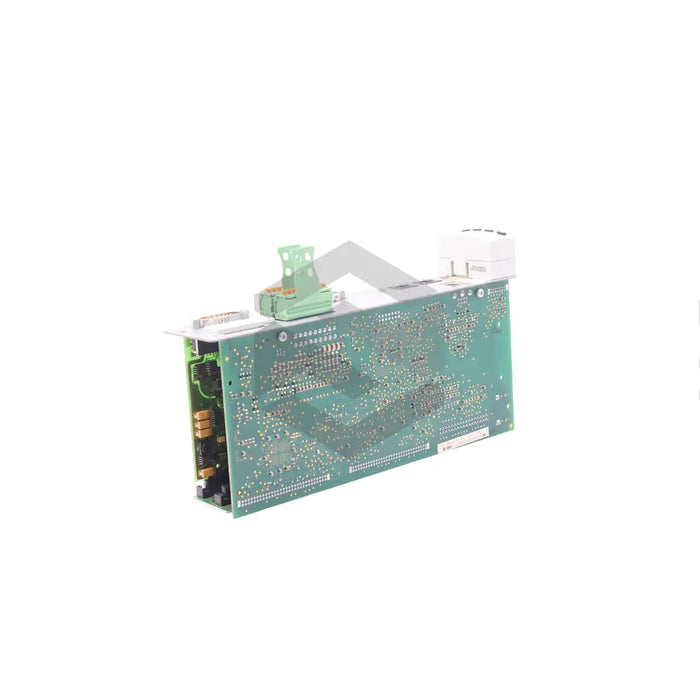

S image of CSH01.1C-S3-EN2-NNN-NNN-L2-S-NN-FW

CSH01.1C-S3-EN2-NNN-NNN-L2-S-NN-FW

by Bosch Rexroth Indramat
$4,064.34 - $7,189.85
$4,064.34
$4,064.34 - $7,189.85
$4,064.34

In Stock, Ships 1 - 3 Days

The CSH01.1C-S3-EN2-NNN-NNN-L2-S-NN-FW is a high-functioning device from Bosch Rexroth Indramat, tailored to meet the unique demands of industrial applications. This model, featuring the L2 safety option (safe torque off), also includes a SERCOS 3 communication module. Powered by a 24-volt DC source, this section only consumes 7.5 watts and can pair exclusively with corresponding components and accessories. Equipped with an EnDat2.1 encoder, the model houses eleven digital inputs, one analog input, a serial RS232 port, as well as modifiable digital and analog outputs. Key control functions include velocity control (125 to 250µs), current control (62.5 to 125µs), and position control (250 to 500µs). Its energy-efficient design features a relay contact switching frequency of 2-16Hz, a maximum pulse width of 100ms, and an inrush current of 4A. Each device undergoes thorough testing pre-distribution to ensure reliability.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-S3-EN2-NNN-NNN-L2-S-NN-FW

Safety Option

L2 (safe torque off)

Communication Module

SERCOS 3

Power Consumption

7.5 watts

Power Source

24-volt DC

Encoder Option

EnDat2.1

Encoder Power Consumption

6 W

Digital Inputs

Eleven

Analog Input

One

Serial Port

RS232

Digital Outputs

Four

Analog Outputs

Two

Velocity Control Cycle Time

125 to 250 microseconds

Current Control Cycle Time

62.5 to 125 microseconds

Position Control Cycle Time

250 and 500 microseconds

Control Panel Power

1 W

Relay Contact Numbers

One

Switching Frequency

2 to 16 Hz

Maximum Pulse Width

100 ms

Inrush Current

4 A

Firmware Requirement

Sold separately
