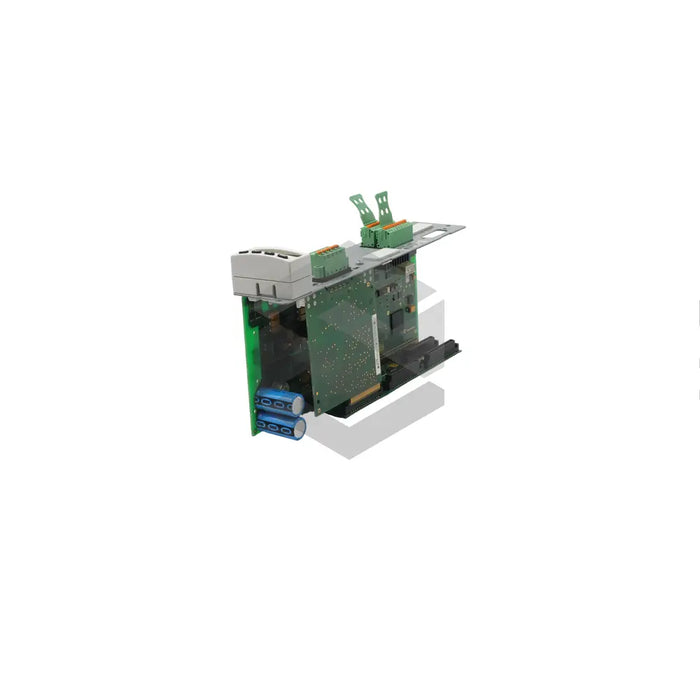

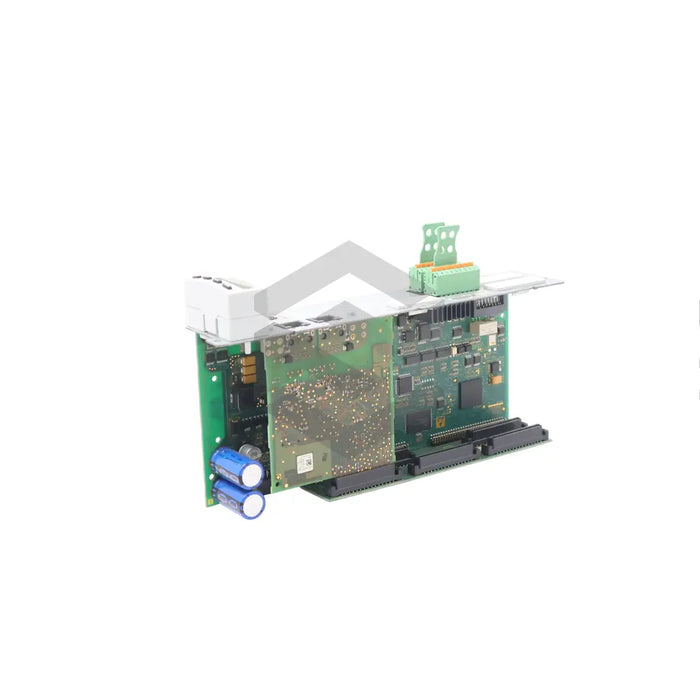

C image of CSH01.1C-S3-NNN-NNN-NNN-NN-S-NN-FW | Main (Front Left)

CSH01.1C-S3-NNN-NNN-NNN-NN-S-NN-FW

by Bosch Rexroth Indramat
$3,575.67 - $3,575.67
$3,575.67
$3,575.67 - $3,575.67
$3,575.67

In Stock, Ships 1 - 3 Days

The CSH01.1C-S3-NNN-NNN-NNN-NN-S-NN-FW, part of Bosch Rexroth's CSH series, serves as an advanced motion control unit for high-performance applications. This control section is primarily utilized in machine tools and in handling, mounting, food processing, and packaging systems. Key features include a variety of communication options and support for multiple encoders, plus a standard control panel for carrying out distinct functions like setting drive address, establishing position data reference, and initiating basic load defaults procedures. It also includes a single-line display and four keys for managing functions and simple commands. Equipped with a sercos III communication module and RS232 interface, broadcast interaction with other system components is feasible. However, it's categorized under IEC 61800‑3 as a C3 product and is suited for industrial areas only. For residential usage, adequate interference suppression methods must be incorporated.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

CSH

Product Model

CSH01.1C-S3-NNN-NNN-NNN-NN-S-NN-FW

Category

Control Section

Application

Handling/Mounting Systems, Food Processing/Packaging Machines, Machine Tools

Configurability

Yes

Control Panel Type

Standard

Key Functionalities

Drive Address Setting, Position Data Reference Establishment, Basic Load Defaults Procedure

Display Type

Single-Line Display

Size

Compact

Required Tool for Commissioning

IndraWorks Engineering Tool

Communication Module

sercos III

Interface Standard

IEE 802.3

Interface Role

Slave

Status Indicator

LEDs

Additional Interface

RS232

Primary Use

Programming, Parameterization, Diagnosis

Inrush Current

4A

Maximum Pulse Width

100ms

Operational Category

C3 (according to IEC 61800‑3)

Usage area

Industrial Areas Only

Interference Suppression Measures

Required when used in Residential Areas.
