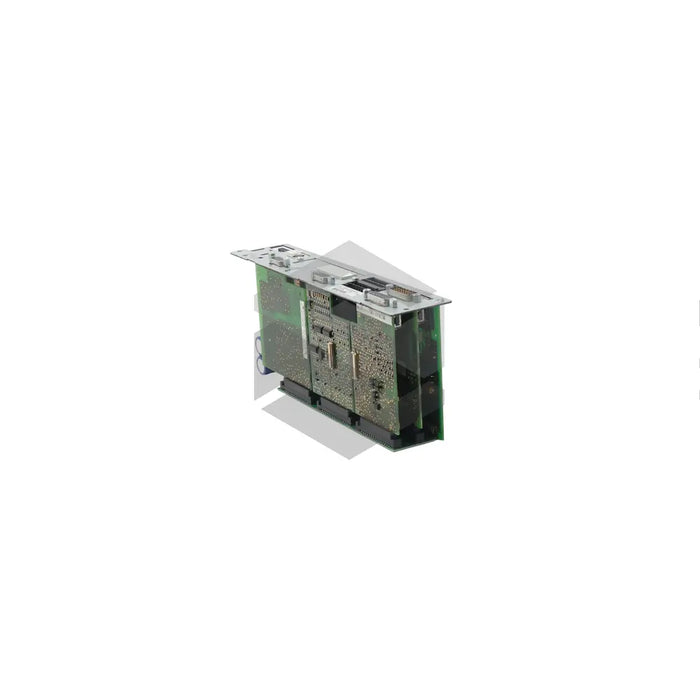

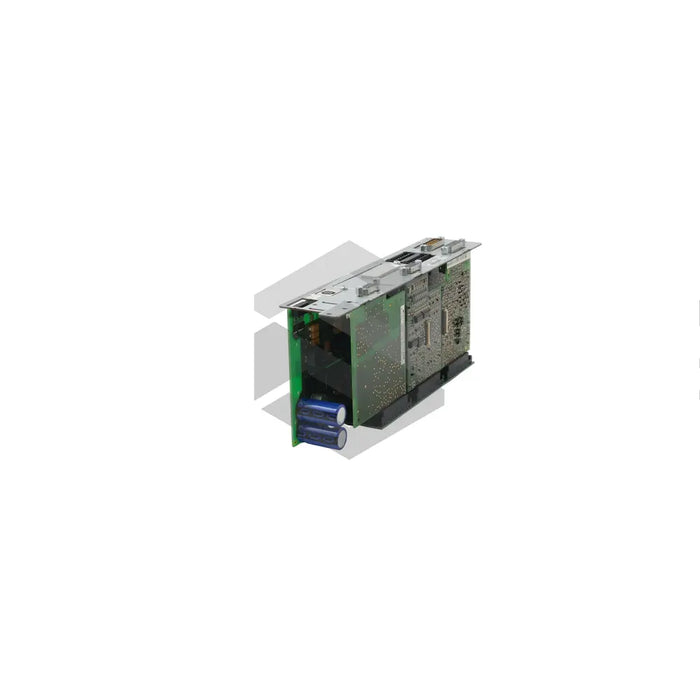

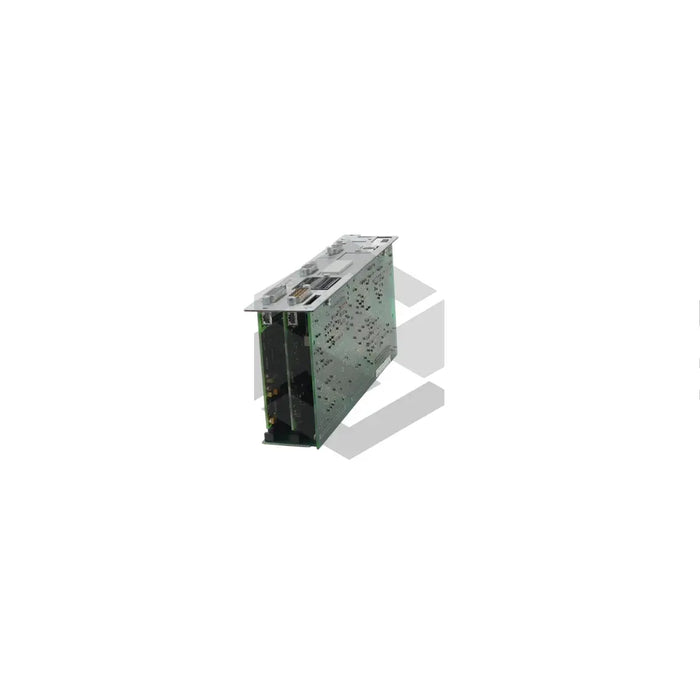

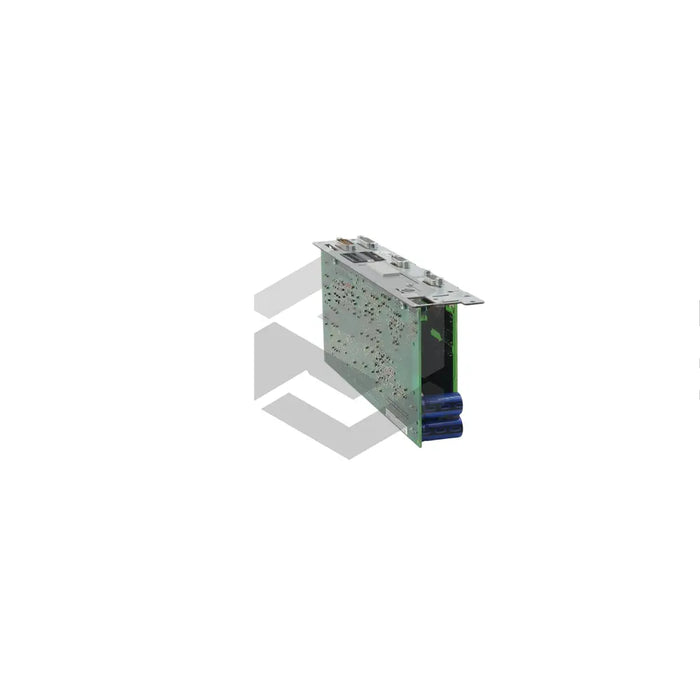

C image of CSH01.1C-SE-EN1-EN1-NNN-S1-S-NN-FW | Main (Front Left)

CSH01.1C-SE-EN1-EN1-NNN-S1-S-NN-FW

by Bosch Rexroth Indramat
$1,871.28 - $3,196.02
$1,871.28
$1,871.28 - $3,196.02
$1,871.28

In Stock, Ships 1 - 3 Days

The CSH01.1C-SE-EN1-EN1-NNN-S1-S-NN-FW is a single-axis control module from the CSH series of Bosch Rexroth's IndraDrive system. Renowned for its adaptability and robust performance, it services a range of applications, including machine tools, food packaging machines, and handling and mounting systems. Equipped with connection points featuring spring terminals and screw terminal blocks, its SERCOS master communication module utilizes fiber optic cables for seamless interaction with high-tier control units. Users can adjust the module's data rate and transmission power through the standard control panel or serial interface X2. Safety technology, reduced speed, motion direction, and safety-related stillness are also ensured by its integrated I/O module. Its two interfaces allow connections with encoders using DC 8V or AC 18.2V peak-peak supply voltages. This module caters to different switching frequencies and requires separately ordered firmware for operation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

IndraDrive CSH series

Product Model

CSH01.1C-SE-EN1-EN1-NNN-S1-S-NN-FW

Product Class

ADVANCED range

Line Design

Line 1 single-axis model Design 1

Connections

Spring terminals and screw terminal blocks

Communication Module

SERCOS

Data Rate and Transmission Power Control

Via serial interface X2 or standard control panel

Safety Module

Safety Technology I/O module

Functions

Navigating the error memory, setting the analog outputs, and establishing the position data reference

Encoder Interfaces

Two interfaces for Resolver and HSF encoder evaluation

Encoder Supply Voltage

DC 8V or AC 18.2V peak-peak

Encoders Supported

Resolvers without data memory and encoders for MHD and MKD motors

Firmware

To be ordered separately

Switching Frequencies

2kHz, 4kHz, 8kHz, 12kHz, and 16kHz

Usage Category

Product of category C3 per EC 61800‑3

Usage Area

Industrial areas only.
