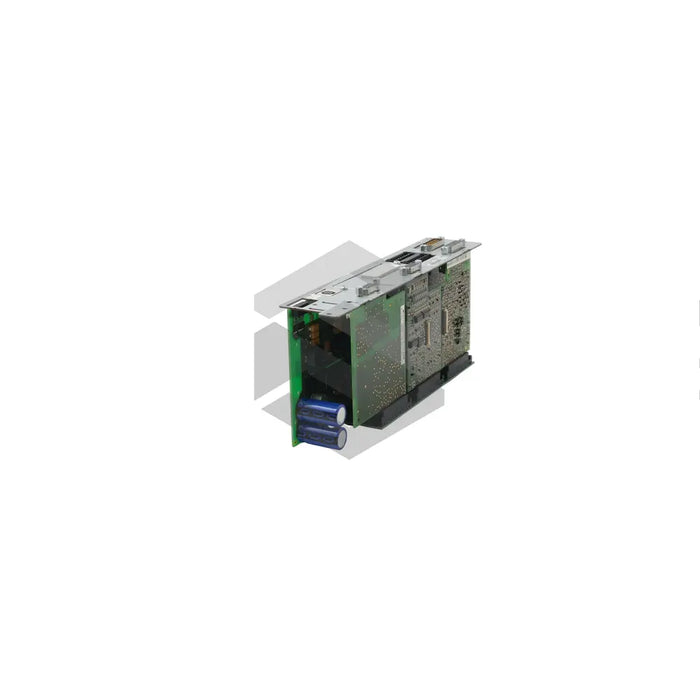

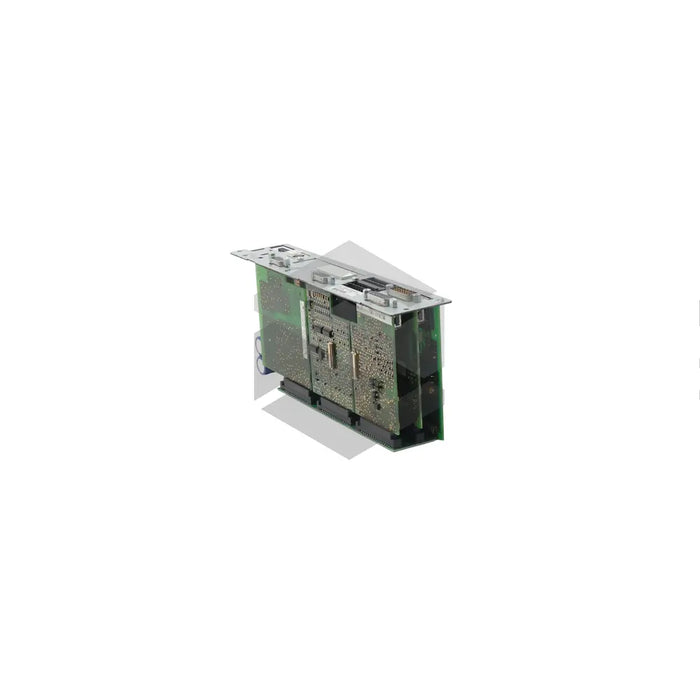

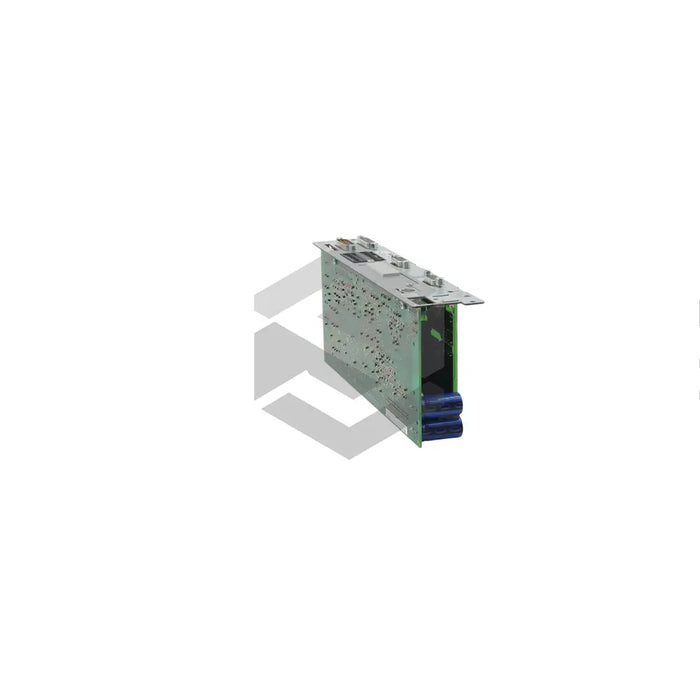

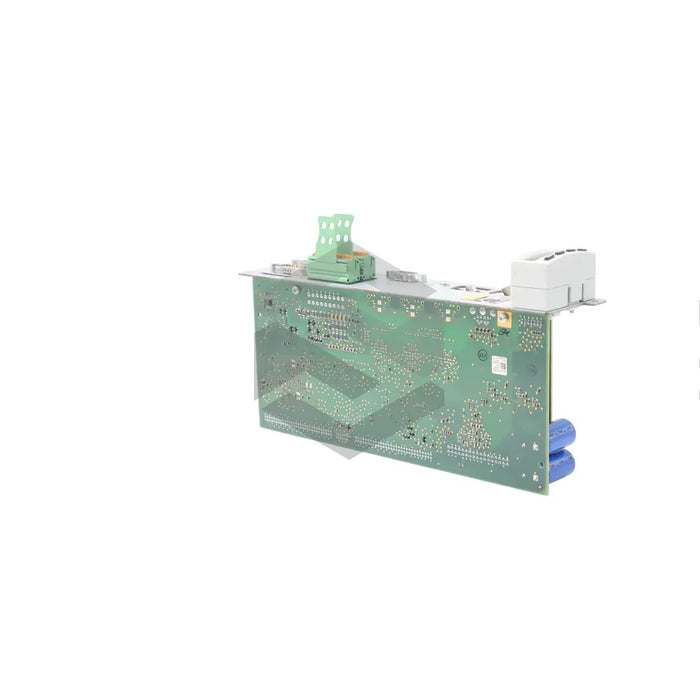

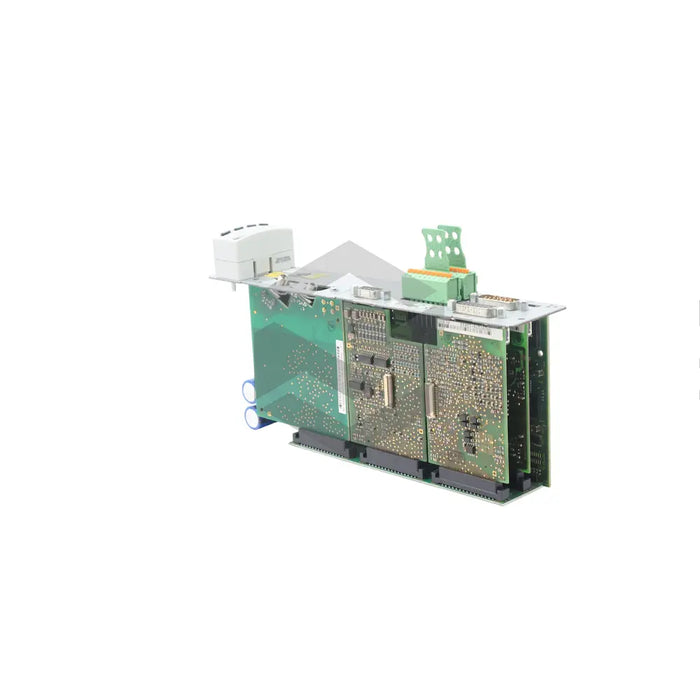

C image of CSH01.1C-SE-EN1-EN1-NNN-S2-S-NN-FW | Main (Front Left)

CSH01.1C-SE-EN1-EN1-NNN-S2-S-NN-FW

by Bosch Rexroth Indramat
$1,872.47 - $3,196.11
$1,872.47
$1,872.47 - $3,196.11
$1,872.47

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's CSH01.1C-SE-EN1-EN1-NNN-S2-S-NN-FW is a highly configurable single-axis control section in their CSH series. Remarkable for its performance and flexibility, it includes two interfaces for Resolver and HSF encoder evaluation, ensuring compatibility with both 8V DC and 18.2V AC peak-peak supply voltage encoders. Examples of compatible encoders include resolvers without data memory, encoders for MHD and MKD motors, and the Hall sensor box SHL01.1. A notable feature is the SERCOS interface, allowing sophisticated communication via fiber optic cable with other control units. It includes a standard control panel for performing various functions like setting position data reference, initiating load default procedures, and accessing error memory. Equipped with Safe Motion safety technology, it provides functions like safe door locking, diagnostic outputs, and direction. The control section allows for firmware use (ordered separately) and has spring and screw terminal blocks.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Series

CSH

Product Code

CSH01.1C-SE-EN1-EN1-NNN-S2-S-NN-FW

Section Type

Single-axis control

Control Section Range

ADVANCED

Encoder Compatibility

DC 8V or AC 18.2V peak-peak

Encoder Examples

Resolvers without data memory, Encoders for MHD and MKD motors, Hall sensor box SHL01.1

Interface Type

SERCOS

Communication Method

Fiber optic cable

Control Panel

Standard, Single-line display, Four keys

Additional Functions

Safe Motion module providing functions like safe door locking, diagnostic outputs, direction, and communication

Inrush Current

4A

Maximum Pulse Width

100ms

Firmware

Supported but must be ordered separately

Connection Points

Spring terminals and screw terminal blocks
