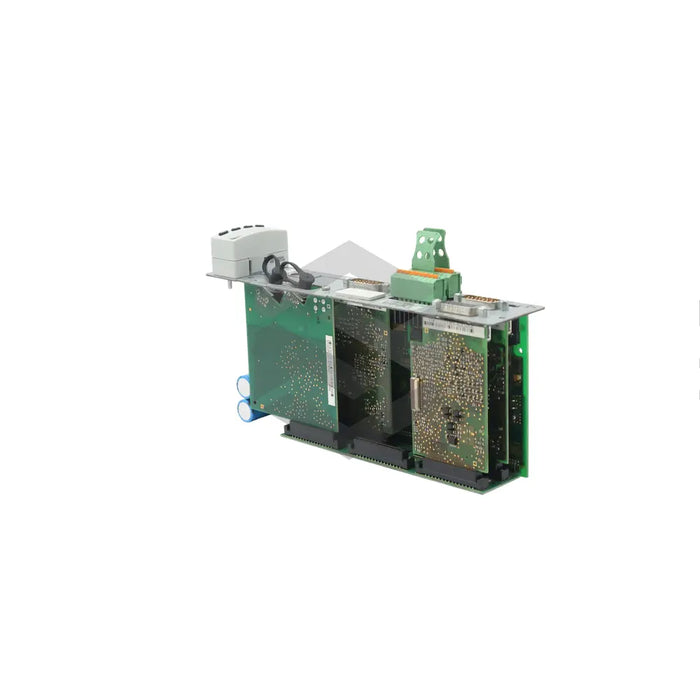

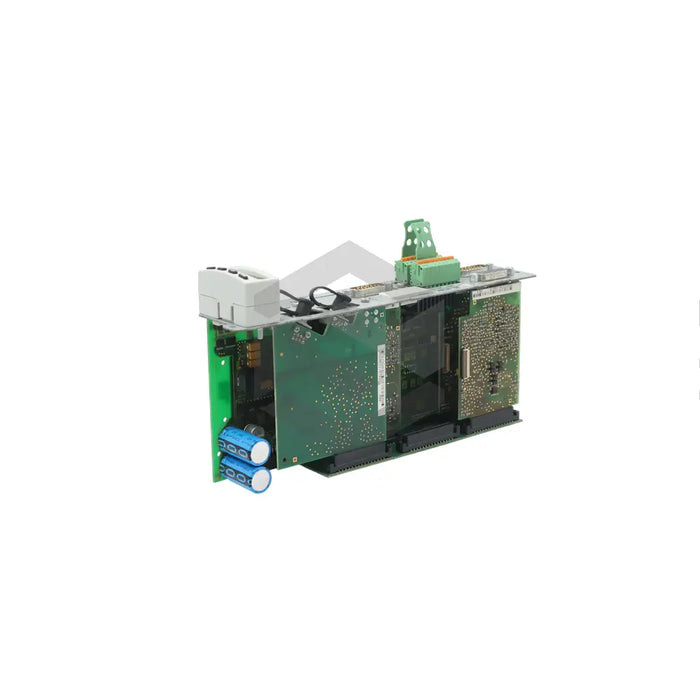

S image of CSH01.1C-SE-EN1-EN2-EN2-NN-S-NN-FW

CSH01.1C-SE-EN1-EN2-EN2-NN-S-NN-FW

by Bosch Rexroth Indramat
$4,202.07 - $5,069.97
$4,202.07
$4,202.07 - $5,069.97
$4,202.07
Bosch Rexroth Indramat's CSH01.1C-SE-EN1-EN2-EN2-NN-S-NN-FW is an advanced, high-performance control section. As part of the CSH series, it operates in industrial areas per IEC 61800‑3 category C3 standards, and is a key component of the Rexroth IndraDrive system, used in machine tools and fixture systems. Notably, the device supports a broad spectrum of encoder systems, inclusive of DC 8V or AC 18.2V peak-peak supply voltages. The device also features an interface for Resolver and HSF encoder evaluation along with two standard encoder evaluation interfaces. Communication is assured through a SERCOS interface, which facilitates fast data transfer via fiber optic cables. Users can also fine-tune data rate and transmission power through the serial interface X2 or the inbuilt control panel. Remote commissioning is possible via Bosch Rexroth's IndraWorks software. Ideal switching frequencies range from 2kHz to 16kHz.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Control Sections

Product Model

CSH01.1C-SE-EN1-EN2-EN2-NN-S-NN-FW

System

Rexroth IndraDrive

Use

Machine Tools, Handling & Mounting Systems

Range

ADVANCED

Category

C3 per IEC 61800‑3

Interfaces

Interface for Resolver & HSF Encoder Evaluation, Two Standard Encoder Evaluation Interfaces

Encoders Supported

Sin-cos Encoder (1 Vpp) with EnDat 2.1 & Sense Lines, Sin-cos Encoder (1 Vpp) with Reference Track, Resolver without Data Memory

Communication

SERCOS Interface

Data Transfer

Fiber Optic Cables

Adjustable Features

Data Rate, Transmission Power

Control Panel Functions

Setting Analog Outputs, Establishing Position Data Reference, Setting Drive Address

Remote Commissioning

Via IndraWorks Software

Connection Points

Spring Terminals and Screw Terminal Blocks

Switching Frequencies (kHz)

2, 4, 8, 12, 16.
