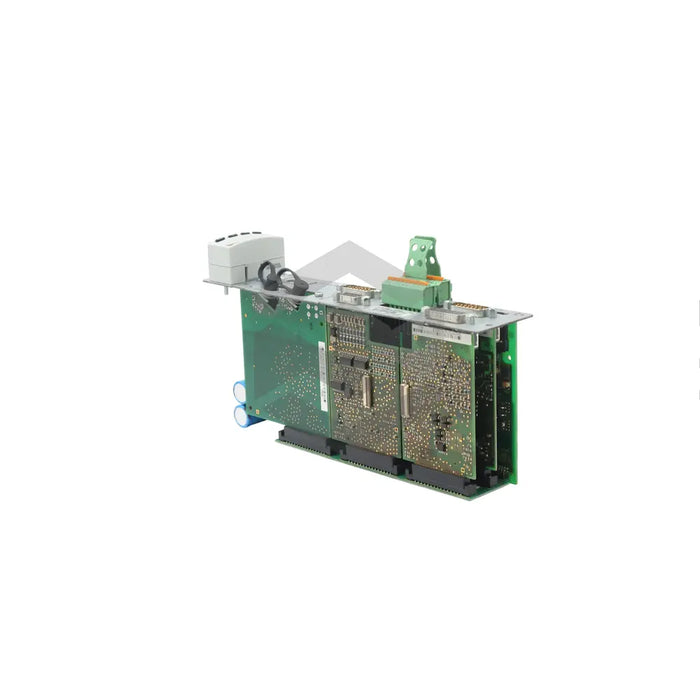

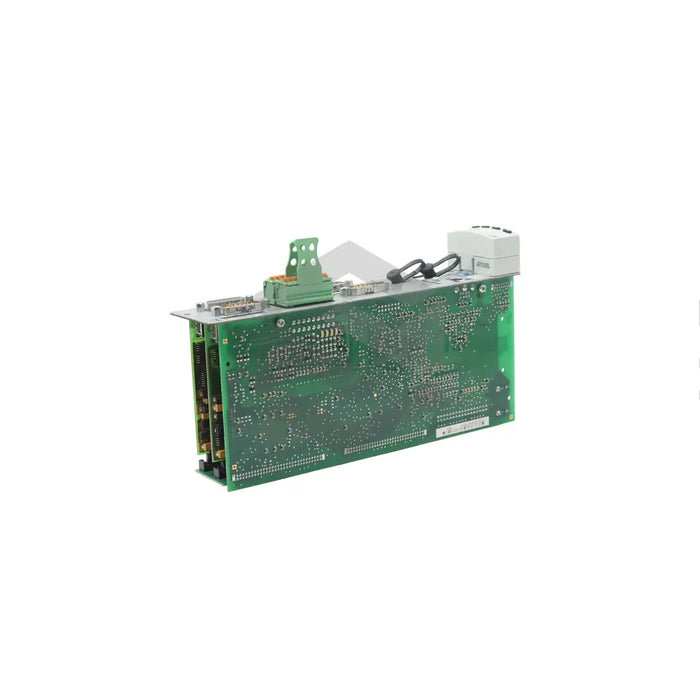

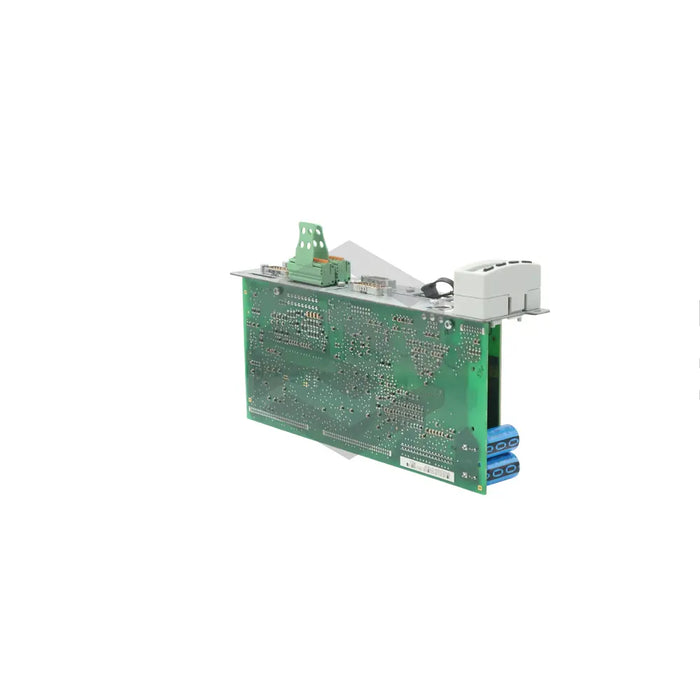

CSH01.1C-SE-EN1-EN2-EN2-S1-S-NN-FW
The CSH01.1C-SE-EN1-EN2-EN2-S1-S-NN-FW is a single-axis control section from the CSH series by Bosch Rexroth Indramat, ideal for use in machine tools, handling and mounting systems, and food packaging equipment. This control section sports a standard control panel that features four keys that assist in exploring its various functions, displayed on its single-line interface. Its communication with superior control units is facilitated through its SERCOS master communication module, using a fiber optic cable. The CSH model accommodates encoders with DC 8V, AC 18.2V peak-peak, and 5V supply voltages, linked via its interface for Resolver and HSF encoder evaluation. Safety Technology I/O is integrated for safety functions tailored to specific applications. It operates at switching frequencies of 2kHz, 4kHz, 8kHz, 12kHz, and 16kHz, with a typical inrush current of 4A and a maximum pulse width of 100ms.
30 Day Warranty
Technical Specifications
