S image of CSH01.1C-SE-EN1-EN2-MA1-S1-S-NN-FW

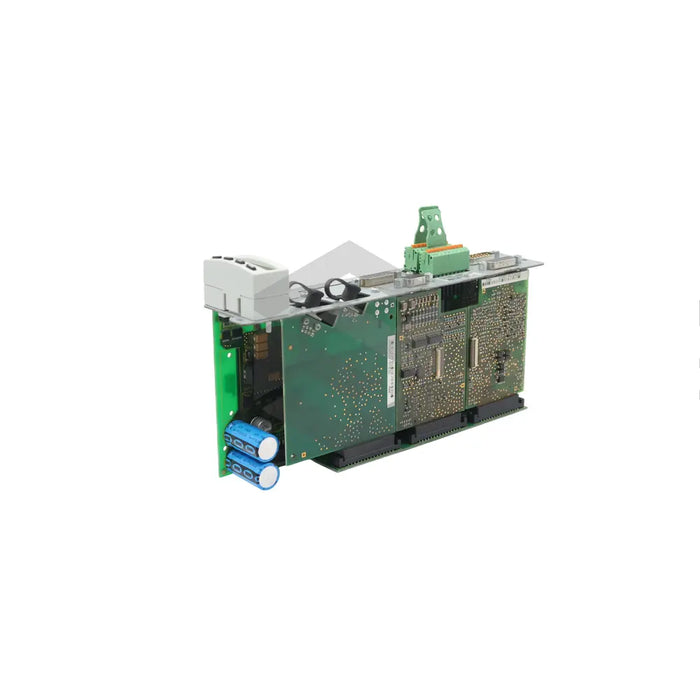

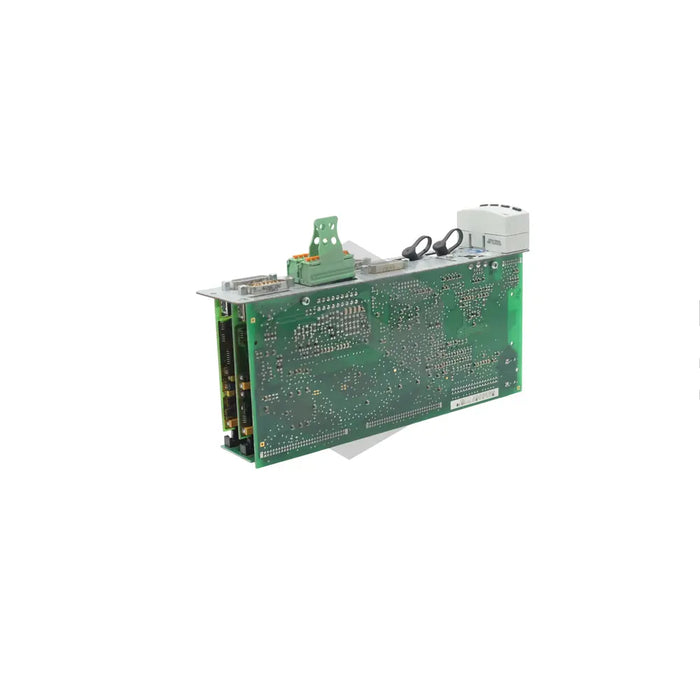

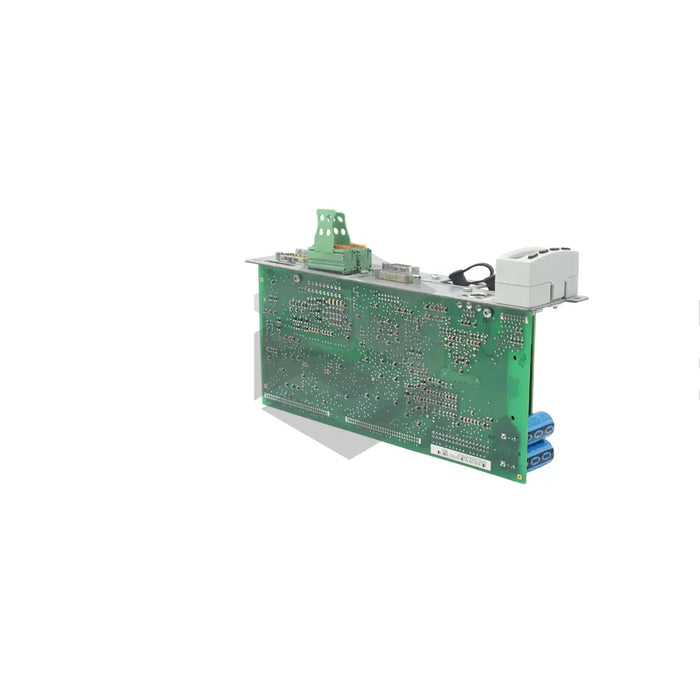

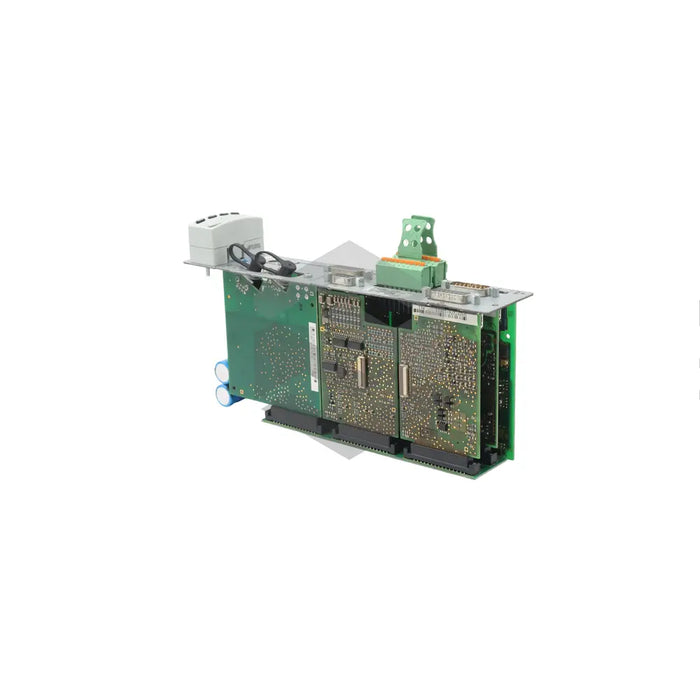

CSH01.1C-SE-EN1-EN2-MA1-S1-S-NN-FW

by Bosch Rexroth Indramat
$4,202.07 - $5,069.97
$4,202.07
$4,202.07 - $5,069.97
$4,202.07
Bosch Rexroth Indramat presents the CSH01.1C-SE-EN1-EN2-MA1-S1-S-NN-FW, which functions as a single-axis control section within the advanced IndraDrive system. This configurable device employs an interface for Resolver and HSF encoder evaluation, enabling compatibility with a variety of encoders. Encoders with supply voltages of DC 8V or AC 18.2V peak-peak as well as those with a supply voltage of 5V, such as MHD and MKD motor encoders, can be accommodated. Furthermore, it incorporates an Analog I/O Extension, expanding the number of analog channels and offering better resolution. The CSH01.1C-SE-EN1-EN2-MA1-S1-S-NN-FW has application-specific safety functions and a SERCOS master communication module, which connects the drive controller to higher-level control units. The data rate and transmission power can be established through the control section's serial interface X2 or its control panel, with a one-line display and four keys offering multi-purpose functionality.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

IndraDrive

Product Category

Drive Controllers

Type

Single-Axis Control Section

Range

ADVANCED

Encoders Supported

MHD and MKD motors, 5V-TTL square-wave encoder with reference track, Resolvers without data memory, Sin-cos encoder (1 Vpp) with EnDat 2.1 and sense lines

Encoder Supply Voltages

DC 8V or AC 18.2V peak-peak, 5V

Interfaces

Resolver, HSF encoder evaluation, Encoder evaluation, Analog I/O Extension

Safety Technology

Safety Technology I/O module (provides safety-related functions)

Communication Module

SERCOS master

Connectivity

Allows connection to higher-level control units with fiber optic cables

Control Panel

Standard control panel with single-line display and four keys for various functions.
