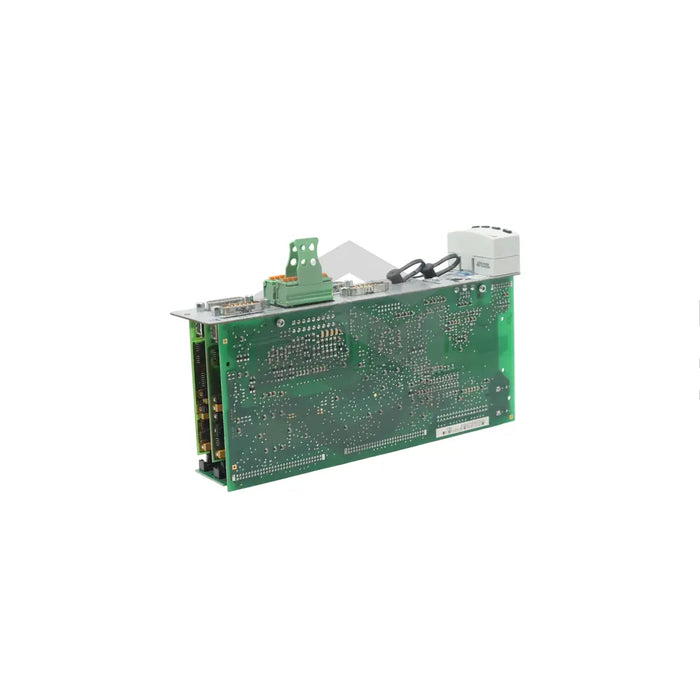

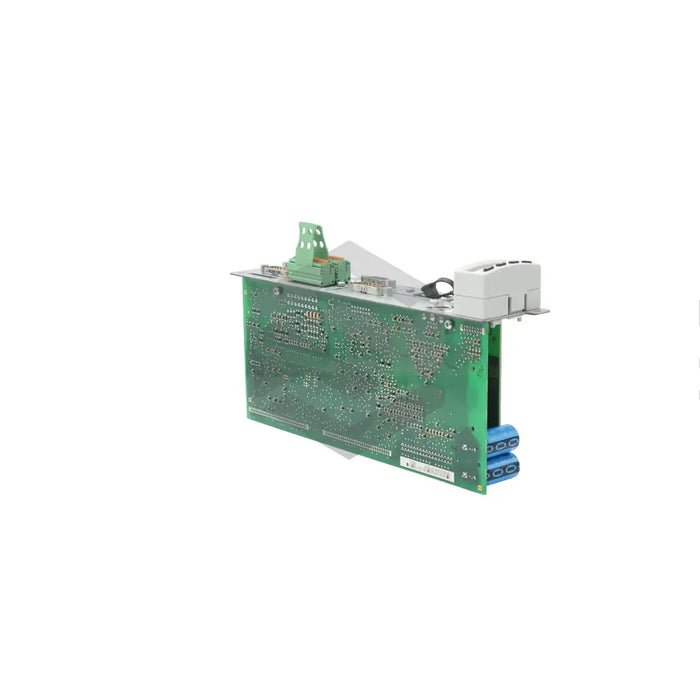

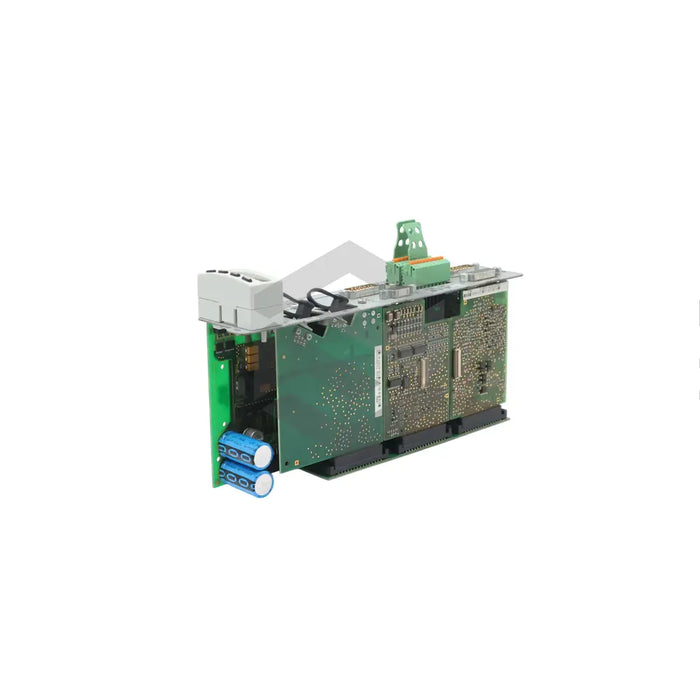

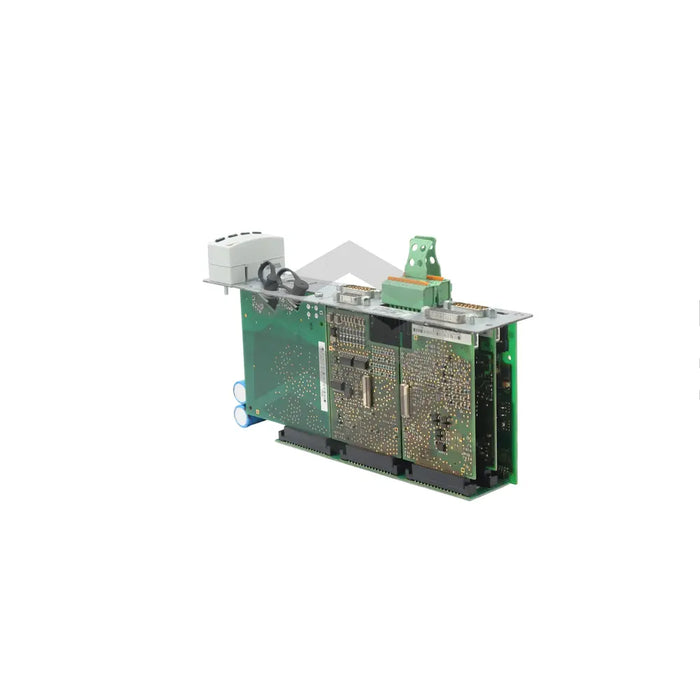

S image of CSH01.1C-SE-EN1-ENS-EN2-S2-S-NN-FW

CSH01.1C-SE-EN1-ENS-EN2-S2-S-NN-FW

by Bosch Rexroth Indramat
$4,202.07 - $5,069.97
$4,202.07
$4,202.07 - $5,069.97
$4,202.07
The CSH01.1C-SE-EN1-ENS-EN2-S2-S-NN-FW, produced by Bosch Rexroth Indramat, is a versatile, digital control unit that interfaces with IndraDrive controllers for motor control functions. Its module-friendly design incorporates three slots for optional module installation and one slot for a safety module. This layout provides adaptability to match varying operational requirements. Additionally, the unit includes installed modules for safety and three different encoder systems. The safety module is designed for "safe motion," acting as a safeguard against unexpected machine movements. The three encoder modules include an encoder HSF/RSF, suitable for DC 8 V or AC 18.2 V peak-peak systems, an encoder with an EnDat 2.1 interface for 5V systems, and an IndraDyn/Hiperface encoder module intended for 12V systems. Each module supports an array of encoder interfaces, enhancing the versatility of the unit.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Digital Control Unit

Functions

Motor control on IndraDrive controllers

Architecture Design

Slot-based for optional modules

Slots for Plug-in Modules

3

Slot for Safety Module

1

Factory-installed Modules

One safety module and three encoder modules

Safety Module Function

Supports safe motion

Encoder Module 1

Encoder HSF/RSF for encoder systems with a supply voltage of DC 8 V or AC 18.2 V peak-peak

Encoder Module 1 Support

Digital servo feedback by Rexroth, Resolver for MKD motors, Resolver without data memory, Hall sensor box SHL01.1

Encoder Module 2

Equipped with an EnDat 2.1 interface

Encoder Module 2 Voltage

5 Volts

Encoder Module 2 Support

Sin-cos encoder 1 Vpp; EnDat 2.1; with Sense lines, sin-cos encoder 1 Vpp; with reference track and 5V-TTL square-wave encoder; with reference track

Encoder Module 3

Encoder IndraDyn/Hiperface module

Encoder Module 3 Voltage

12 volts

Encoder Module 3 Support

Encoder system of IndraDyn S motors (MSK motors), sin-cos encoder 1 Vpp; HIPERFACE®, sin-cos encoder 1 Vpp; EnDat 2.1, sin-cos encoder 1 Vpp; with reference track and 5V-TTL square-wave encoder; with reference track.
