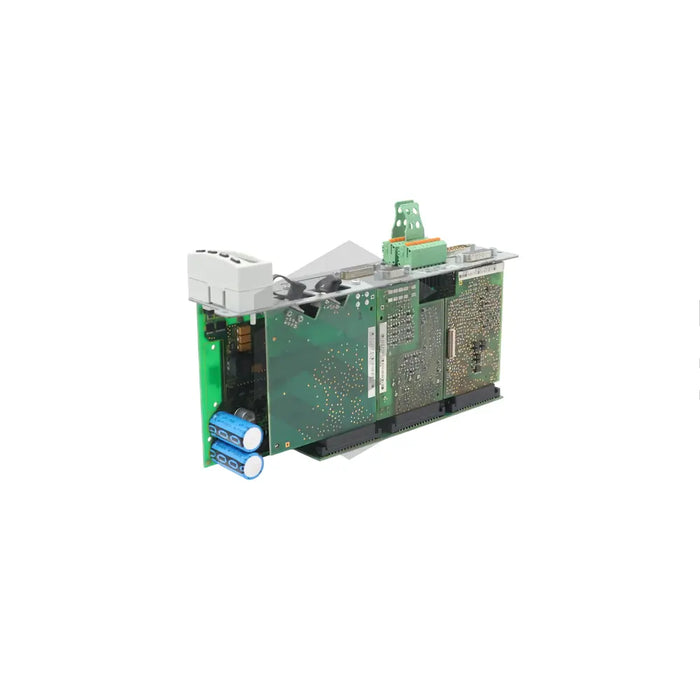

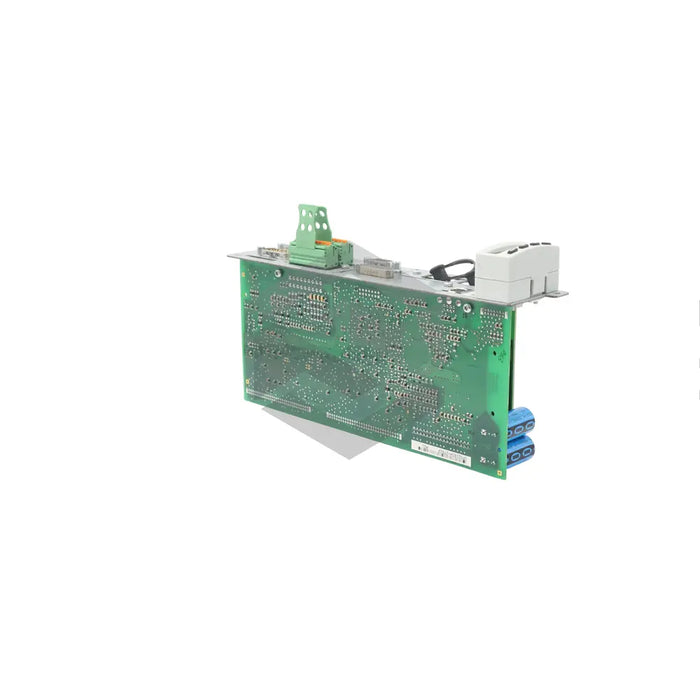

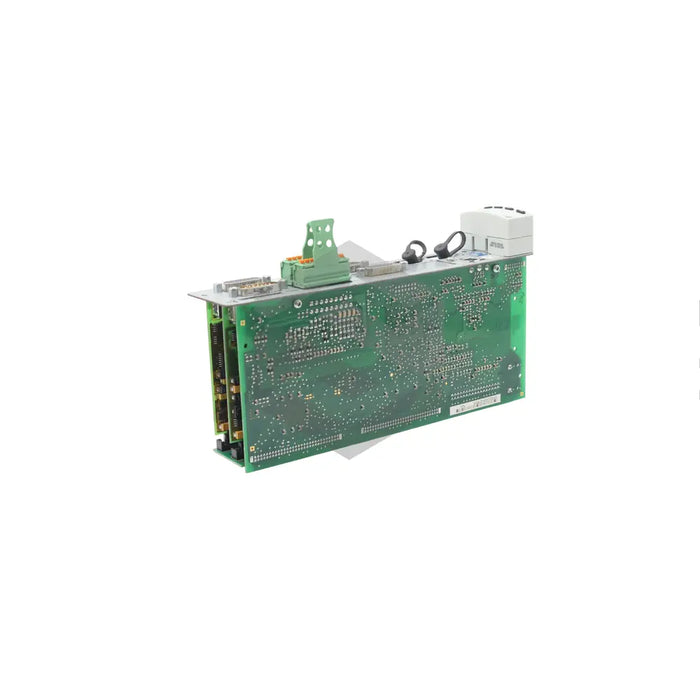

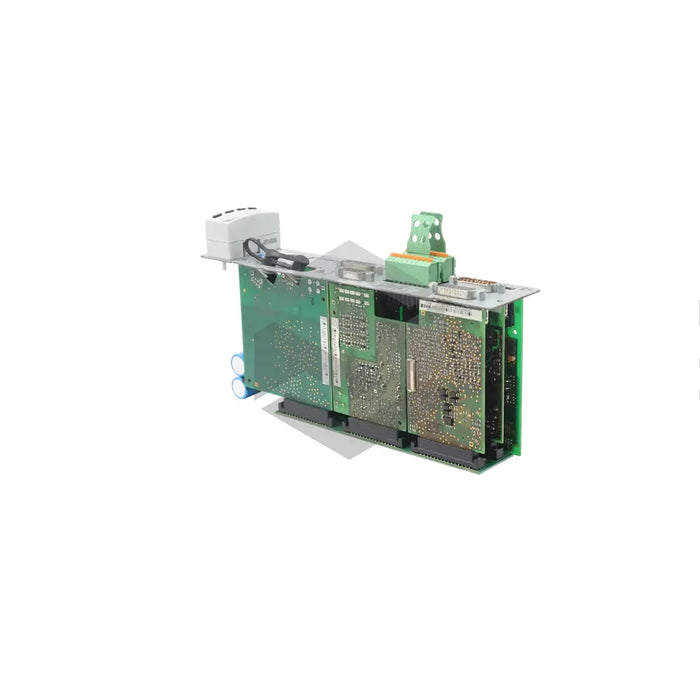

S image of CSH01.1C-SE-EN1-MEM-MA1-L1-S-NN-FW

CSH01.1C-SE-EN1-MEM-MA1-L1-S-NN-FW

by Bosch Rexroth Indramat
$4,202.07 - $5,069.97
$4,202.07
$4,202.07 - $5,069.97
$4,202.07
The Bosch Rexroth Indramat CSH01.1C-SE-EN1-MEM-MA1-L1-S-NN-FW is optimized for diverse applications, from small enterprises to global corporations. This efficient, user-friendly control unit comes with a single RS232 serial port, a 250-microsecond SERCOS cycle duration, and four digital outputs. It offers a current control range of 62.5-125 microseconds and a position control range of 250-500 microseconds. The model employs a 6-watt HSF/RSF encoder in the X4 slot and comes with separately-provided firmware. Offering adjustable PWM frequency between 2 and 16 kHz, the device also requires calibration of its four digital outputs and one analog input before application use. The device functions optimally when used with a licensed drive controller and within specific environmental constraints. Its X10 slot has an analog extension I/O, and the X8 slot houses an encoder emulator in addition to a beginning lockout safety option. Delivery by Servo Supplier ensures rapid delivery following purchase. However, performance may be affected by extreme environmental conditions such as submersion or high temperatures.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-SE-EN1-MEM-MA1-L1-S-NN-FW

Serial Port Type

RS232

SERCOS Cycle Duration

250 microseconds

Digital Outputs

4

Current Control Range

62.5 to 125 microseconds

Position Control Range

250 to 500 microseconds

Control Panel Power Consumption

1 watt

Encoder Power Consumption

6 watts

Firmware

Provided separately

PWM Frequency

Changeable between 2 and 16 kHz in 2 kHz increments

Interface Type

SERCOS interface master communication module

Drive Controller

Requires licensed drive controller for functionality

Environmental Conditions

Functional under specific environmental conditions

Analog Extension I/O Slot

X10

Safety Option

L1 (beginning lockout)

Encoder Emulator Slot

X8

Operational Circumstances

Ineffective under deviant conditions such as submerged operation, substantial temperature fluctuations, and high maximum temperatures

Delivery

Available for delivery by Servo Supplier.
