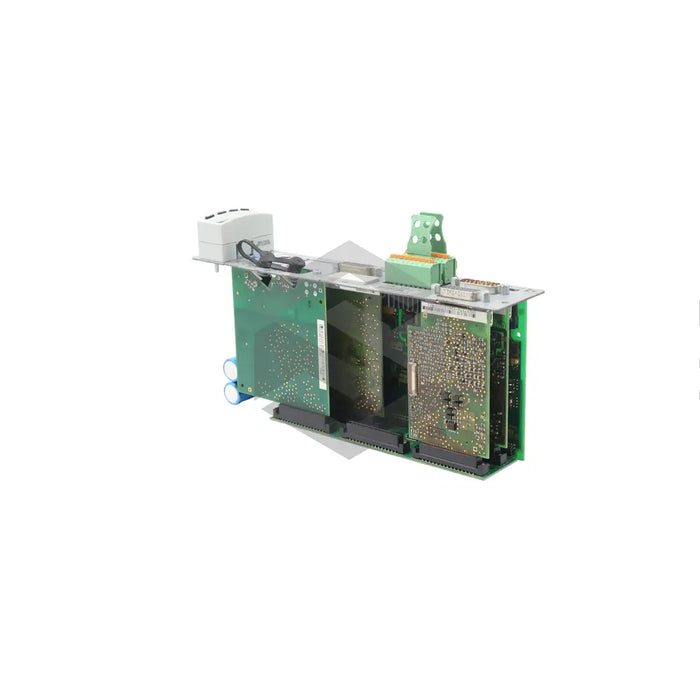

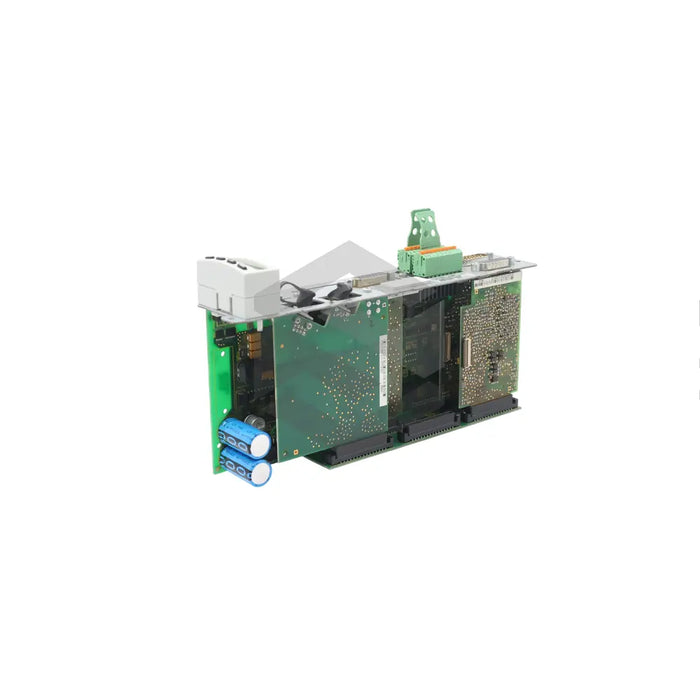

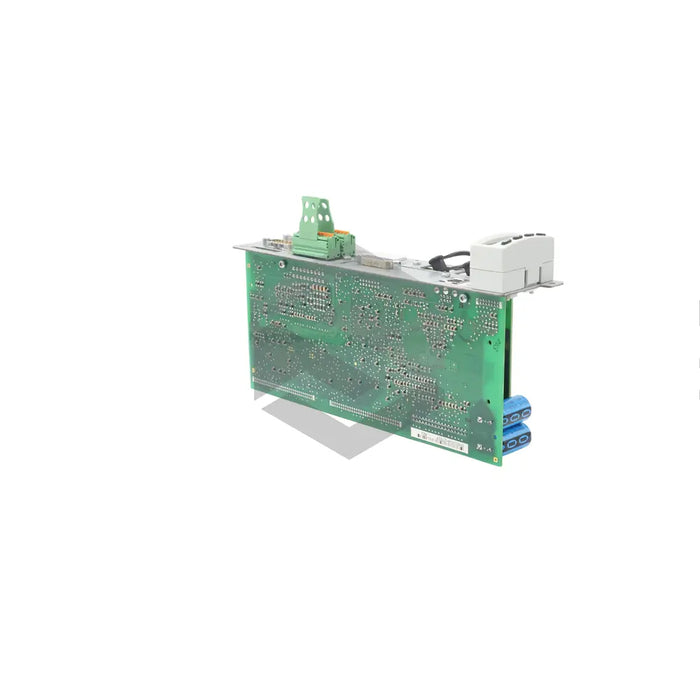

S image of CSH01.1C-SE-EN1-MEM-MA1-NN-S-NN-FW

CSH01.1C-SE-EN1-MEM-MA1-NN-S-NN-FW

by Bosch Rexroth Indramat
$4,202.07 - $5,069.97
$4,202.07
$4,202.07 - $5,069.97
$4,202.07
The Bosch Rexroth Indramat's CSH01.1C-SE-EN1-MEM-MA1-NN-S-NN-FW is a top-notch product featuring an advanced control unit. It accommodates an HSF/RSF encoder in the X4 slot and an encoder emulator in the X8 slot. The apparatus affords one analog input, an RS232 serial interface, and four digital outputs, delivering efficient control intervals for current, position, and speed. As a key part of a drive controller, the CSH01.1 control section consumes a power of 7.5 watts and employs seven to eleven digital inputs. It must be operated by trained personnel and with a machine adhering to national laws and safety standards. The model is furnished with a master SERCOS interface communication module, as well as an analog extension in the X10 slot. It is not fit for residential low-voltage public distribution mains. The model measures 103mm x 241mm x 49.5mm with a SERCOS cycle time of 250 milliseconds.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Control Sections, Drive Controllers, Frequency Controllers, Servo Drives, Servo Motors, Servo Amplifiers, Brake Choppers

Model

CSH01.1C-SE-EN1-MEM-MA1-NN-S-NN-FW

Control Panel

User-friendly High-quality

Encoder Slot X4

HSF/RSF

Encoder Slot X8

Encoder Emulator

Input Output Features

One Analog Input, One RS232 Serial Interface, Four Digital Outputs

Current Control Duration

62.5 to 125 Microseconds

Position Control Duration

250 to 500 Microseconds

Speed Control Duration

125 to 250 Microseconds

Power Consumption

7.5 Watts

Digital Inputs

7 to 11

Safety Requirement

Personnel Completed Necessary Training, Machine Complies with Safety Standards

Additional Device Feature

Two Touch Probes Among Eleven Digital Inputs, Four-amp Inrush Current In Width-modulation Model

Communication Module

Master SERCOS Interface

Additional Slot

Analog Extension in X10 Slot

Compatibility

Incompatible with Residential Low-voltage Public Distribution Mains

Dimensions

103 mm Width, 241 mm Height, 49.5 mm Depth

SERCOS Cycle Time

250 Milliseconds
