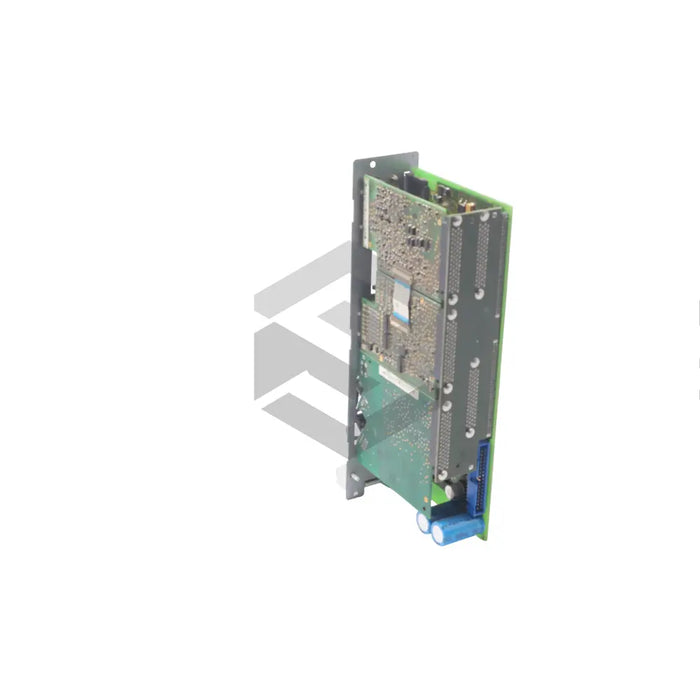

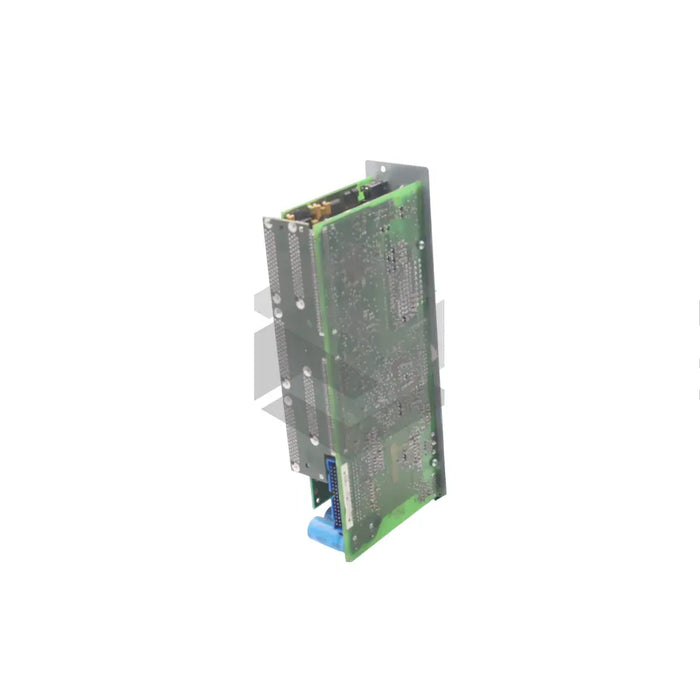

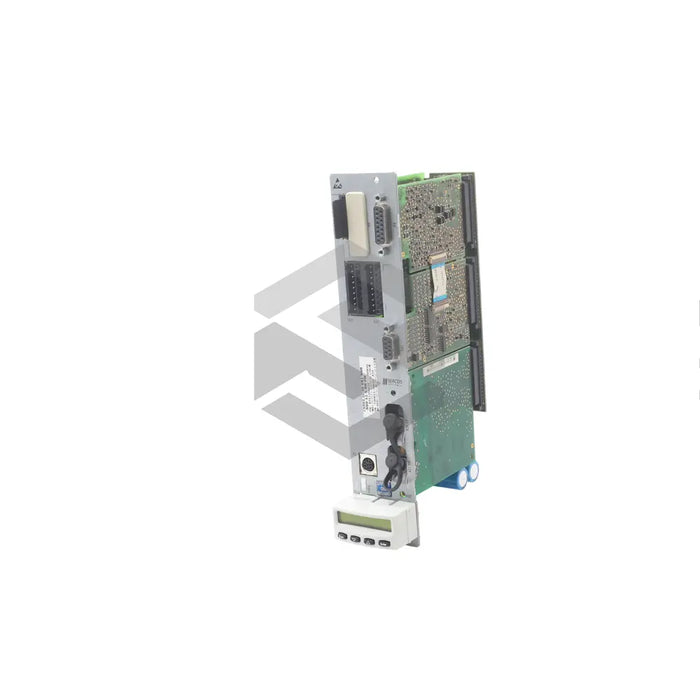

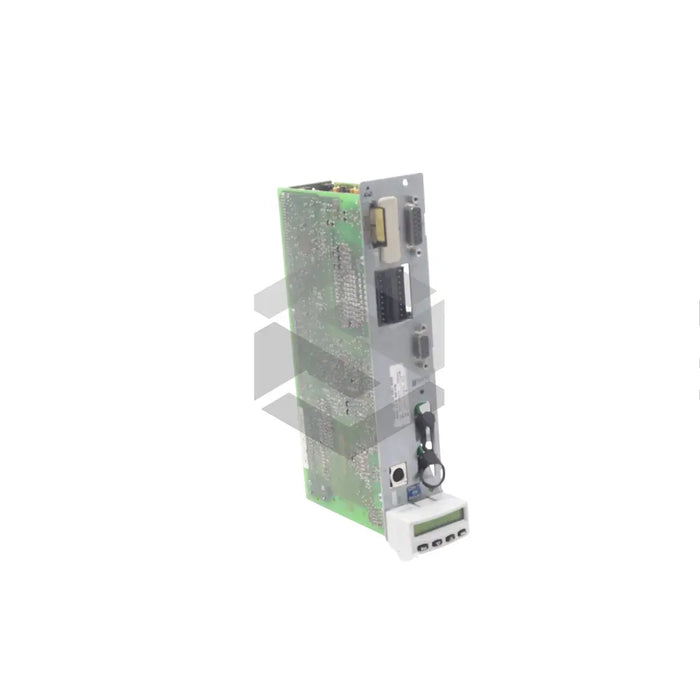

C image of CSH01.1C-SE-EN1-NNN-NNN-S1-S-NN-FW | Main (Front Left)

CSH01.1C-SE-EN1-NNN-NNN-S1-S-NN-FW

by Bosch Rexroth Indramat
$1,013.07 - $16,142.59
$1,013.07
$1,013.07 - $16,142.59
$1,013.07

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CSH01.1C-SE-EN1-NNN-NNN-S1-S-NN-FW is an advanced control section, part of the CSH series. It supports configurable requirements and has dual connection points. The H1 connection allows for a control panel interface, while the X2 connection is for a serial interface compatible with 0.25 to 0.5 sq. mm stranded wires. It offers variable digital input settings of either 3mA or 24V, with the first analog output of 5V and the second providing a current rating of 1mA. It has a SERCOS master communication interface, equipped with a distortion LED. The unit uses an HSF / RSF encoder for its first slot, while the second slot is unused. The section, which supports a S1 type safety option, is designed for use in drive controllers in food and packaging machines. Additional sensors may be required for control and monitoring.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

CSH01.1C-SE-EN1-NNN-NNN-S1-S-NN-FW Control Section

Series

CSH

Configuration Capability

Supported

H1 Connection Point

Interface for control panel

X2 Connection Point

For connection of serial interface (0.25 to 0.5sq.mm.)

Digital Inputs 1 and 2

Configurable (3mA or 24V)

Analog Output 1

5V Output Voltage

Analog Output 2

1mA Current Rating

Digital Inputs and Outputs Supply

0V or 24V

Master Communication Type

SERCOS Interface

Interface Additional Feature

Distortion LED

Maximum Tightening Torque

0.6Nm (union nut)

Design and Line Type

Design 1 and Line 1

First Optional Slot

HSF / RSF Encoder

Second Optional Slot

Non-utilized

Safety Option

S1 Type Safety technology I/O with standard control panel

Application

For motors in food and packaging machines

Additional Requirements

Extra sensors for control and monitoring.
