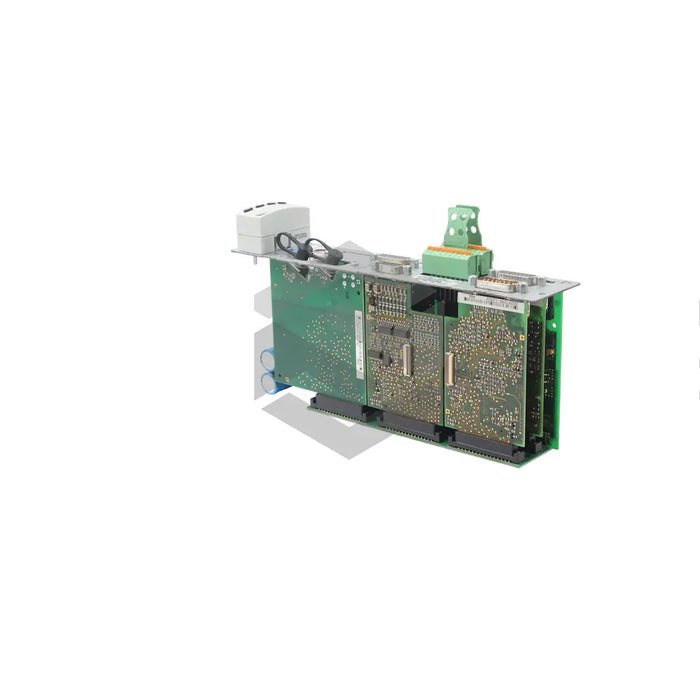

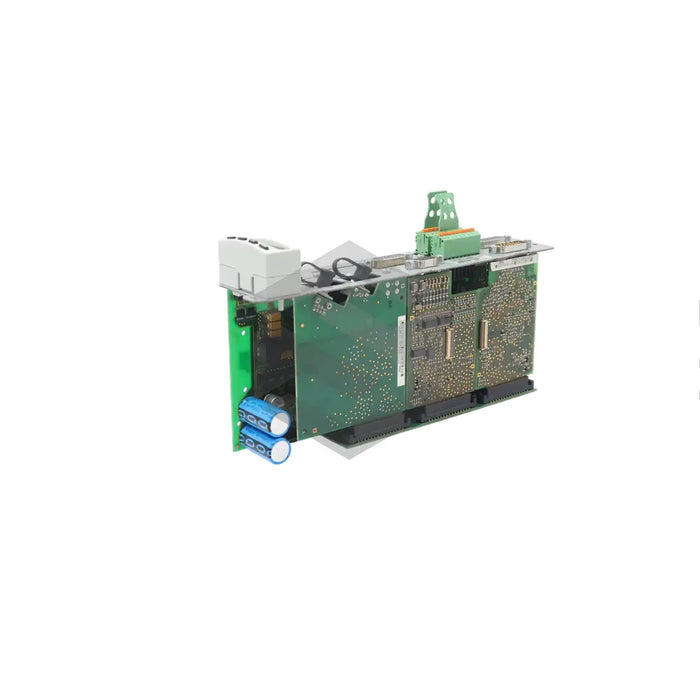

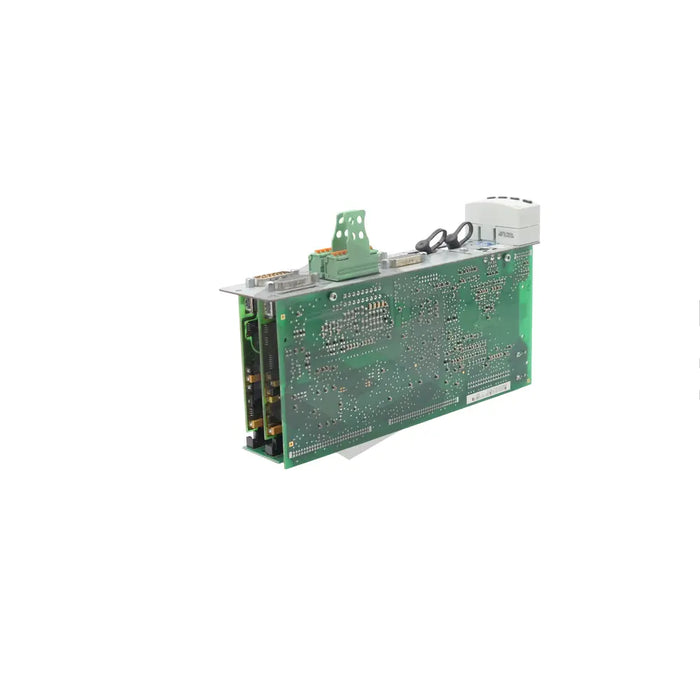

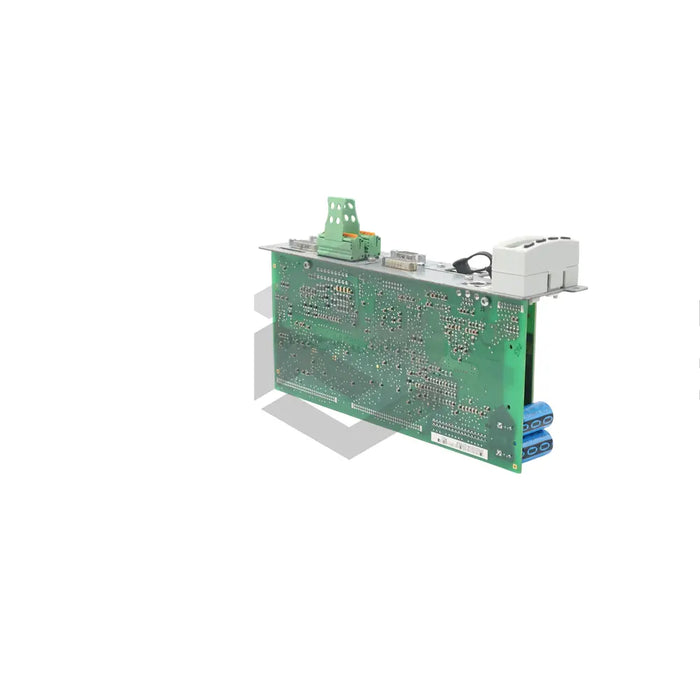

S image of CSH01.1C-SE-EN2-EN1-MA1-S1-S-NN-FW

CSH01.1C-SE-EN2-EN1-MA1-S1-S-NN-FW

by Bosch Rexroth Indramat
$4,153.29 - $5,061.96
$4,153.29
$4,153.29 - $5,061.96
$4,153.29
The CSH01.1C-SE-EN2-EN1-MA1-S1-S-NN-FW, a product of the esteemed Bosch Rexroth Indramat, is an advanced, high-performing control section recognized for its capability to cater to various manufacturing needs. It features seven to eleven digital inputs, a serial RS232 interface, one analog input, four digital outputs, and a SERCOS interface connector module. Furthermore, it offers a safety technology I/O (S1) function and adjustable cycle time parameters, allowing for speed, current, and position alteration within specific microsecond ranges. The control section is designed to work with a 6W EnDat2.1 encoder, a HSF/RSF encoder, and an Analog I/O extension, and it supports up to 20 installations of a particular type of drive controller. Additionally, this model is crafted to endure harsh industrial settings, capable of functioning in a designated temperature range and requiring an input voltage of 24V. The firmware is customizable, and the control section dimensions are 49.5mm x 103mm x 244mm.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-SE-EN2-EN1-MA1-S1-S-NN-FW

Digital Inputs

7 to 11

Interface

Serial RS232

Connecting Module

SERCOS interface

Safety Option

S1 (safety technology I/O)

Analog Inputs

1

Digital Outputs

4

Cycle Time-Speed-Current-Position

125–250, 62.5–125, 250–500 microseconds intervals

Maximum Mounting and Unmounting Times

20 times

SERCOS Version Cycle Time

Minimum 250 microseconds

X4 Slot

Equipped with 6W EnDat2.1 encoder

Firmware

Configurable (Ordered Separately)

Wire Coupling

0.75 - 1.50 mm Twisted

Input Voltage

24V

Operating Temperature


Industrial Conditions

Usages

Printing, Packaging, Food Processing, Handling, mounting system controllers

Dimensions

49.5 mm deep, 103 mm broad, 244 mm tall

X8 Slot

Equipped with HSF/RSF encoder

X10 Slot

Includes an Analog I/O extension.
