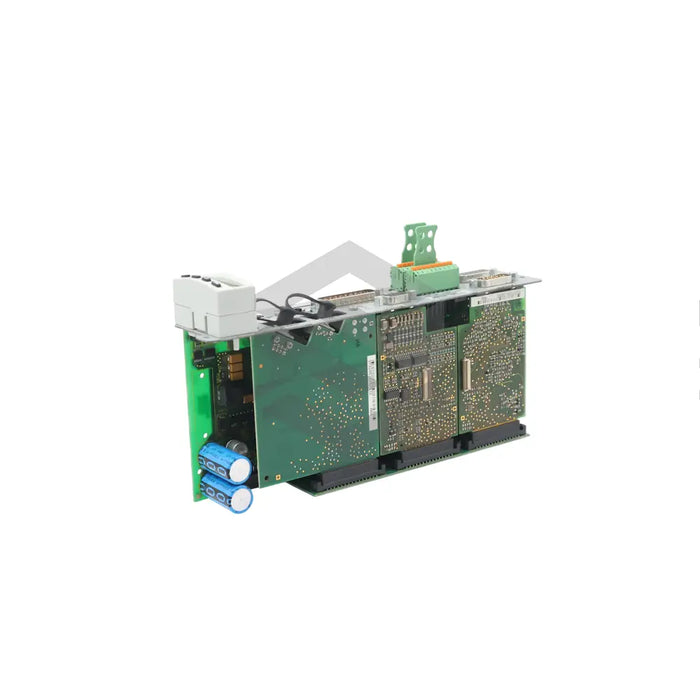

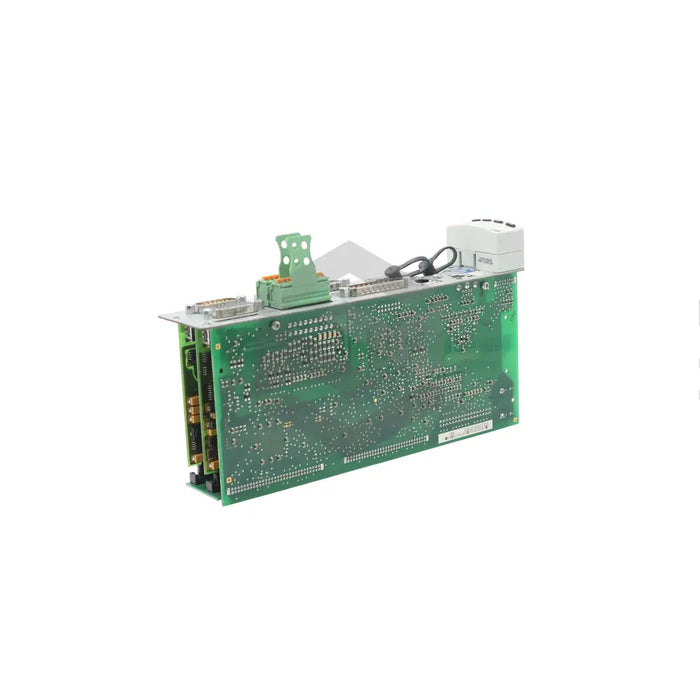

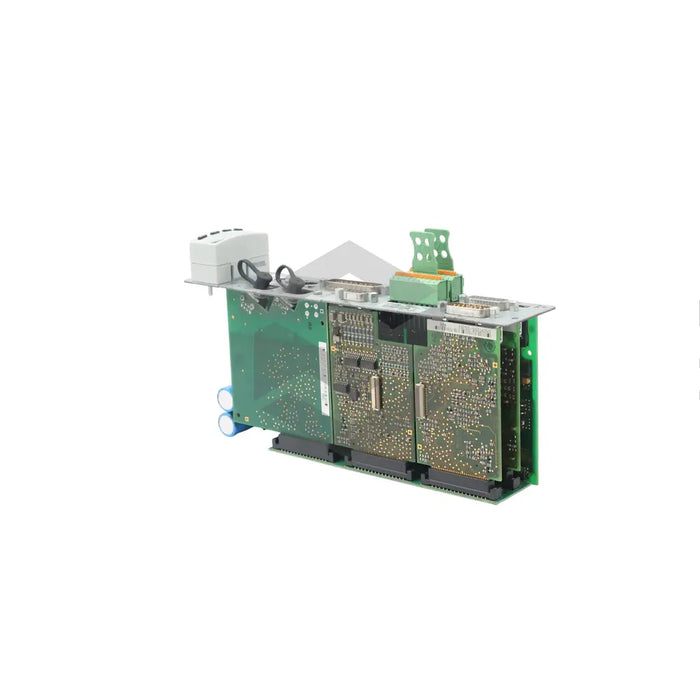

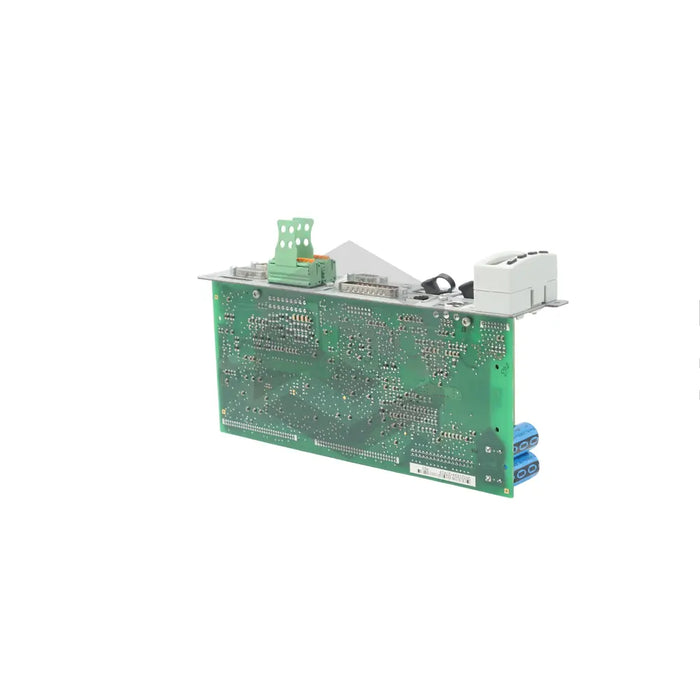

S image of CSH01.1C-SE-EN2-EN1-MD2-S1-S-NN-FW

CSH01.1C-SE-EN2-EN1-MD2-S1-S-NN-FW

by Bosch Rexroth Indramat
$4,153.29 - $5,061.96
$4,153.29
$4,153.29 - $5,061.96
$4,153.29
The CSH01.1C-SE-EN2-EN1-MD2-S1-S-NN-FW is a state-of-the-art control section created by Bosch Rexroth Indramat. This piece provides extensive capabilities for applications requiring motorized solutions. Featuring a singular relay contact that switches at frequencies between 2 to 16 Hz, the model is particularly energy efficient with a maximum pulse width of 100 ms and an inrush current of 4 A. Notable features include the EnDat2.1 encoder in the X4 slot, a digital extension I/O with an SSI encoder interface in the X10 slot, one analog input, and an RS232 serial interface. All four digital outputs and two analog outputs can be modified as needed. The CSH01.1C-SE-EN2-EN1-MD2-S1-S-NN-FW model comes with an S1 safety option and operates on a 24-volt DC supply. The device is equipped with a SERCOS interface and a 1-watt control panel, ensuring user-friendliness without compromising on energy efficiency. The product comes with a standard replacement guarantee in case of default or failure.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-SE-EN2-EN1-MD2-S1-S-NN-FW

Relay Contact

Single

Switching Frequency

2 to 16 Hz

X4 Slot

EnDat2.1 encoder

X4 Slot Power Consumption

6 W

X10 Slot

Digital extension I/O with an SSI encoder interface

Analog Inputs

Single

RS232 Serial Interface

Present

Digital Outputs

Four, modifiable

Analog Outputs

Two, modifiable

Maximum Pulse Width

100 ms

Inrush Current

4 A

Velocity Control Cycle Time

125 to 250 microseconds

Current Control Cycle Time

62.5 to 125 microseconds

Position Control Cycle Time

250 to 500 microseconds

Safety Option

S1

Power Source

24-volt DC

Connection Module

SERCOS interface

X8 Slot

HSF/RSF encoder

X8 Slot Power Consumption

6 watts

Control Panel Power Consumption

1 watt

Testing

Pre-supply extensive testing
