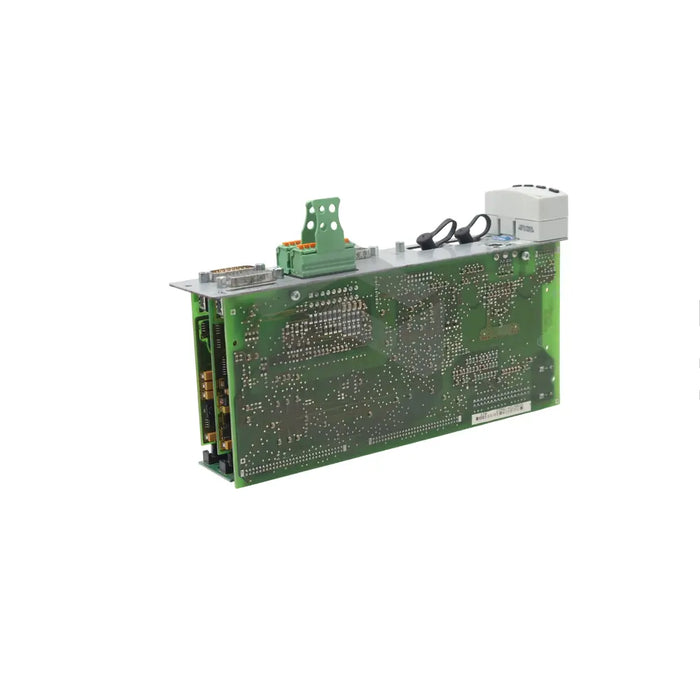

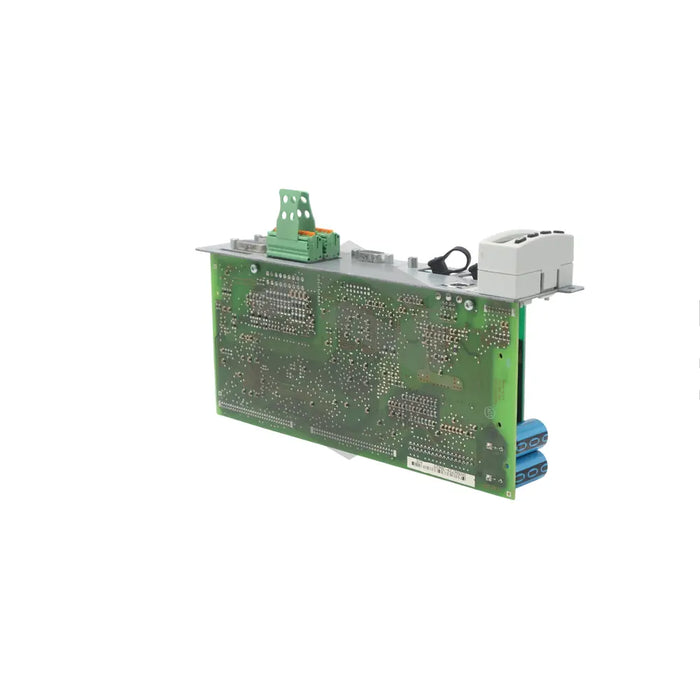

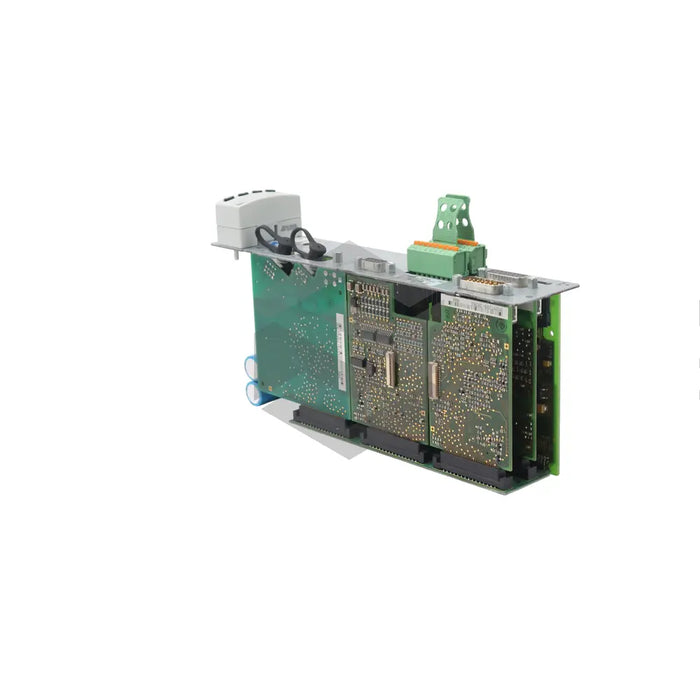

S image of CSH01.1C-SE-EN2-EN1-NNN-S2-S-NN-FW

CSH01.1C-SE-EN2-EN1-NNN-S2-S-NN-FW

by Bosch Rexroth Indramat
$1,872.47 - $3,196.11
$1,872.47
$1,872.47 - $3,196.11
$1,872.47

In Stock, Ships 1 - 3 Days

The CSH01.1C-SE-EN2-EN1-NNN-S2-S-NN-FW, a product of Bosch Rexroth Indramat, is an advanced automation solution that comes with robust features like optimized control sections, drive controllers, premium servo motors, drives, and brakes among others. Equipped with an energy-saving, user-friendly control panel, it uses only 1 watt while the integral unit uses 7.5 watts. The device accommodates an HSF/RSF encoder in slot X8 and has an empty X10 slot. It provides one analog input, an RS232 serial interface, and four digital outputs. It also has an adjustable control duration. This model only functions with machinery that is compliant with all relevant safety and national laws and requires certified personnel for operation. Equipped with a master SERCOS interface communication module and an EnDat2.1, it is not suitable for low-voltage residential distribution mains due to potential high-frequency interference. It's compactly built with dimensions of 103mm, 241mm, and 49.5mm in width, height, and depth respectively.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-SE-EN2-EN1-NNN-S2-S-NN-FW

Control panel usage

1 watt

X8 slot usage

HSF/RSF encoder

X10 slot

empty

Device Interfaces

One analog input, one RS232 serial interface, four digital outputs

Current control duration

between 62.5 and 125 microseconds

Position control duration

between 250 and 500 microseconds

Speed control duration

between 125 and 250 microseconds

Power usage

7.5 watts

Digital inputs

seven to eleven

Digital input types

Two of eleven are touch probes

Inrush current

4 amps

Communication module

Master SERCOS interface

Additional module

EnDat2.1 in the X4 slot

Compatibility

Not compatible with low-voltage residential public distribution mains

Dimensions

Width: 103 mm, Height: 241 mm, Depth: 49.5 mm

SERCOS cycle time

250 ms.
