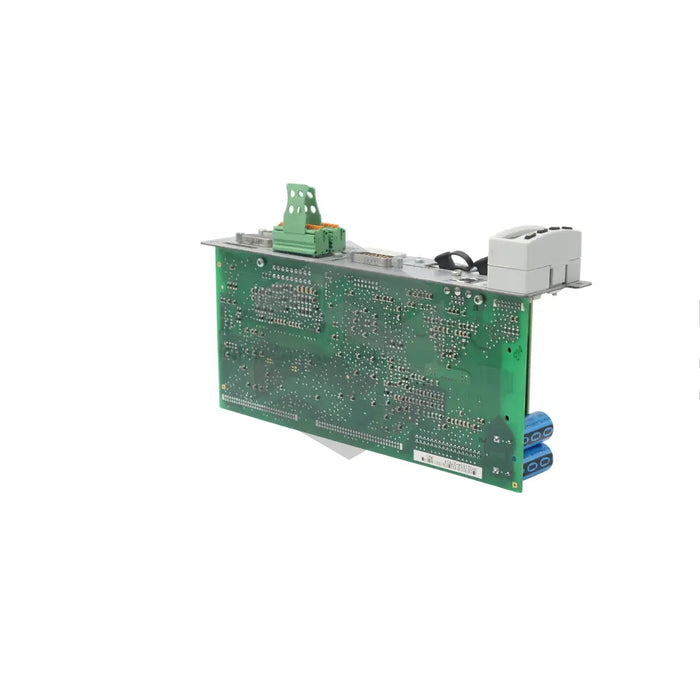

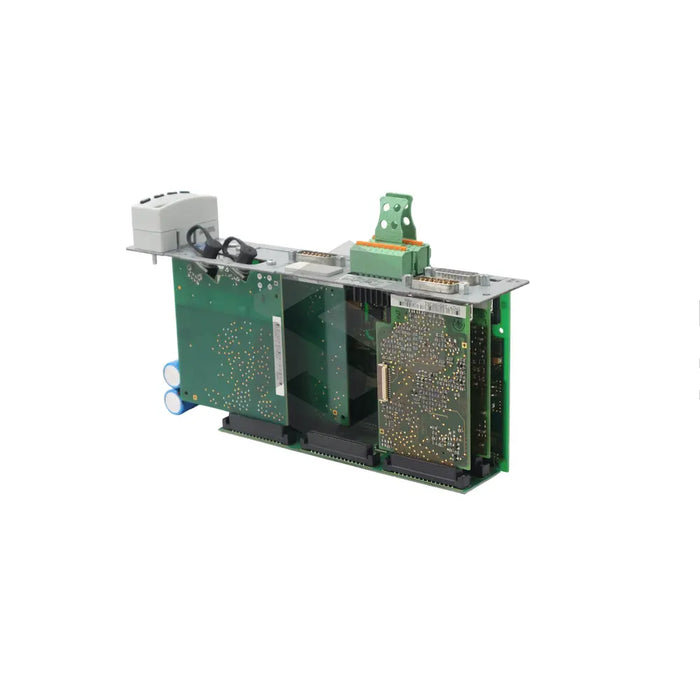

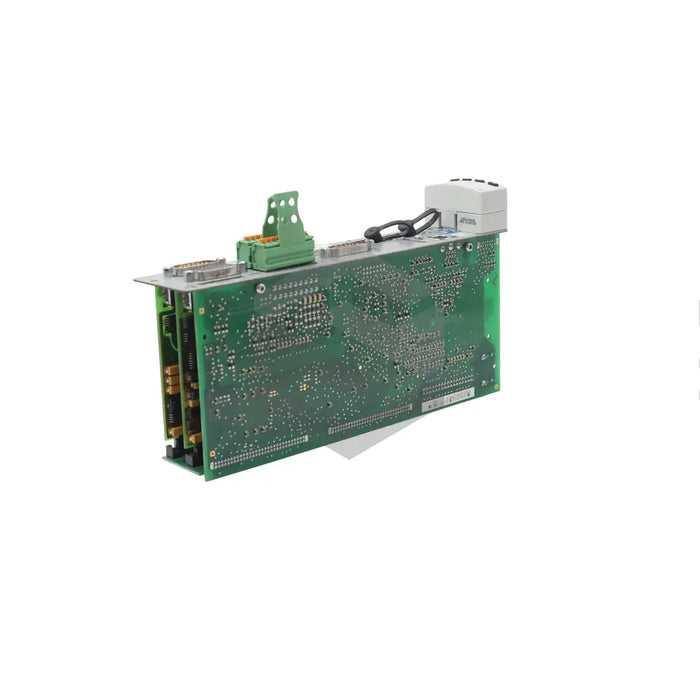

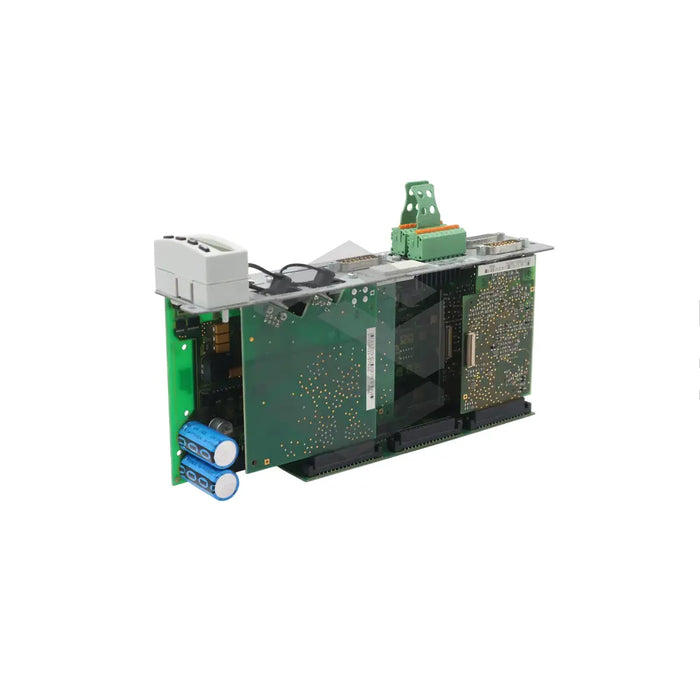

S image of CSH01.1C-SE-EN2-EN2-MEM-NN-S-NN-FW

CSH01.1C-SE-EN2-EN2-MEM-NN-S-NN-FW

by Bosch Rexroth Indramat
$4,153.29 - $5,061.96
$4,153.29
$4,153.29 - $5,061.96
$4,153.29
The Bosch Rexroth Indramat's CSH01.1C-SE-EN2-EN2-MEM-NN-S-NN-FW is a configurable single-axis control section for drive controllers in various industrial applications, including machine tools and food packaging machines. It consists of two main components: a power section and a control section, ensuring efficient operation. It features two compatible encoder evaluation interfaces with a voltage rating of 5V. Additionally, it includes a SERCOS master communication module for information exchange with high-level control units through a fiber optic cable. Notably, the mounting and dismounting to the drive controller are simple and convenient but must not exceed 20 times. It also has an encoder emulation interface, a standard control panel for adjusting transmission power and setting drive address, and supports firmware functionality. This model can operate at switching frequencies ranging from 2kHz to 16kHz. All connection points are equipped with spring terminals and screw terminal blocks. The maximum installation height is 1,000m.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-SE-EN2-EN2-MEM-NN-S-NN-FW

Product Type

Configurable CSH Control Section

Components

Power Section, Control Section

Usage

Machine Tools, Handling And Mounting Systems, Food Packaging Machines

Features

Encoder Evaluation Interfaces (2)

Compatible Encoders

5V-TTL Square-Wave Encoder With Reference Track, Sin-Cos Encoder (1 Vpp) With EnDat 2.1 And Sense Lines, And The Sin-Cos Encoder (1 Vpp) With Reference Track

Communication module

SERCOS Master Communication Module

Encoder Emulation Interface

Absolute Value And Incremental Encoder Signals

Control Panel

Standard Control Panel

Functions

Setting The Transmission Power And Field Bus Transmission Rate Of The SERCOS Module, Setting The Drive Address, Navigating The Error Memory, And Initiating The Basic Load Defaults Procedure

Firmware

Order Separately

Switching Frequencies

2kHz, 4kHz, 8kHz, 12kHz, and 16kHz

Inrush Current

4A

Connections

Spring Terminals and Screw Terminal Blocks

Installation Height(Max)

1,000m.
