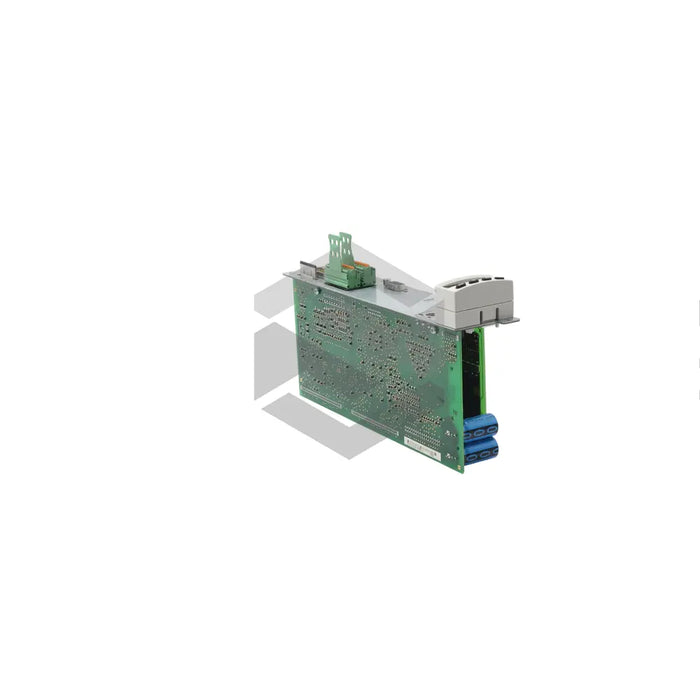

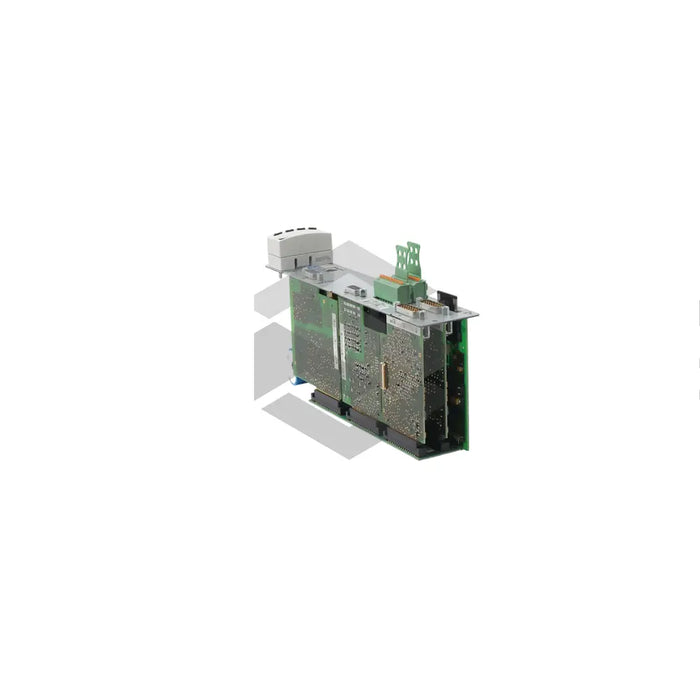

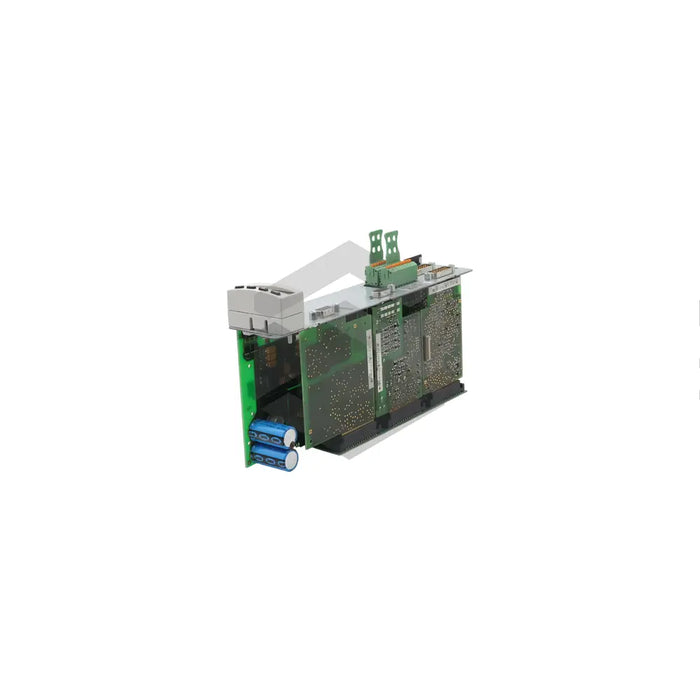

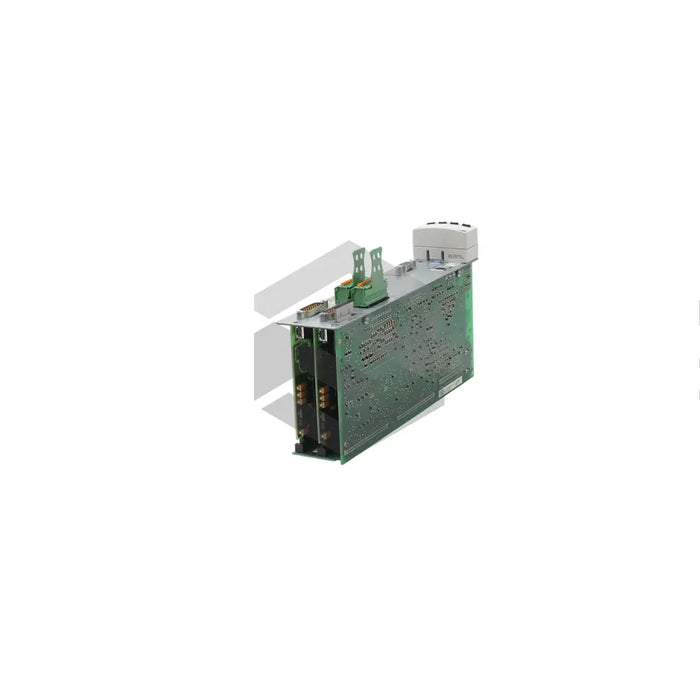

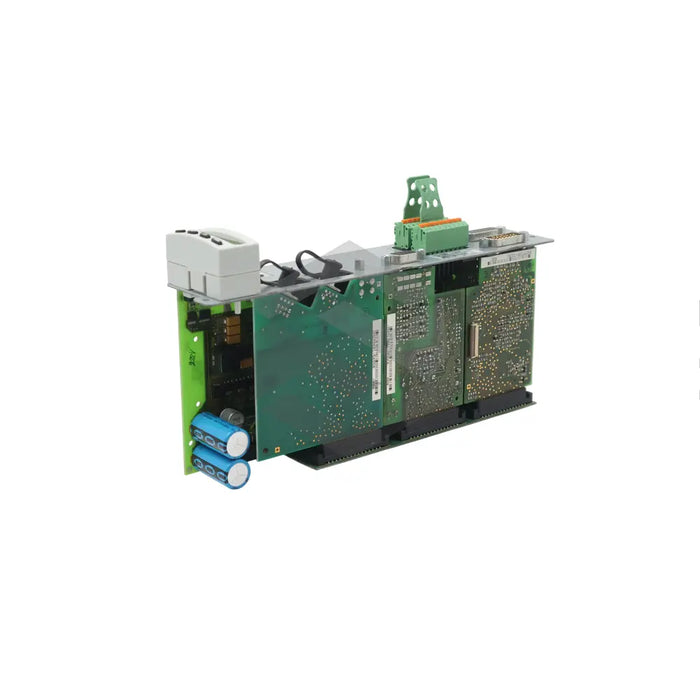

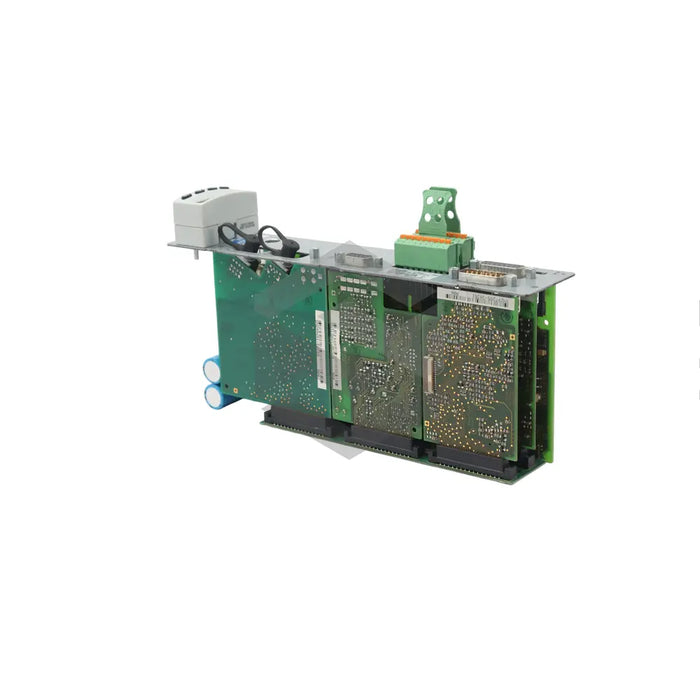

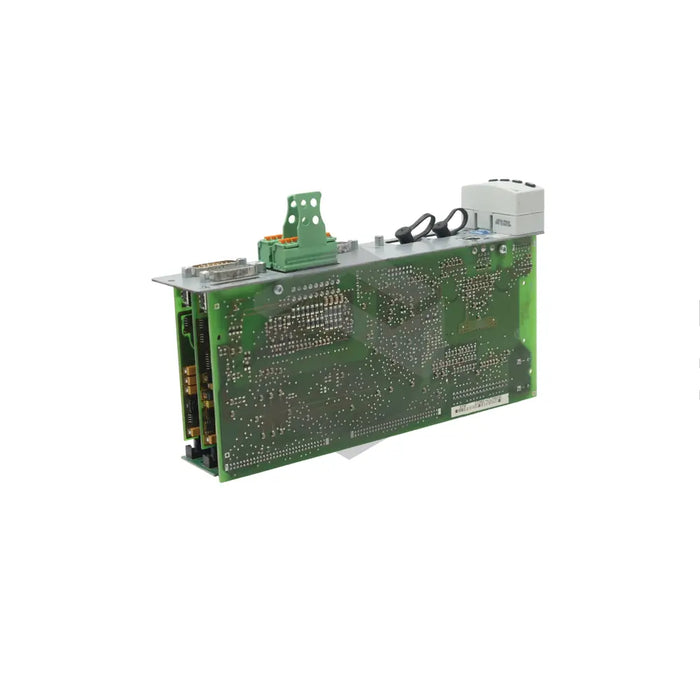

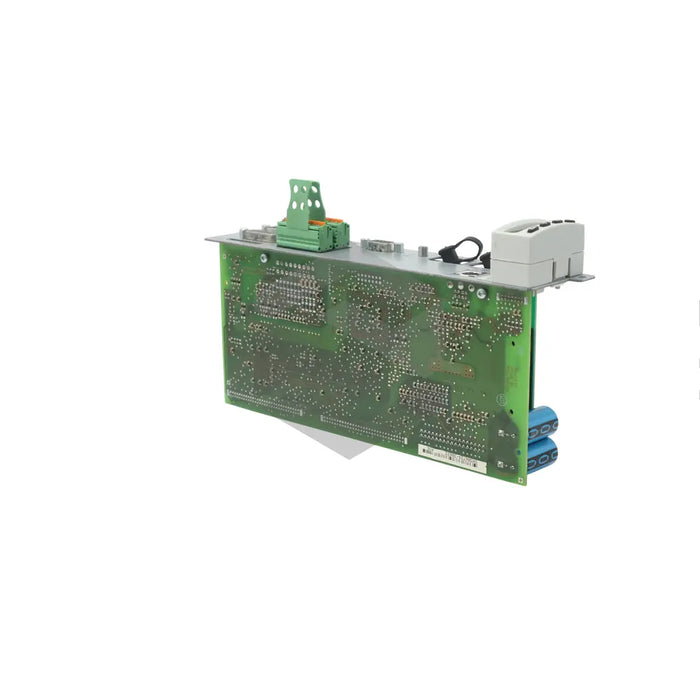

C image of CSH01.1C-SE-EN2-EN2-NNN-L1-S-NN-FW | Main (Front Left)

CSH01.1C-SE-EN2-EN2-NNN-L1-S-NN-FW

by Bosch Rexroth Indramat
$1,872.47 - $3,196.11
$1,872.47
$1,872.47 - $3,196.11
$1,872.47

In Stock, Ships 1 - 3 Days

The CSH01.1C-SE-EN2-EN2-NNN-L1-S-NN-FW is a multidimensional control device from the CSH series by Bosch Rexroth Indramat. This high-performance control unit is made for a variety of applications, including handling and mounting systems, machine tools, and food packaging machines. Its two encoder evaluation interfaces operate at a 5V supply voltage. The SERCOS master communications module enables synchronization with top-tier control units, utilizing fiber optic cables for maximum electromagnetic interference resistance. The control section accommodates firmware usage (to be ordered separately) and includes a standard single-line display control panel with four operating buttons. The operator can use the panel to initiate basic load defaults procedure, establish position data references, set analog outputs, and drive address. The unit supports a range of switching frequencies from 2kHz to 16kHz. Its mounting capability allows up to 20 connections with the drive controller.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Control Sections

Series

CSH

Model

CSH01.1C-SE-EN2-EN2-NNN-L1-S-NN-FW

Interface

Two encoder evaluation interfaces

Supply Voltage Ratings

5V

Compatible Encoders

5V-TTL square-wave encoder with reference track, sin-cos encoder (1 Vpp) with EnDat 2.1 and sense lines, sin-cos encoder (1 Vpp) with reference track

Communication Module

SERCOS master

Communication Method

Fiber optic cables

Extra Feature

Adjustable data rate and transmission power via serial interface X2

Safety Module

Starting lockout

Compliance

Stop category 0 according to EN 60204-1

Third-Party Software Support

Firmware (ordered separately)

Control Panel Type

Standard, with single-line display and four operating keys

Available Functions

Starting the basic load defaults procedure, establishing the position data reference, setting the analog outputs, and setting the drive address

Switching Frequencies

2kHz, 4kHz, 8kHz, 12kHz, 16kHz

Mounting

Can be mounted or dismounted from the drive controller up to 20 times.
