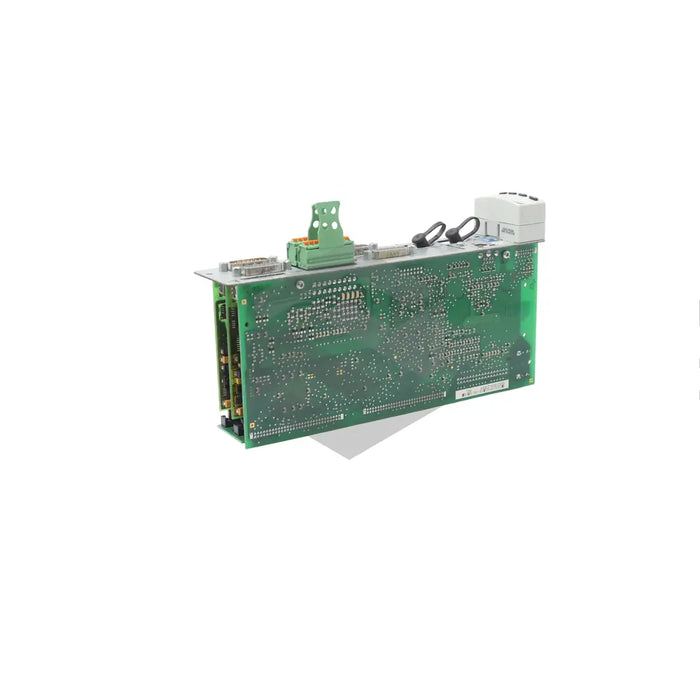

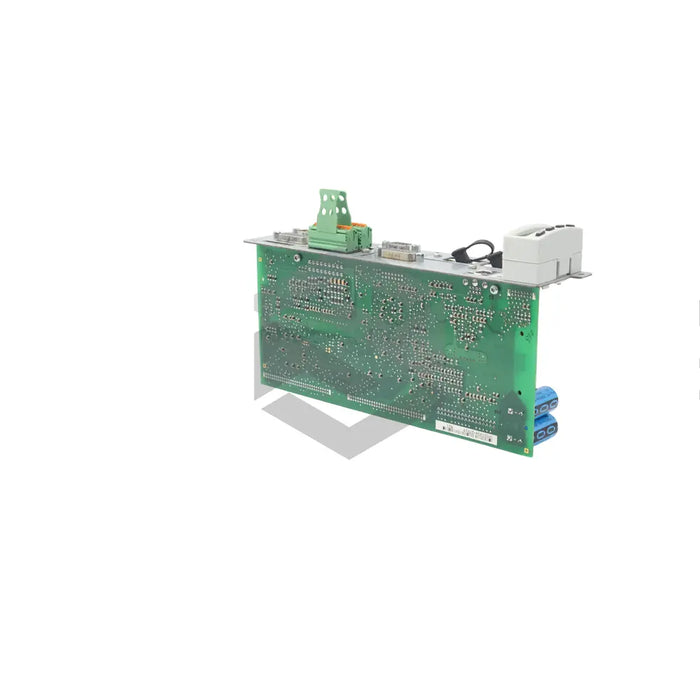

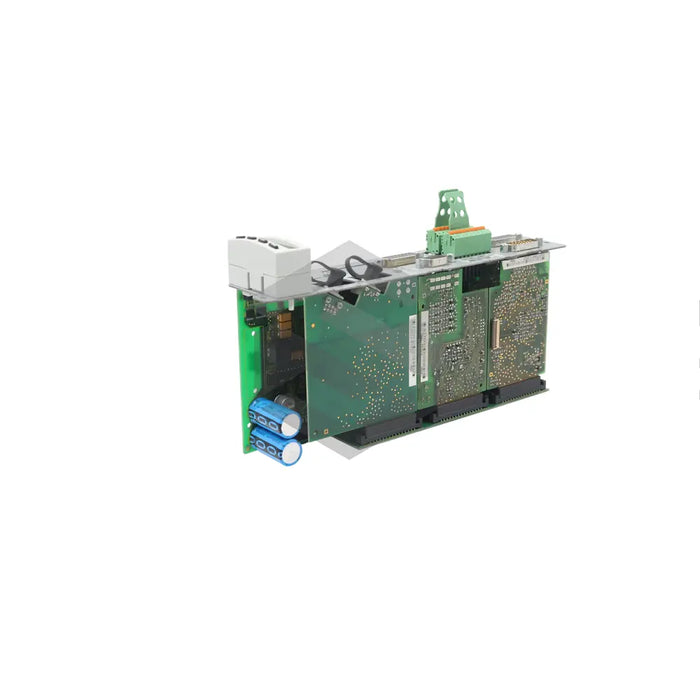

S image of CSH01.1C-SE-EN2-MEM-MA1-L2-S-NN-FW

CSH01.1C-SE-EN2-MEM-MA1-L2-S-NN-FW

by Bosch Rexroth Indramat
$4,153.29 - $5,061.96
$4,153.29
$4,153.29 - $5,061.96
$4,153.29
The CSH01.1C-SE-EN2-MEM-MA1-L2-S-NN-FW, developed by Bosch Rexroth Indramat, is a high-end control section designed for top-tier automation equipment. Serving as the cornerstone of a drive controller, this model works alongside a power unit and control panel. It boasts a SERCOS interface for main communication, found at connection points X22 and X23, with an additional analog I/O extension at X10. Crafted in a compact format, the control section can be clustered with other units, given adequate space for airflow. Importantly, this controller requires setup from an engineer or trained technician, with an integrated single-line display featuring operational data and error logs. It also makes use of a safe torque off (SIL3/ cat 3. PL e) safety feature. The model operates optimally within specified ambient conditions, and is suitable for machine tools, printing and paper machines, and food-related machinery. Safety measures include the use of a protective diode to guard against improper connection and polarity inversion.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-SE-EN2-MEM-MA1-L2-S-NN-FW

Function

Control Section

Interface

SERCOS

Connection Points

X22 and X23 for SERCOS, X10 for Analog I/O Interface, X41 for Safe Torque Off, H1 for Control Panel Interface, X2 for Serial Interface, X31.8 and X31.9 for External Supply Voltages

Physical Dimensions

103mm x 241mm x 49.5mm

Display

Single-Line Display for Operational Values and Error Logs

Safety Feature

Safe Torque Off (SIL3/ Cat 3. PL e)

Installation Note

Install with Sufficient Gap for Free Airflow

Configuration

By Engineer or Trained Technician

Target Applications

Machine Tools, Printing and Paper Processing Machines, Food Machines.
