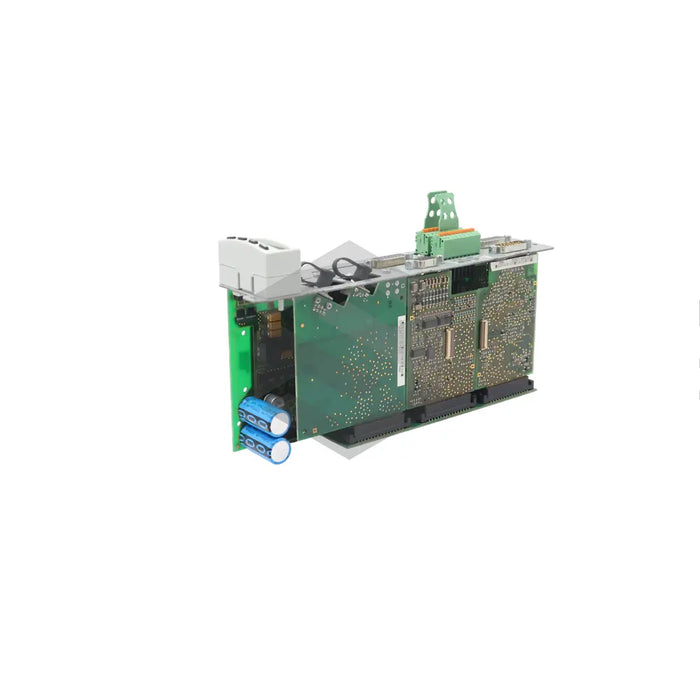

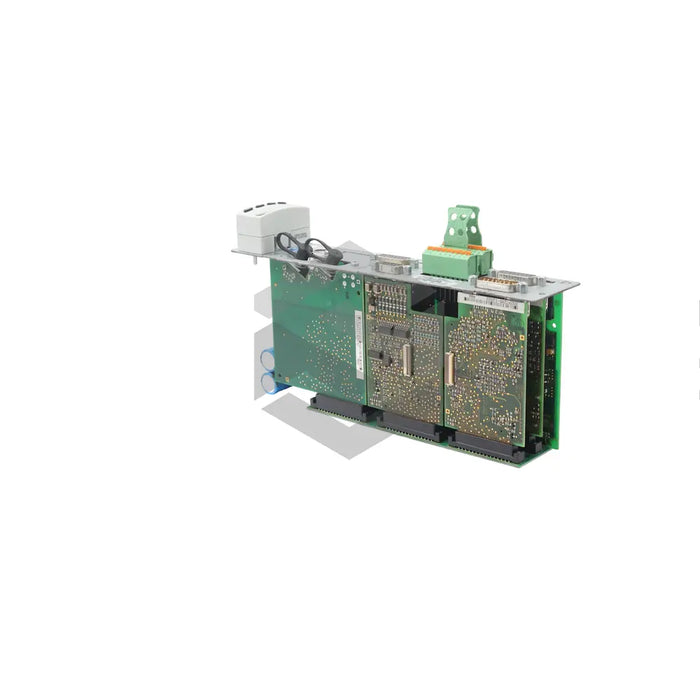

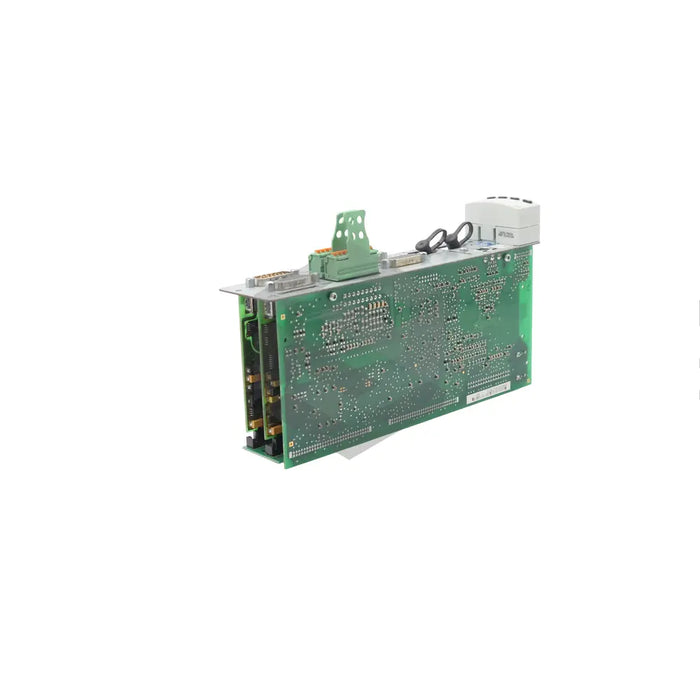

S image of CSH01.1C-SE-EN2-MEM-MA1-S2-S-NN-FW

CSH01.1C-SE-EN2-MEM-MA1-S2-S-NN-FW

by Bosch Rexroth Indramat
$4,153.29 - $5,061.96
$4,153.29
$4,153.29 - $5,061.96
$4,153.29
The CSH01.1C-SE-EN2-MEM-MA1-S2-S-NN-FW, engineered by reputable manufacturer Bosch Rexroth Indramat, is a high-functioning control section part of the distinguished CSH series. This efficient device, with dimensions of 103mm x 241mm x 49.5mm, is specifically designed for hassle-free installation within compact drive controllers. The standard control panel interface, to be connected at point H1, houses various encoder interfaces such as EnDat 2.1, 1Vpp, and TTL for broad motor series compatibility (at connection point X4). The model also includes connection point X8 supporting analog I/O extension and a safety feature, Safe Motion (SIL2/ cat. 3 PL d), at point X41. The CSH01.1C-SE-EN2-MEM-MA1-S2-S-NN-FW works best between 0 to +40 degree Celsius, has an IP20 protection against particulate ingress, but requires a control cabinet for protection against moisture and liquids. For group installations, adequate spacing for efficient cooling must be maintained. Detailed installation instructions are provided in the user guide.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

CSH Series

Model

CSH01.1C-SE-EN2-MEM-MA1-S2-S-NN-FW

Control Panel

Standard

Connection Point H1

Present

Physical Dimensions

103mm x 241mm x 49.5mm

Installation Type

Compact Drive Controllers

Configurable

Yes

Encoder Interfaces Option 1

Supports EnDat 2.1, 1Vpp, and TTL

Connection Point X4

Dedicated for Encoders

Connection Point X8

Supports Analog I/O Extension

Safety Feature at X41

Safe Motion (SIL2/ cat. 3 PL d)

Ambient Operating Temperature

0 to +40 degree Celsius

Protection Level

IP20

Sensitivity

Sensitive to Moisture, Fog, and Liquids

Cabinet Protection

Required

Group Installation

Requires Specific Distance for Efficient Cooling.
