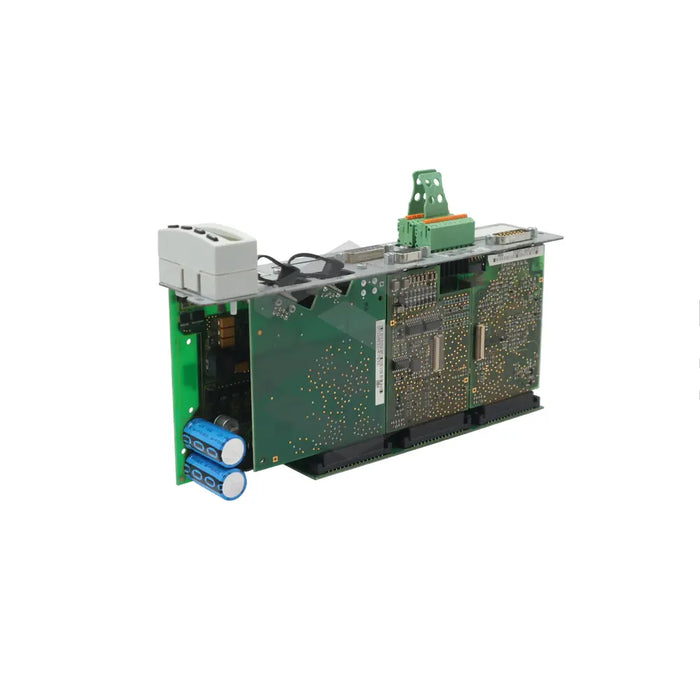

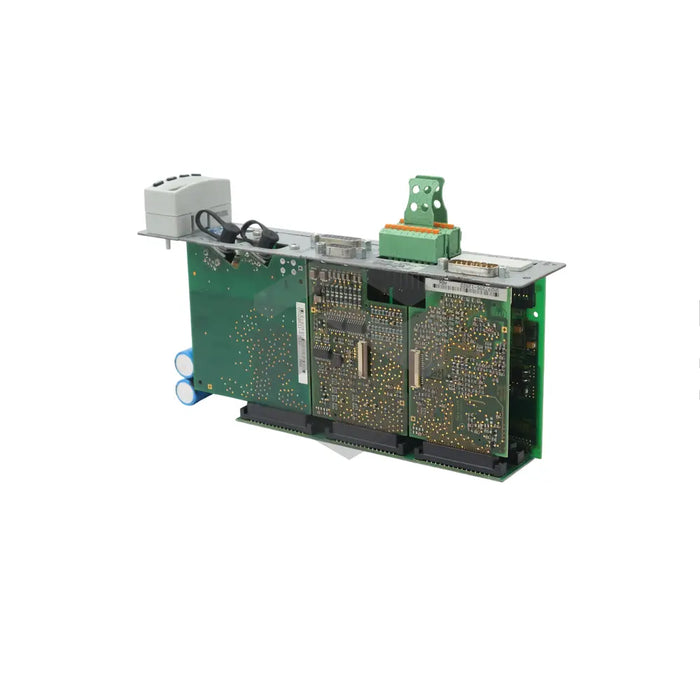

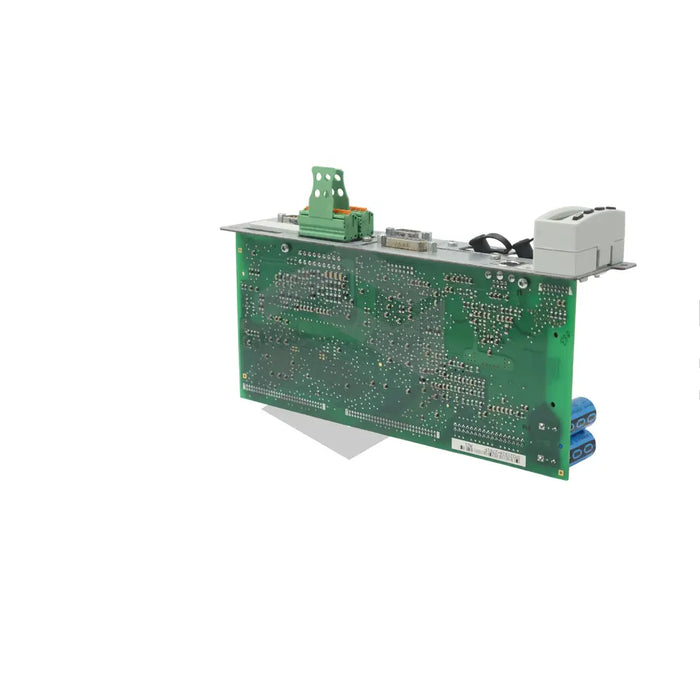

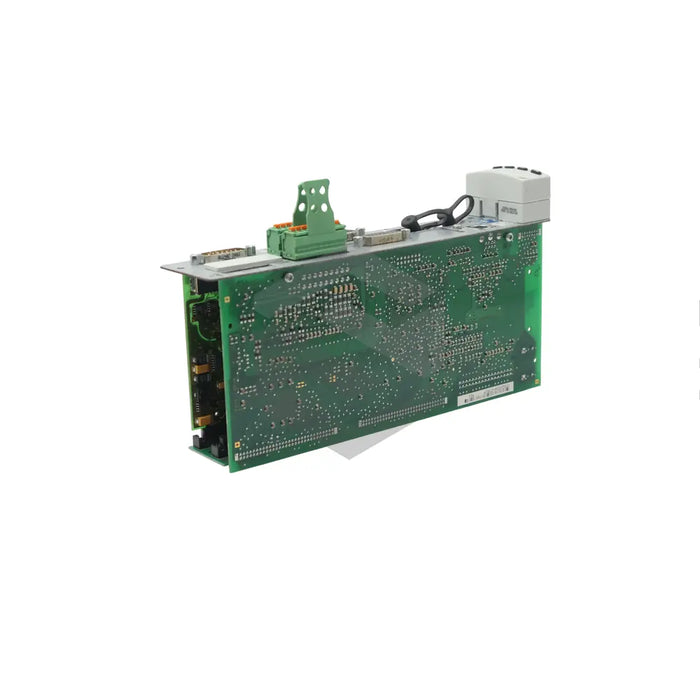

S image of CSH01.1C-SE-EN2-NNN-MA1-S1-S-NN-FW

CSH01.1C-SE-EN2-NNN-MA1-S1-S-NN-FW

by Bosch Rexroth Indramat
$4,153.29 - $5,061.96
$4,153.29
$4,153.29 - $5,061.96
$4,153.29
Bosch Rexroth Indramat's CSH01.1C-SE-EN2-NNN-MA1-S1-S-NN-FW is an advanced control section designed to support safety technology I/O at the X41 junction. It requires a safe startup lockout to prevent unscheduled startups and protections against jamming and crushing. The unit features a high operational surface temperature, exceeding 60°C, and needs specified battery types. The control section includes spring and screw terminal blocks at connection points, and a separate interface for the control panel. With two differential inputs and outputs located at the X26, it uses a Type 2 relay contact with a 1A and 24VDC rating. The system demand an external supply voltage connection at X31.8 and X31.9 for digital I/Os. Firmware is separately procured and the device requires a distribution box for applications with multiple analog I/Os. It features ESD protection and component restrictions in line with IEC 61800-3 specifications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CSH01.1C-SE-EN2-NNN-MA1-S1-S-NN-FW

Safety Feature

Safety technology I/O at the X41 connecting point

Safety Requirement

Prevented against unplanned startup by isolating the power connection

Hot Surface Temperature

Over 60°C

Protection

Resistant against jamming and crushing

Battery types

Specified by manufacturer

Harmful Materials

Free of chlorinated hydrocarbons, PCB, asbestos and mercury

Terminal Type

Spring terminals and screw terminal blocks

Control Panel Interface

Separate

Engineering Interface

Two differential inputs and two differential outputs at the X26 connecting point

Relay Contact

One Type 2 relay contact with 1A and 24VDC

External Supply Voltage Connection

At the X31.8 and X31.9 connecting points

Firmware

Procured as a separate subitem

Distribution Box

Requires the connection for uses involving several analog I/Os

Size

Smaller than the power section of the drive controller

ESD Protection

Yes

Manufacturer Approval

Required for all fitted components

Component Category

C3 as per IEC 61800-3 specifications

Cooling Time

Required before the product can be touched after turning off the power supply

Handling Requirement

Proper and correct installation, storage and transportation

Packaging

Custom rugged packaging.
