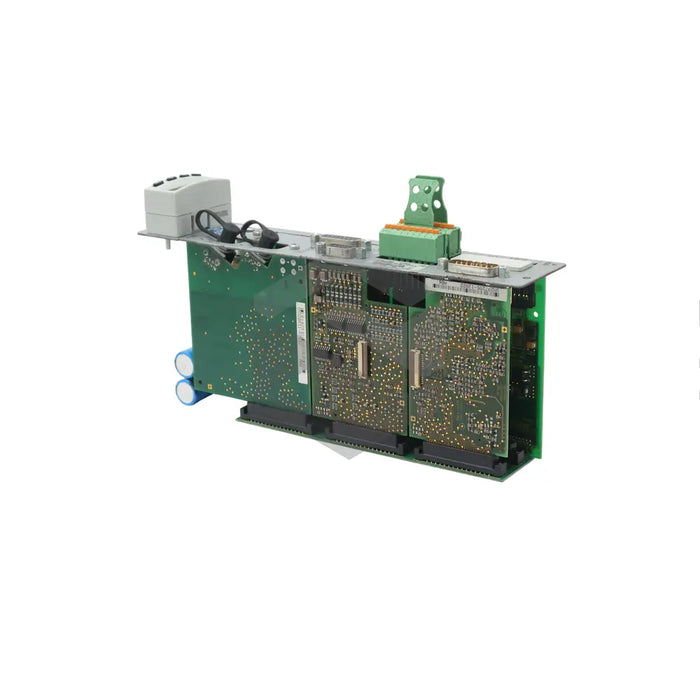

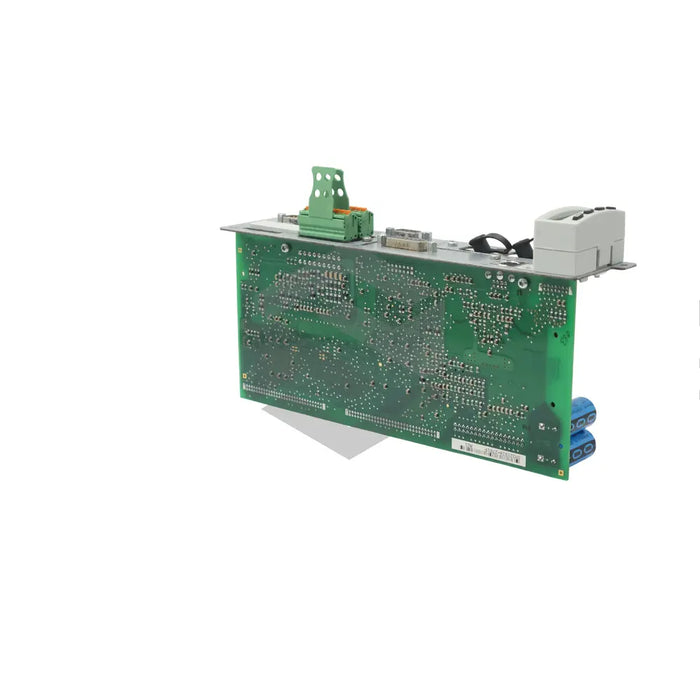

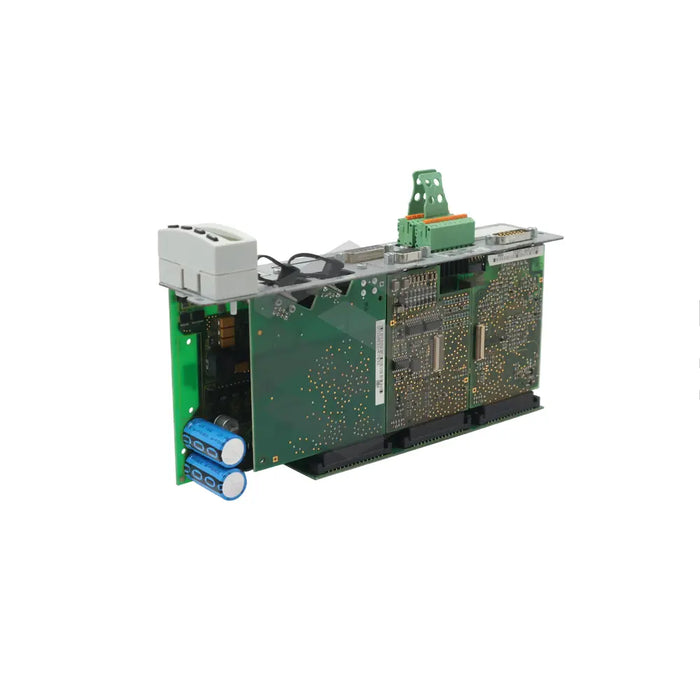

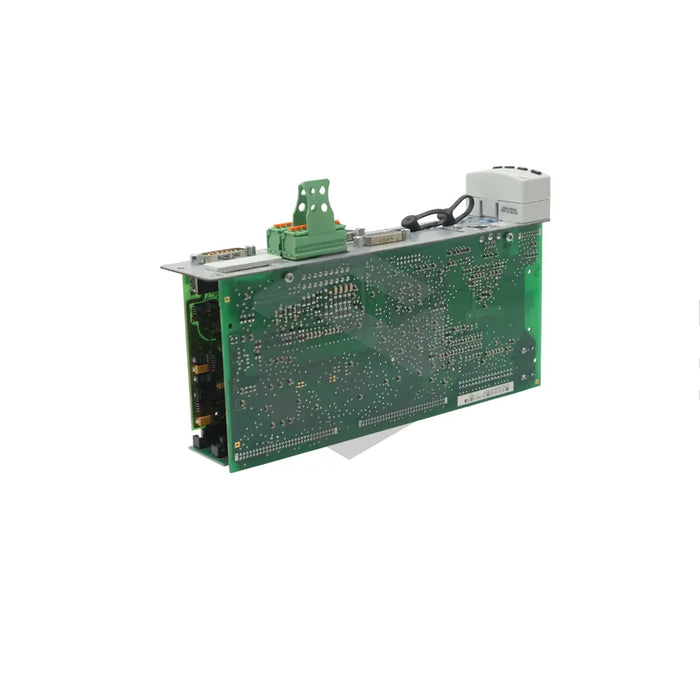

S image of CSH01.1C-SE-EN2-NNN-MA1-S2-S-NN-FW

CSH01.1C-SE-EN2-NNN-MA1-S2-S-NN-FW

by Bosch Rexroth Indramat
$4,153.29 - $5,061.96
$4,153.29
$4,153.29 - $5,061.96
$4,153.29
The CSH01.1C-SE-EN2-NNN-MA1-S2-S-NN-FW, a control section manufactured by Bosch Rexroth Indramat, shouldn't be operated independently without appropriate understanding of the operation, maintenance, and safety instructions. Incorrect usage can lead to electrical shock, and thus it should be installed per safety regulations and disconnected from the power source when working with parts carrying voltage above 50V. This device is equipped with a system that protects against water intrusion and other external objects, requires suitable transport and mounting equipment, and should never be disconnected when pressurized. It features a single axis for user configuration, does not align with the manufacturer’s VCP01.2 control panel, has two Type 2 digital inputs, and a SERCOS interface using fiber optic cables for communication. The control panel includes four keys and a single-line display. Lastly, the unit uses Safe Motion safety technology and supports two kinds of multimedia cards for memory.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CSH01.1C-SE-EN2-NNN-MA1-S2-S-NN-FW

Functionality

Advanced control section

Safety Precaution

Can cause electric shock due to improper use

Installation Requirement

Must follow general installation and safety regulations

Voltage

Device must be disconnected from voltages higher than 50V

Protection Measures

Drive controller must be protected against water and extrinsic objects

Leakage current

higher than 3.5mA

Handling

Requires suitable equipment for transport and mounting

Axis

Single axis

User Configuration

Supported

Digital Inputs

Two Type 2

Analog Input

Needs signal source with least impedance

Interface

SERCOS interface for communication using fiber optic cables

Safety Technology

Uses Safe Motion

Control Panel

Four keys and a single line display

Memory

Supports two variants of multimedia cards

Relay Contact

Incorporates a relay contact with an ohmic time constant of load and 1 x 106 switching actions.
