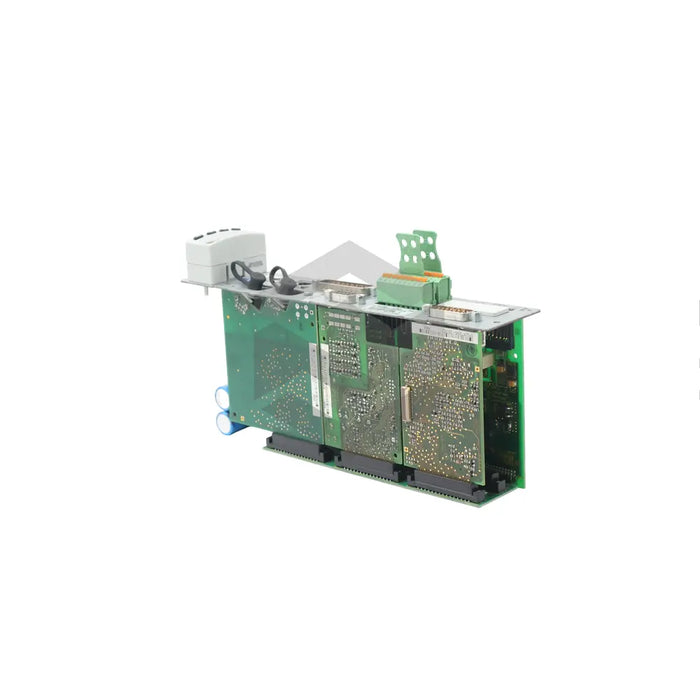

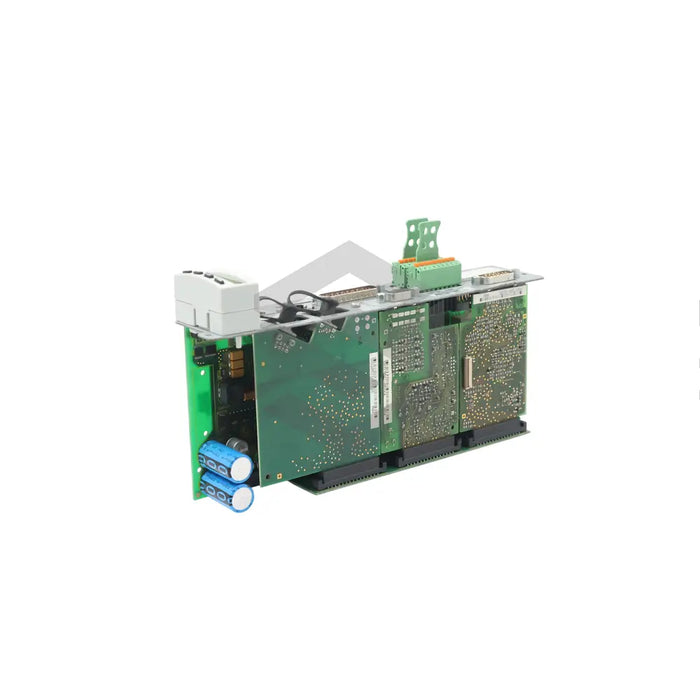

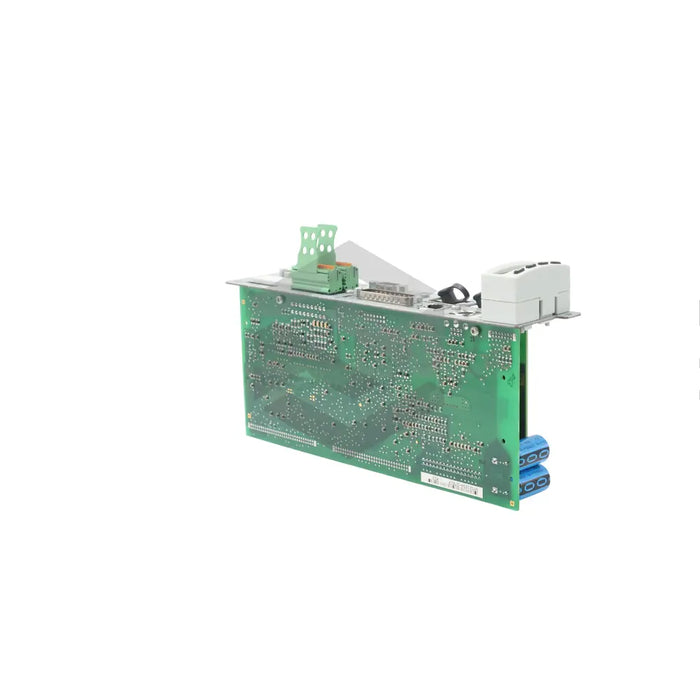

S image of CSH01.1C-SE-EN2-NNN-MD2-L2-S-NN-FW

CSH01.1C-SE-EN2-NNN-MD2-L2-S-NN-FW

by Bosch Rexroth Indramat
$4,153.29 - $5,061.96
$4,153.29
$4,153.29 - $5,061.96
$4,153.29
The Bosch Rexroth Indramat CSH01.1C-SE-EN2-NNN-MD2-L2-S-NN-FW is an advanced control section designed for operation within a drive controller. Proper handling necessitates the use of appropriate safety gear and tools. The unit comes with two analog outputs and supports five switching frequencies, with current control cycle times of 62.5µs and 125µs. It employs an Endat 2.1 / 1Vpp / TTL encoder and can operate at surface temperatures exceeding 60°C. The device includes three combined I/Os functioning as digital inputs or outputs and a Safe Torque Off safety function without bus wring support. It uses environmentally-friendly materials, housed batteries with active chemicals, and is incompatible with the manufacturer’s VCP series comfort control panels. It provides DC output voltages variations for its encoder, and includes up to eight digital inputs in one group. The control unit can be ordered from Servo Supplier, offering a one-year backup support.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CSH01.1C-SE-EN2-NNN-MD2-L2-S-NN-FW

Control Type

Advanced control section

Analog Outputs

2

Current Control Cycle Times

62.5µs and 125µs

Switching Frequencies

5

Encoder Type

Endat 2.1 / 1Vpp / TTL encoder

Surface Temperature

Above 60°C

Environmentally Safe Components

Yes

Safety Requirements

Appropriate safety apparel for handling

Battery Type

Batteries with active chemicals

Housing Type

Solid

Installation

Fitted inside a power section

VCP Series Compatibility

No

I/O Combinations

Three combined I/Os (can function as digital inputs or digital outputs)

Safety Function

Safe Torque Off (without bus wiring support)

Clock Frequency

Depends on power section

Shipping and Support

Sent to any address with a year’s backup support from Servo Supplier

Encoder Evaluation

Interface encoder evaluation

DC Output Voltage

Different with and without return for its encoder

Connection

Direct to RKG0014 cable

Sine Signals

Digital input for the encoder system

Digital I/O Extension

With SSI encoder interface

Digital Input Groups

Two groups with eight digital inputs in each group

Connector Type

High-density D-Sub connector with 44 poles at the X17 connecting point
