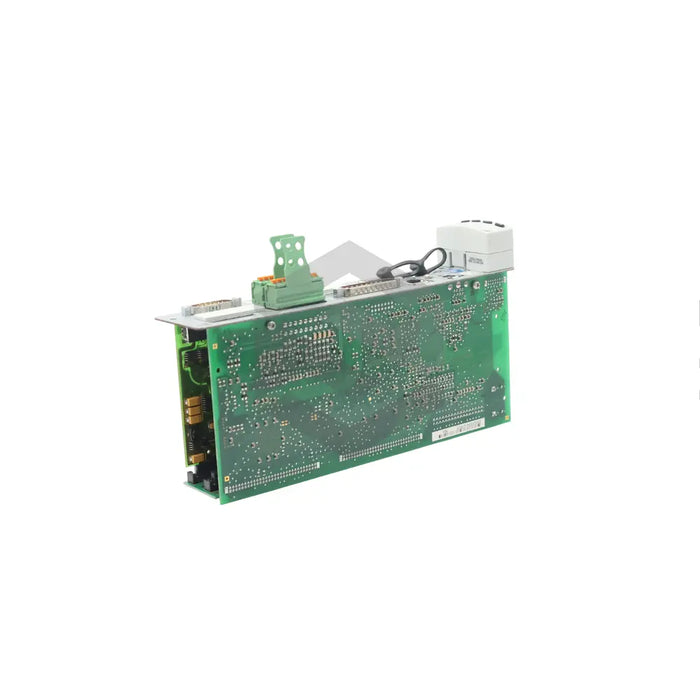

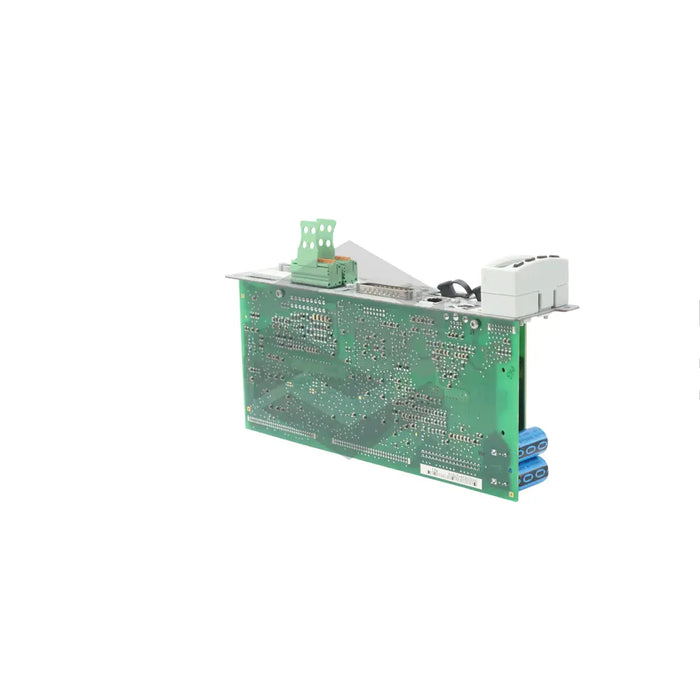

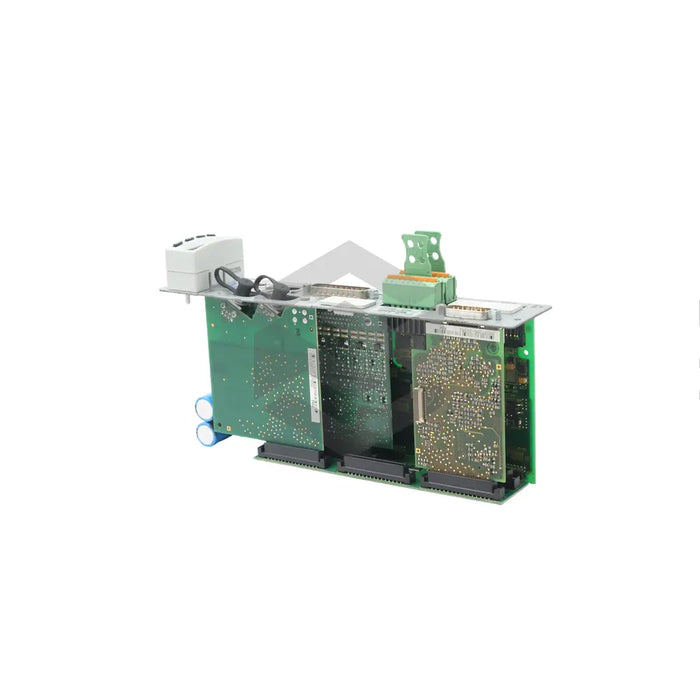

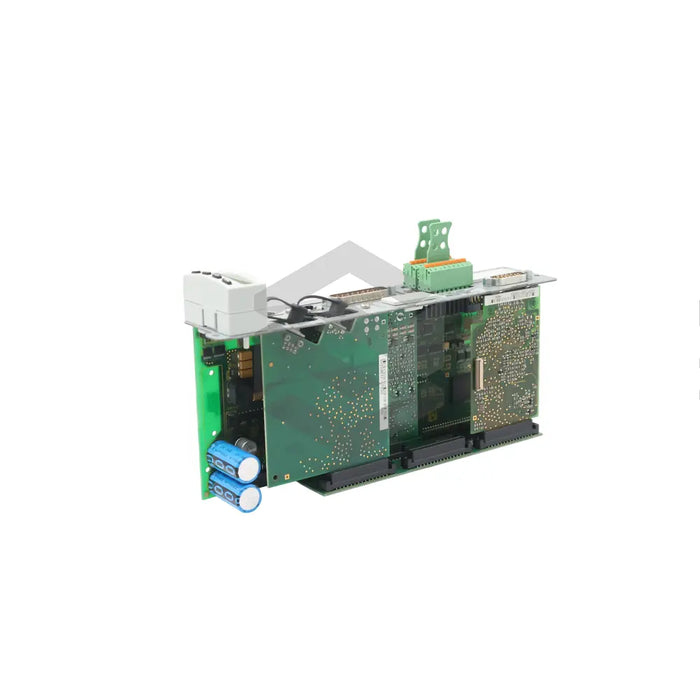

S image of CSH01.1C-SE-EN2-NNN-MD2-NN-S-NN-FW

CSH01.1C-SE-EN2-NNN-MD2-NN-S-NN-FW

by Bosch Rexroth Indramat
$4,153.29 - $5,061.96
$4,153.29
$4,153.29 - $5,061.96
$4,153.29
The CSH01.1C-SE-EN2-NNN-MD2-NN-S-NN-FW control section, produced by Bosch Rexroth Indramat, integrates galvanically isolated digital inputs/outputs. Connection with the Bosch Rexroth control panel is required but must not be plugged or unplugged while the drive controller is active to avoid potential damage. Significant parameters, operating data, and firmware are stored in the PFM02.1 multimedia card, with a limitation of 20 mountings/dismountings to prevent harm. A maximum 10m length RKS0004 cable links the X17 junction to the control cabinet terminal strip. This product is intended for controlling and monitoring electric motor operations, particularly within mounting and handling systems. Skilled personnel should handle and install this product to meet EMC requirements, and usage near people with hearing aids, metal implants or pacemakers, or radio equipment is strictly prohibited. Protective measures such as guards, covers and safety gloves are required during operation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-SE-EN2-NNN-MD2-NN-S-NN-FW

Control Capability

Advanced control with galvanically isolated digital inputs/outputs

Parameter Storage

In PFM02.1 multimedia card

Mounting Limit

20 times

X17 Connection Point Cable

Manufacturer’s RKS0004, up to 10m in length

Usage Condition

Original state

Function

Controls and monitors electric motor function

Operating Environment

Handling and mounting systems

Component Category

C3, restricted distribution

Firmware

Pre-loaded in multimedia card

Installation Rules

Must follow EMC requirements

Potential Hazards

Hazardous for individuals with hearing aids, metal implants, or heart pacemakers if misused

Safety Features

Equipped with guards and covers

Grounding Connection

Equipment grounding connection featuring 8AWG cross-section copper wire

Startup Safety

Prevent unintended startup by isolating drive power connection

Operational Restriction

Not allowed near radio equipment

Warning

Hot surface may cause burns if accessed without safety gloves

Handling Requirements

Requires use of suitable tools and equipment.
