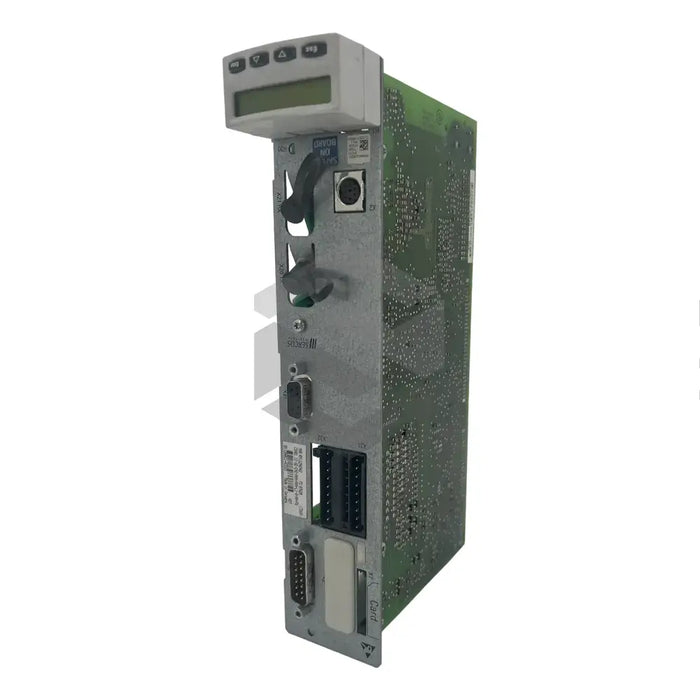

C image of CSH01.1C-SE-EN2-NNN-NNN-L1-S-NN-FW | Main (Front Left)

CSH01.1C-SE-EN2-NNN-NNN-L1-S-NN-FW

by Bosch Rexroth Indramat
$2,422.15 - $7,847.46
$2,422.15
$2,422.15 - $7,847.46
$2,422.15
The product at hand is the CSH01.1C-SE-EN2-NNN-NNN-L1-S-NN-FW from Bosch Rexroth's ADVANCED range. This control unit optimizes performance in machineries such as food packaging, handling and assembly devices, and machine tools. It is designed for standard encoders with a 5V supply and includes a SERCOS communication module that connects to control units via fiber optic cables, enhancing signal transfer security and speed. The product comes with a user-friendly control panel for adjusting the SERCOS transmission rate and power. In addition to displaying operational states and diagnoses, this panel also facilitates drive address set-ups, basic load defaults procedures, and analog output adjustments. This model is equipped with a safety feature, "starting lockout," conforming to stop category 0 as per EN 60204-1. Suitable for installation at heights of up to 1000m above sea level, it allows switching frequencies from 2kHz to 16kHz. Note that firmware and fiber optic cables are not given and must be ordered separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

ADVANCED

Product Model

CSH01.1C-SE-EN2-NNN-NNN-L1-S-NN-FW

Product Type

Configurable CSH control section

Encoder Support

Standard encoders with a supply voltage of 5V

Encoder Types

Sin-cos encoder with EnDat 2.1 with sense lines, sin-cos encoder with reference track, 5V-TTL square-wave encoder with reference track

Communication Module

SERCOS

Connection Technology

Fiber optics cables

User Panel

Includes four operating keys and a single-line display

Safety Technology

Starting lockout, Complies with stop category 0 EN 60204-1

Permitted Switching Frequencies

2kHz, 4kHz, 8kHz, 12kHz, 16kHz

Recommended Installation Height

Up to 1,000m above mean sea level
