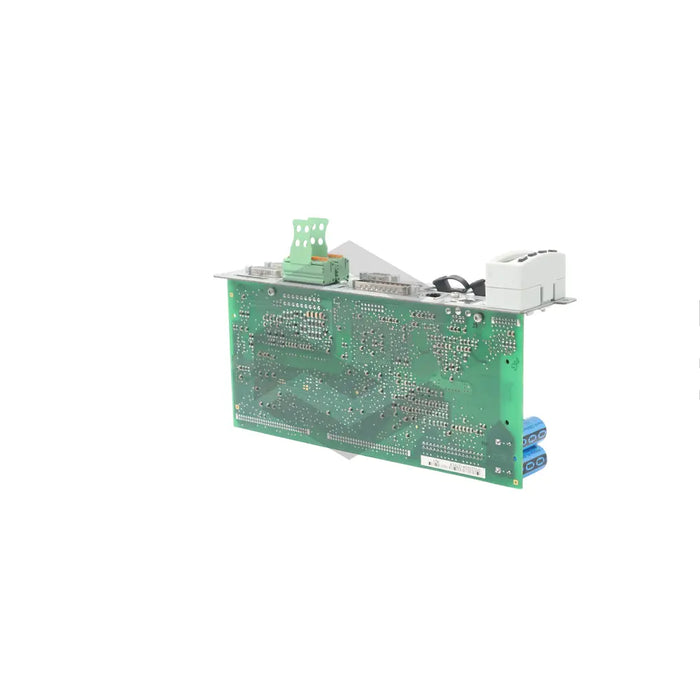

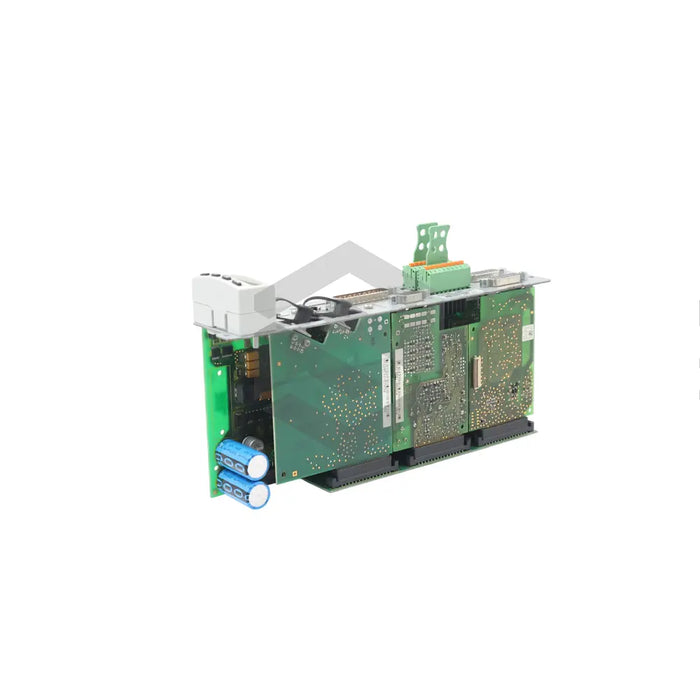

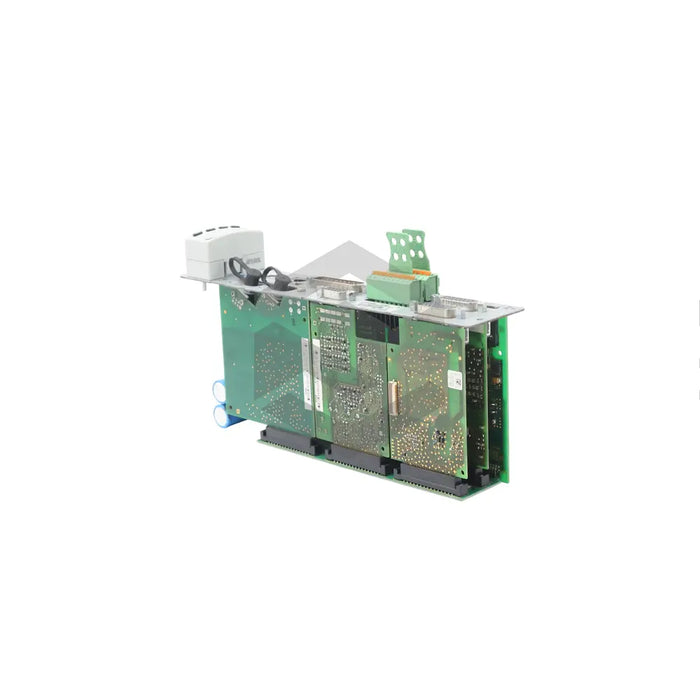

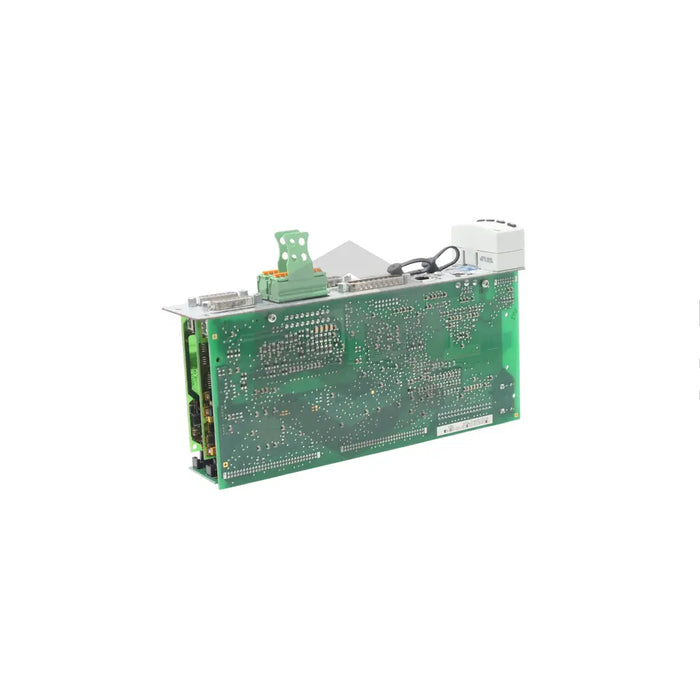

S image of CSH01.1C-SE-ENS-EN1-MD2-L2-S-NN-FW

CSH01.1C-SE-ENS-EN1-MD2-L2-S-NN-FW

by Bosch Rexroth Indramat
$4,153.29 - $5,061.96
$4,153.29
$4,153.29 - $5,061.96
$4,153.29
The CSH01.1C-SE-ENS-EN1-MD2-L2-S-NN-FW, a sophisticated control section developed by Bosch Rexroth Indramat, is designed for industrial use with IndraDrive controllers. Its features include distinct type plates for product and firmware identification, an RS-232 interface for serial device connection, and support for different control cycle times. The device requires separate firmware ordering, and is attachable to a power section with its type plate. It supports switching frequencies from 2kHz up to 16kHz and is equipped with a digital I/O extension module, safety module for secure torque turn-off, and two encoder modules. Employing SERCOS as master communication interface, the device facilitates high-speed serial data transfer using a master/slave design. Control panel configuration must be performed prior to device activation, and the device utilizes convection cooling for heat mitigation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Advanced Control Section for IndraDrive Controllers

Product Code

CSH01.1C-SE-ENS-EN1-MD2-L2-S-NN-FW

Application

Industrial

Interface

RS-232

Current Control Cycle Times

62.5 and 125 microseconds

Velocity Control Cycle Times

125 and 250 microseconds

Position Control Cycle Times

250 and 500 microseconds

Minimum SERCOS Cycle Time

250 microseconds

Supported Switching Frequencies

2, 4, 8, 12, and 16 kilohertz

Additional Features

Digital I/O Extension Module, SSI Encoder Interfaces, Safety Module for Safe Torque Off, Encoder HSF/RSF Module, Encoder IndraDyn/Hiperface Module

Master Communication Interface

SERCOS

Configuration Method

Standard Control Panel

Cooling Method

Convection Cooling
