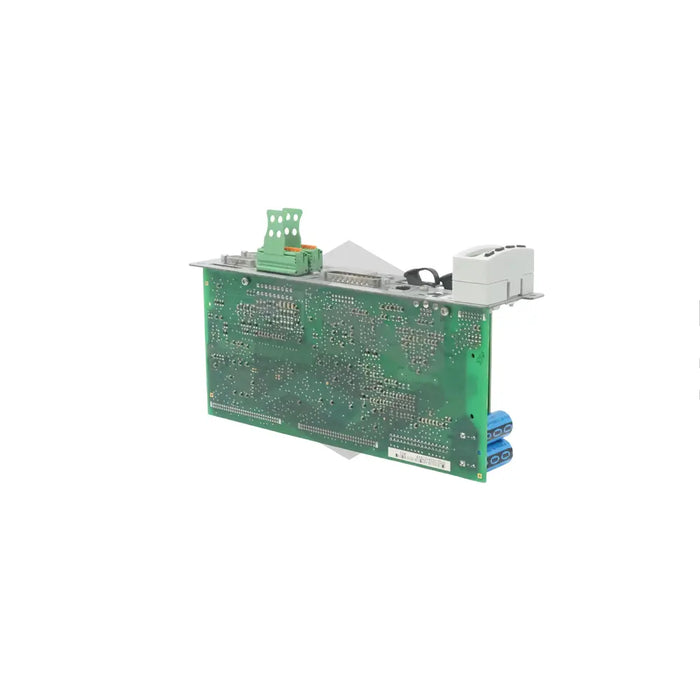

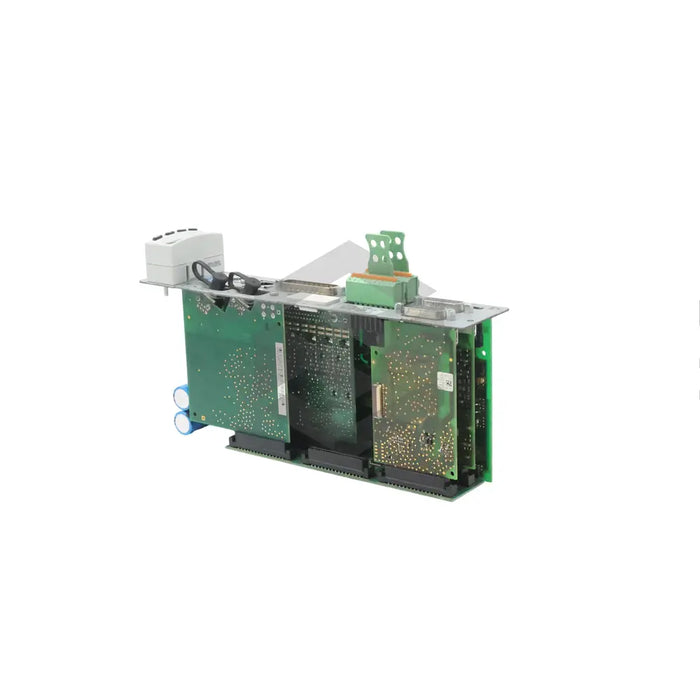

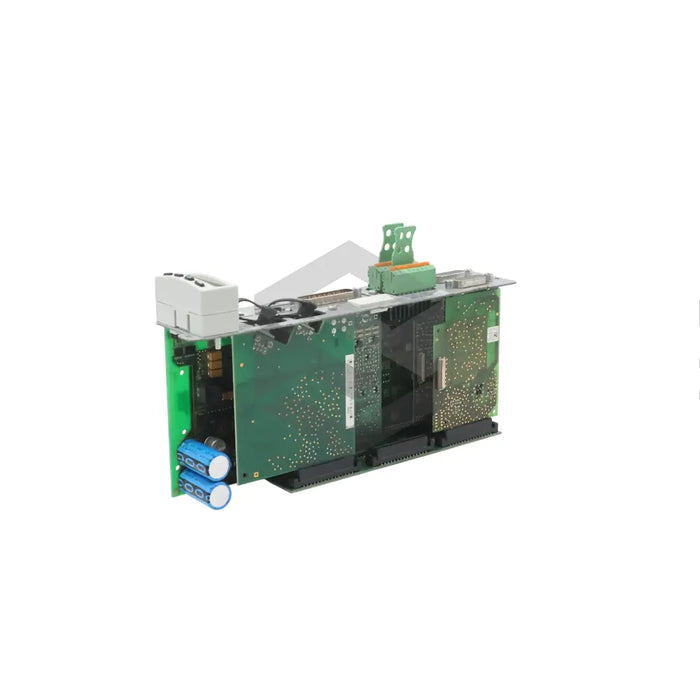

S image of CSH01.1C-SE-ENS-MEM-MD2-NN-S-NN-FW

CSH01.1C-SE-ENS-MEM-MD2-NN-S-NN-FW

by Bosch Rexroth Indramat
$4,153.29 - $5,061.96
$4,153.29
$4,153.29 - $5,061.96
$4,153.29
The Bosch Rexroth CSH01.1C-SE-ENS-MEM-MD2-NN-S-NN-FW is an advanced single-axis control section, explicitly crafted for precision, accuracy, and flexibility in single-axis motion applications like machine tools, food processing, and textile machines. Excelling in application-specific use, this device connects with encoders such as MSK motor encoder with a 12V supply cable and others. It also features a combined Digital I/O Extension and SSI Encoder Evaluation extension, offering 16 inputs and outputs. Communication within the system is executed through Sercos using fiber optic cables for rapid data transmission and minimal wiring. The device's encoder emulation interface replicates absolute value and incremental encoder signals, while its control panel facilitates adjustments in the Sercos module's transmission power and rate. The panel also has a single-line display for viewing performance metrics along with four command keys.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-SE-ENS-MEM-MD2-NN-S-NN-FW

Control Section Purpose

Single-axis motion applications

Applications

Machine tools, Food processing and packaging machines, Textile machines

Encoder Connection Supply Voltage

12V

Suitable Encoders

MSK motor encoder, Sin-cos encoder (1 Vpp) with Hiperface, Sin-cos encoder (1 Vpp) with EnDat 2.1, Sin-cos encoder (1 Vpp) with reference track

Extension Type

Digital I/O Extension and SSI Encoder Evaluation

Digital I/O Extension

16 inputs and 16 outputs as two input groups and four output groups

Communication Interface

Sercos

Communication Cable Type

Fiber optic

Encoder Emulation Interface

Emulates galvanically isolated absolute value and incremental encoder signals

Control Panel

Standard, used to set the transmission power and field bus transmission rate of the sercos module, start the basic load defaults procedure and set the drive address

Display

Single-line display

Keys

Four for triggering simple commands.
