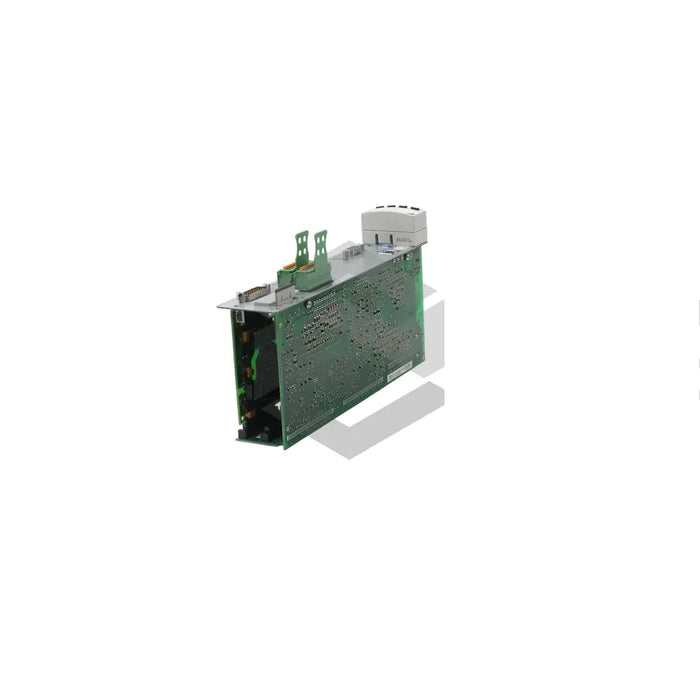

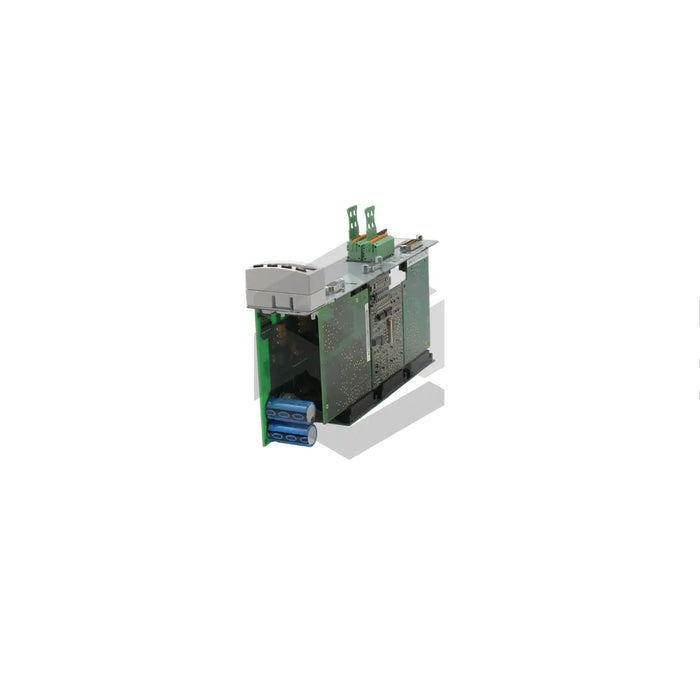

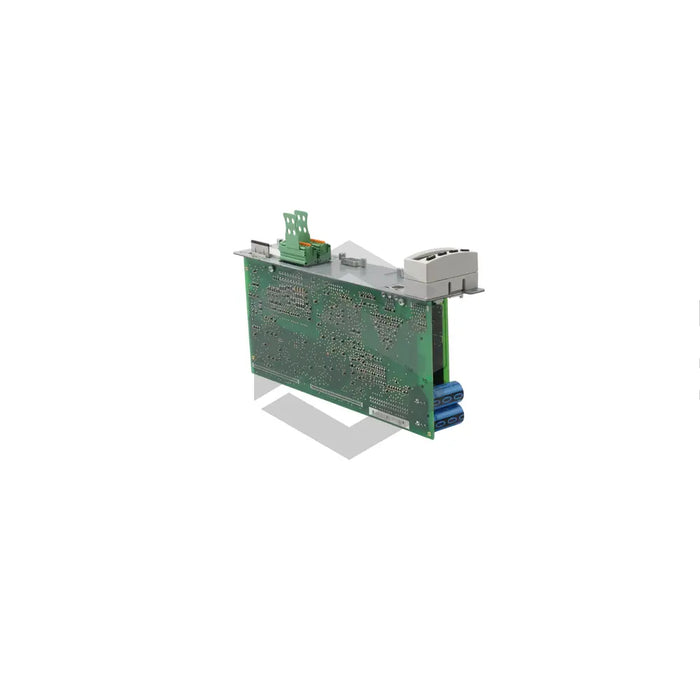

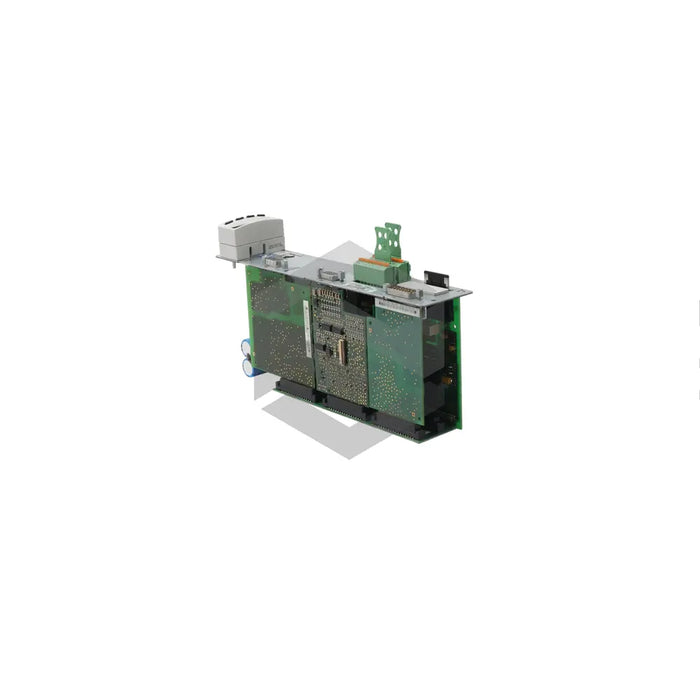

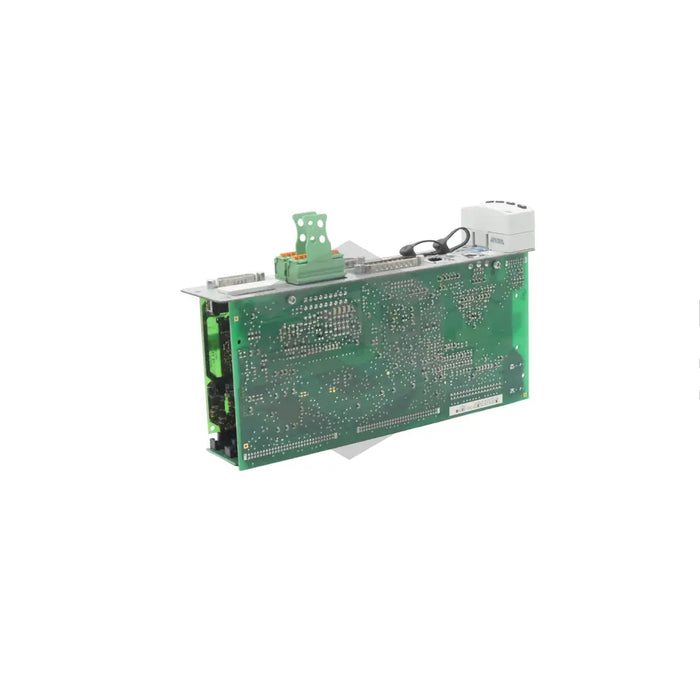

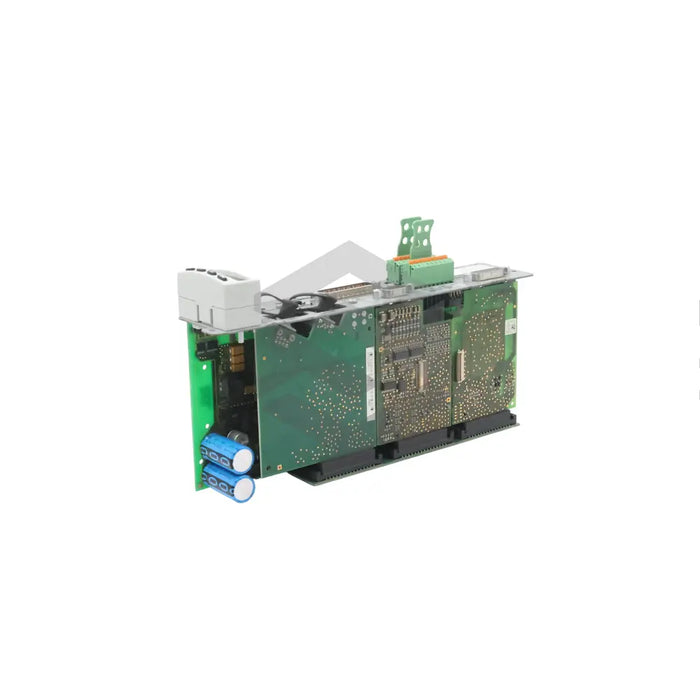

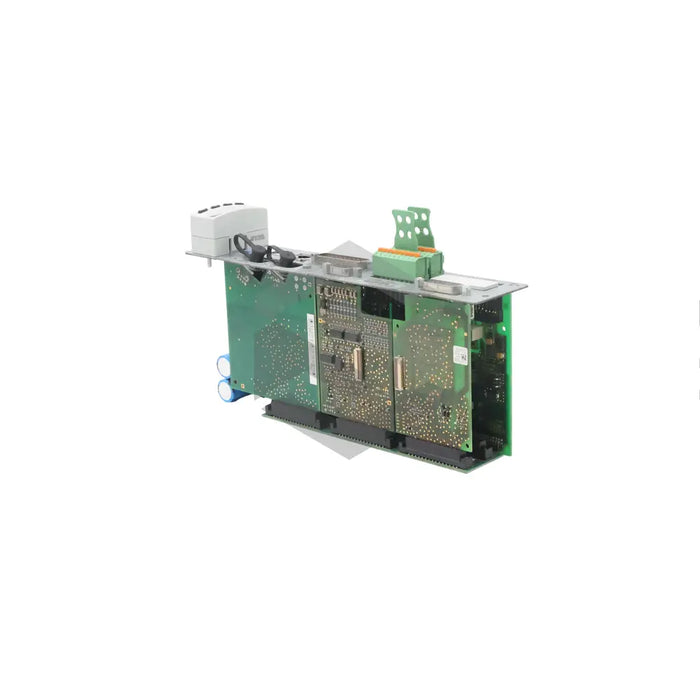

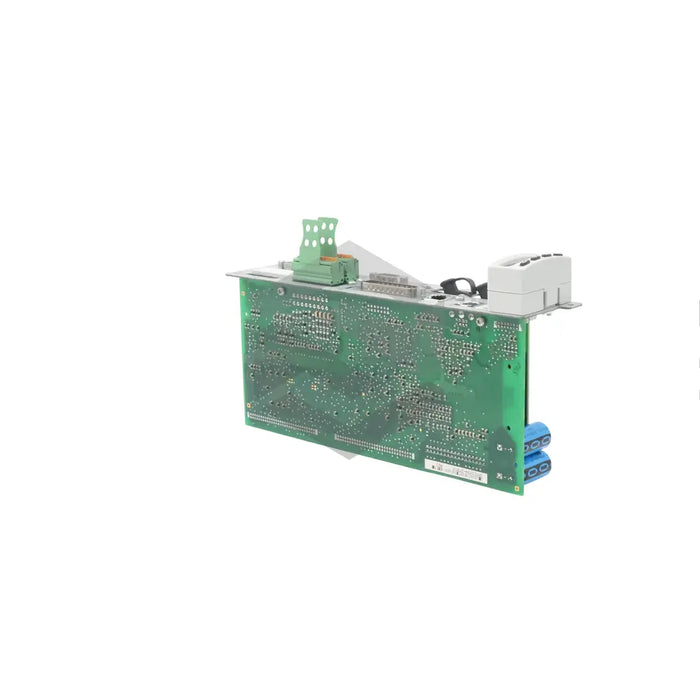

C image of CSH01.1C-SE-ENS-NNN-MD2-S1-S-NN-FW | Main (Front Left)

CSH01.1C-SE-ENS-NNN-MD2-S1-S-NN-FW

by Bosch Rexroth Indramat
$4,153.29 - $5,061.96
$4,153.29
$4,153.29 - $5,061.96
$4,153.29
The Bosch Rexroth Indramat CSH01.1C-SE-ENS-NNN-MD2-S1-S-NN-FW is a high-quality control section designed to meet extensive industrial requirements. This model houses seven to eleven digital inputs, an RS232 serial interface, an analog input and four digital outputs. Its stand-out features include an S1 safety function, a connection module with a SERCOS interface, and an IndraDyn/hyperface encoder equipped X4 slot. It also possesses a user-friendly control panel, a programmed firmware functioning in generous cycle times that drive variable speed, current, and positioning. A point of note is that its SERCOS variant supports a minimum cycle time of 250 microseconds. This model, compatible with 0.75 - 1.50 mm twisted wire and having a 24 V voltage, is tailored for demanding industrial settings and regulations such as in printing, packaging, or food processing. It boasts a compact size of 49.5mm depth, 103mm width, and 244mm height. The X8 slot is unused while X10 incorporates a digital I/O extension with an SSI encoder interface.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

CSH01.1C-SE-ENS-NNN-MD2-S1-S-NN-FW

Digital Inputs

7 to 11

Serial Interface

RS232

Safety Feature

S1 (safety technology I/O)

Connection Module

SERCOS interface

Analog Input

1

Digital Outputs

4

Cycle Time Function Speeds

125–250, 62.5–125, and 250–500 microseconds

Max Number of Mounting Cycles

20

Minimum Cycle Time of SERCOS

250 microseconds

IndraDyn/Hyperface Encoder

6W X4 slot

Control Panel Type

User friendly

Firmware

Programmable (ordered seperately)

Wiring

0.75 - 1.50 mm twisted wire

Input Voltage

24 V

Operating Temperature Range

Industrial specified

Applications

System controllers for printing, packaging, food processing, handling, and mounting

Dimensions

49.5 mm (D) x 103 mm (W) x 244 mm (H)

Empty Slot

X8

Digital Input/Output Extension

X10 slot with SSI encoder interface.
