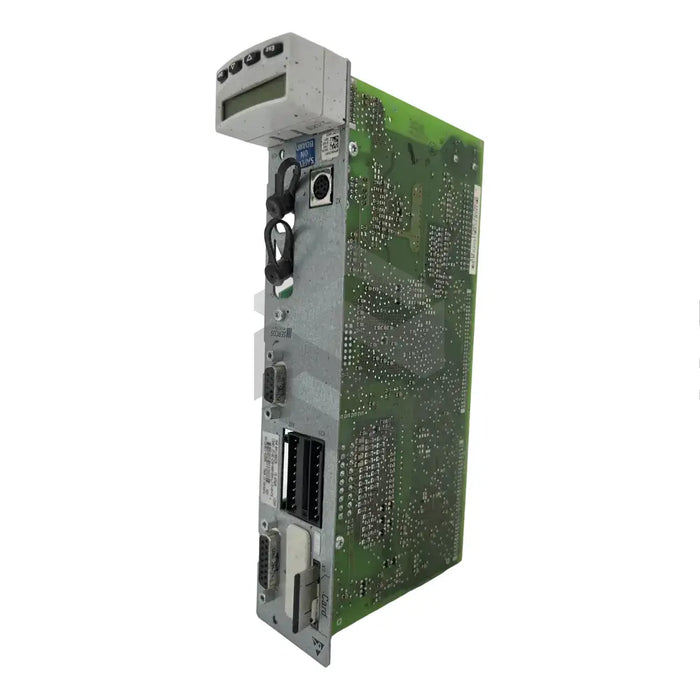

C image of CSH01.1C-SE-ENS-NNN-NNN-L1-S-NN-FW | Main (Front Left)

CSH01.1C-SE-ENS-NNN-NNN-L1-S-NN-FW

by Bosch Rexroth Indramat
$2,964.51 - $7,890.74
$7,890.74
$2,964.51 - $7,890.74
$7,890.74

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CSH01.1C-SE-ENS-NNN-NNN-L1-S-NN-FW is an advanced control section specifically designed for use within a drive control system. It utilizes a fiber optic SERCOS interface for data transmission and receives data through distinct pin assignments. Data storage, read and write operations are facilitated by a multimedia card. Among its standard features are a digital overload and short-circuit protection, separate power intakes for modules, and a one-year backup. Compliant with the chemicals ban decree, the unit comprises a Type 2 relay contact at the X31.1 and X31.2 connecting points and an RS 232 serial interface at the X2 connection point with MiniDin female connector. Note, only trained personnel should operate this control section and its applications are not meant for residential areas. Mounting must be vertical and assembly specifications should be strictly adhered to.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CSH01.1C-SE-ENS-NNN-NNN-L1-S-NN-FW

Use

Component of a drive control system

Interface

SERCOS interface connected with fiber optic cables

Data Storage

Multimedia card

Protection Features

Overload protection, Short circuit protection

Connections

Wire ends with ferrules for connections with screw terminal blocks

Power Consumption

Varies based on optional modules

Configuration

Customizable

Backup

One-year

RS 232 serial interface

At X2 connection point using a circular MiniDin female connector with eight poles

Operation

By trained personnel only

Residential Use

Not intended

Configuration

Only in specified configuration and combination of components

Mounting Orientation

Vertical

Circuit Breaker Compatibility

Compatible with circuit breakers with residual current, sensitive to universal current

Leakage Current and Housing Voltage

High when in use

Shipping

Worldwide.
