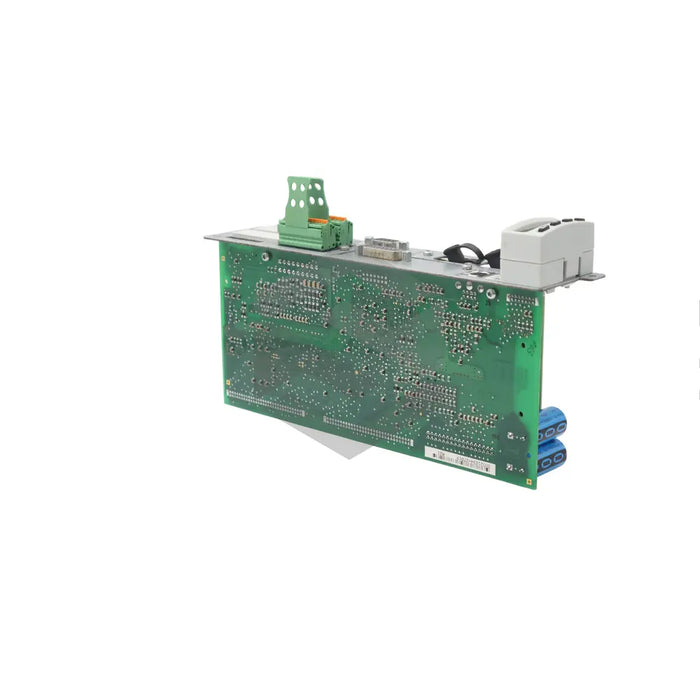

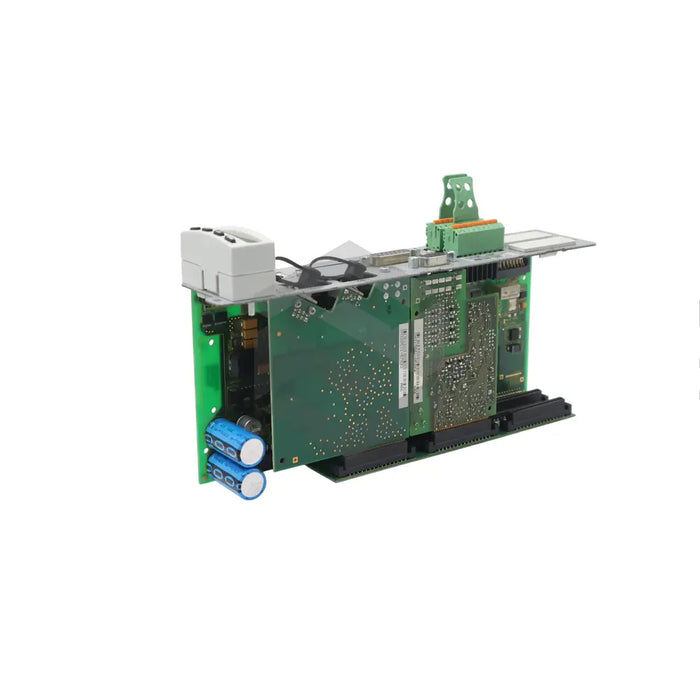

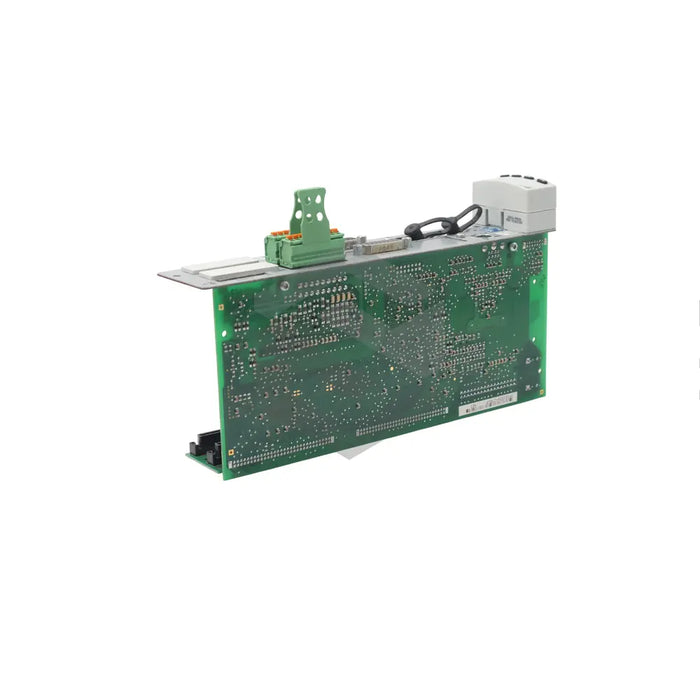

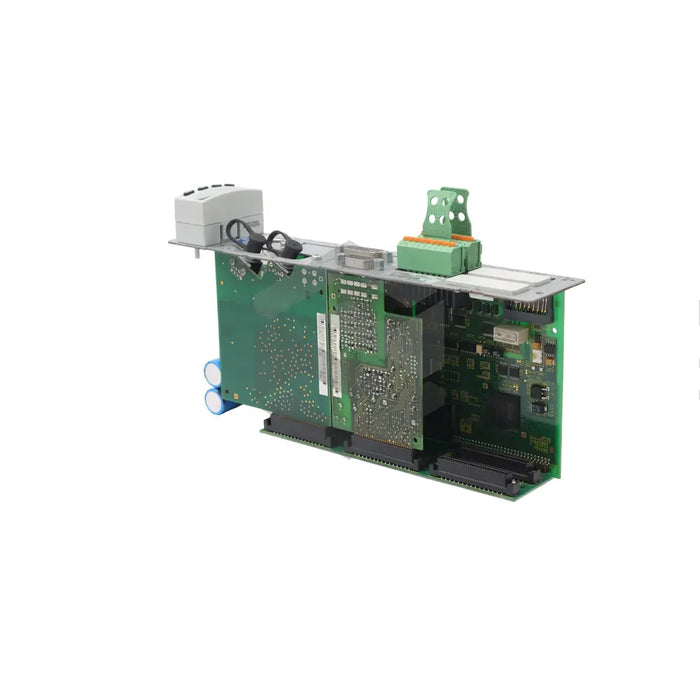

S image of CSH01.1C-SE-NNN-NNN-MA1-L2-S-NN-FW

CSH01.1C-SE-NNN-NNN-MA1-L2-S-NN-FW

by Bosch Rexroth Indramat
$4,153.29 - $5,061.96
$4,153.29
$4,153.29 - $5,061.96
$4,153.29
The CSH01.1C-SE-NNN-NNN-MA1-L2-S-NN-FW is a Bosch Rexroth Indramat advanced control section with enhanced analog channels showcasing improved resolution. Presented parameters such as velocity, current, and position controls are dependent on firmware versions. The device features two differential analog input channels demonstrating 12 bits resolution and a +/-10V voltage range. It requires contact with components on a conductive base and should only be used in its original, undamaged state. Adherence to national EMC regulations is necessary for operation. Equipped with in-built monitoring functions and requiring disconnection for component access exceeding a 50V voltage, the control section also includes vertical axis security measures. Designed to operate without power during cleaning or prolonged disuse, it comes with a backup support for one year. Other features include two analog output channels, specific distribution box requirements for multiple analog I/Os, high-side switches for digital outputs, and input current specifications for probe inputs. The device is delivered in conductive, rugged packaging globally.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

CSH01.1C-SE-NNN-NNN-MA1-L2-S-NN-FW

Control Type

Velocity, Current, and Position

Analog Input Channels

2 (differential)

Analog Input Resolution

12 bits

Analog Input Voltage

+/-10V

Usage Condition

Original state, not faulty

Temperature Tolerance

No extreme fluctuations

Compatibility

Manufacturer accessories, spare parts, and cables

Regulation Compliance

National EMC regulations

Component Safety

Disconnect components with >50V rating from mains before access

Vertical Axis Safety

Must be secured against dropping or falling

Power Connection

No connection when cleaning or unused

Analog Output Channels

2

Analog Output Voltage

+/-10V

Analog Output Resolution

12 bits

Digital Outputs

Realized with high-side switches

Probe Inputs Characteristics

Function as rapid inputs, controlled with bounce-free switching elements

Probe Input Current

2mA to 5mA

Transmission Rate

9.6kBaud to 115kBaud

Packaging

Conductive, rugged
