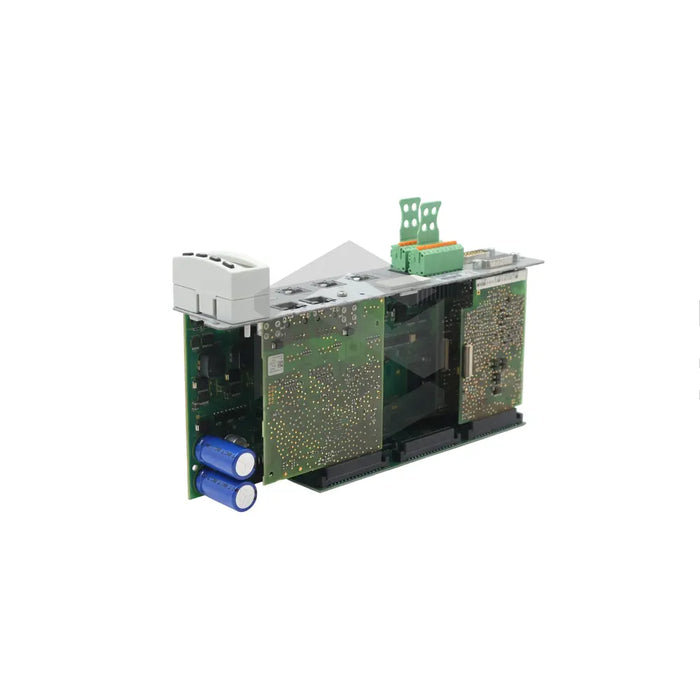

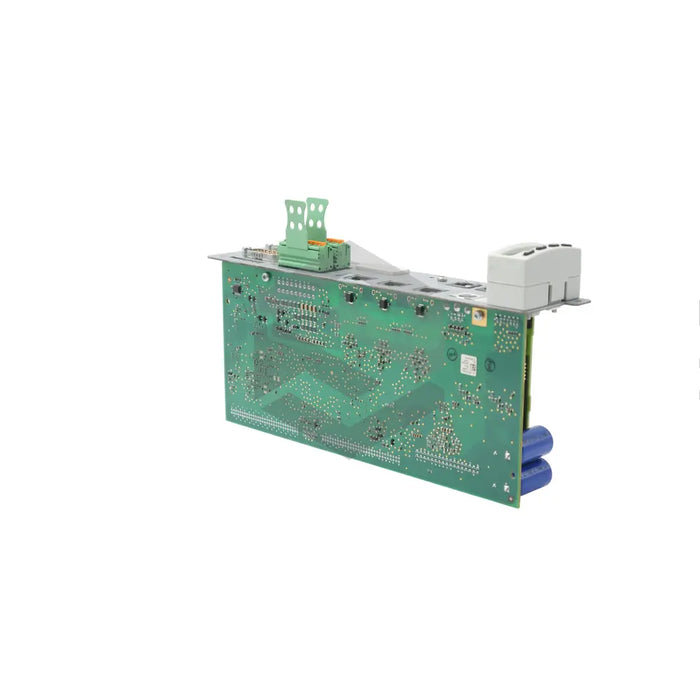

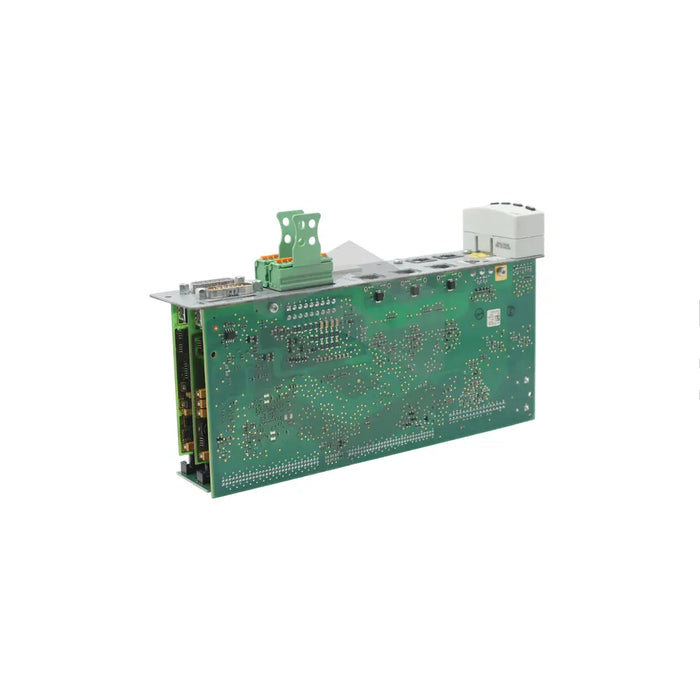

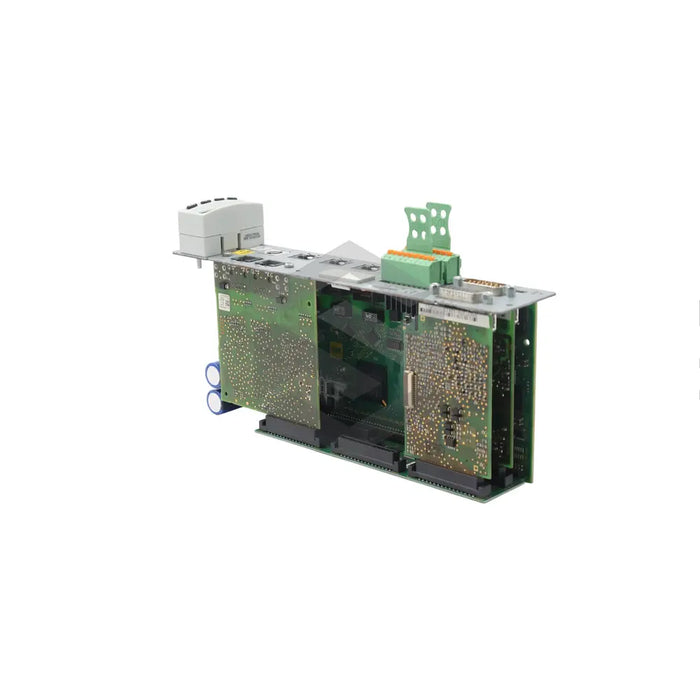

S image of CSH01.3C-ET-EN1-EN2-CCD-NN-S-NN-FW

CSH01.3C-ET-EN1-EN2-CCD-NN-S-NN-FW

by Bosch Rexroth Indramat
$2,466.59 - $7,253.57
$2,466.59
$2,466.59 - $7,253.57
$2,466.59

In Stock, Ships 1 - 3 Days

The CSH01.3C-ET-EN1-EN2-CCD-NN-S-NN-FW, developed by Bosch Rexroth Indramat, is an advanced control section from their CSH device series. This compact, state-of-the-art unit’s dimensions measure 103mm x 49.5mm x 241mm, and it features multiple digital and analog input-output ports and supports a memory card slot and control panel interface. This control section works optimally at temperatures between 0 to 40 degrees Celsius, with humidity under 90%, and possesses an IP20 international protection class, mandating protection against water condensation. It includes a serial interface connection point and requires a protective diode to safeguard against incorrect connections. The firmware is obtainable separately from Servo Supplier and is suitable for applications such as mounting, packaging and machine tool systems. Despite multiple Ethernet capabilities, this model should not be frequently mounted or dismounted. The digital I/Os necessitate an external power supply at specific connection points.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

CSH

Product Model

CSH01.3C-ET-EN1-EN2-CCD-NN-S-NN-FW

Type

Control Section

Input-Output Ports

Multiple digital and analog

Additional Features

Memory card slot at connection point X7, control panel interface at H1

Dimensions

103mm x 49.5mm x 241mm

Operating Conditions

0 to +40 degree Celsius, relative humidity below 90%

Protection Class

IP20

Connection Points

X2 for the serial interface, X31.8 and X31.9 for digital I/Os

Protection Measures

Protective diode against incorrect connection

Firmware

Order separately

Applications

Handling and mounting systems, packaging and food machines, machine tools

Restrictions

Not meant for frequent mounting and dismounting

Communication

Multi-Ethernet interfaces

Delivery

Servo Supplier with secure packing
