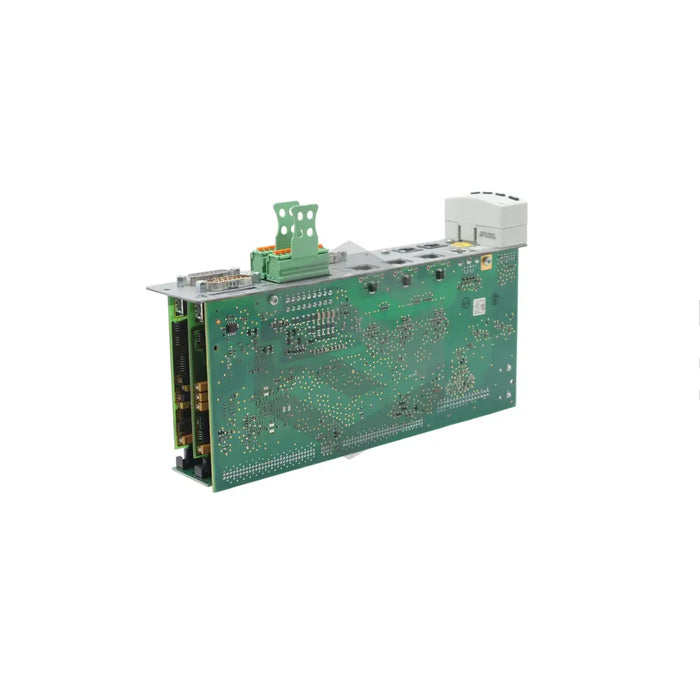

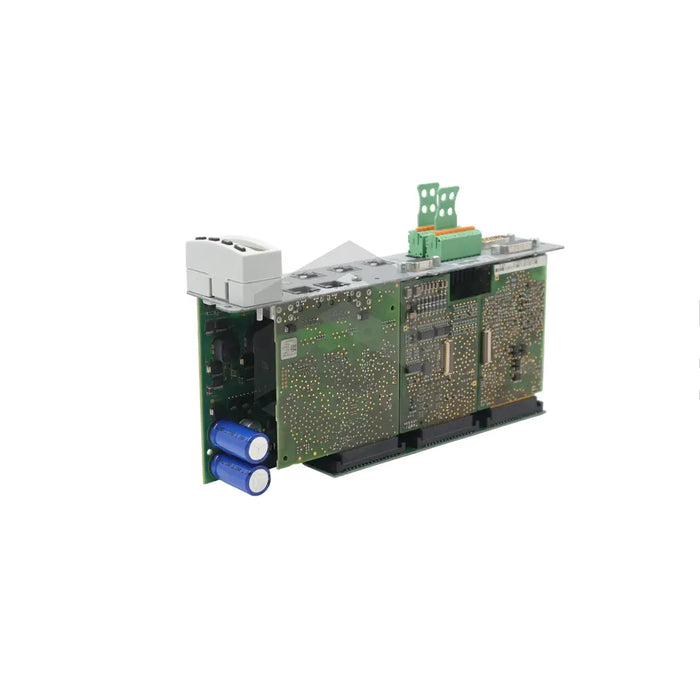

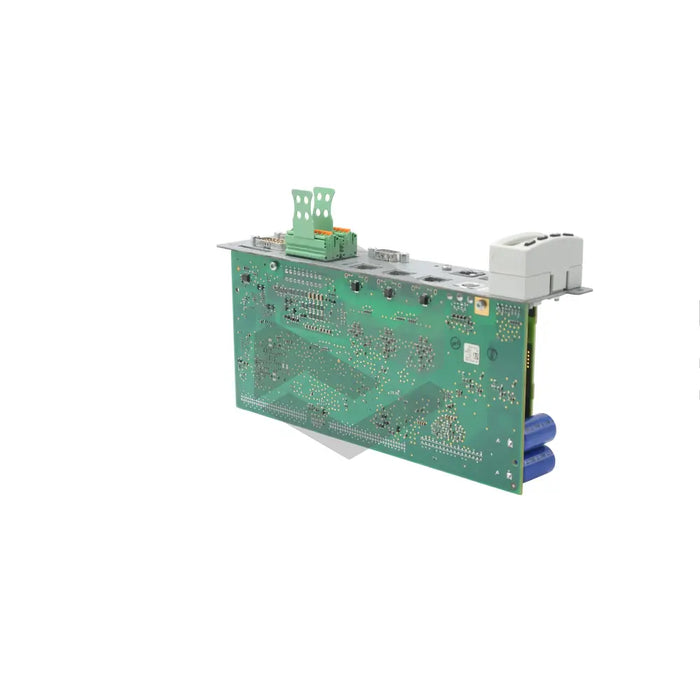

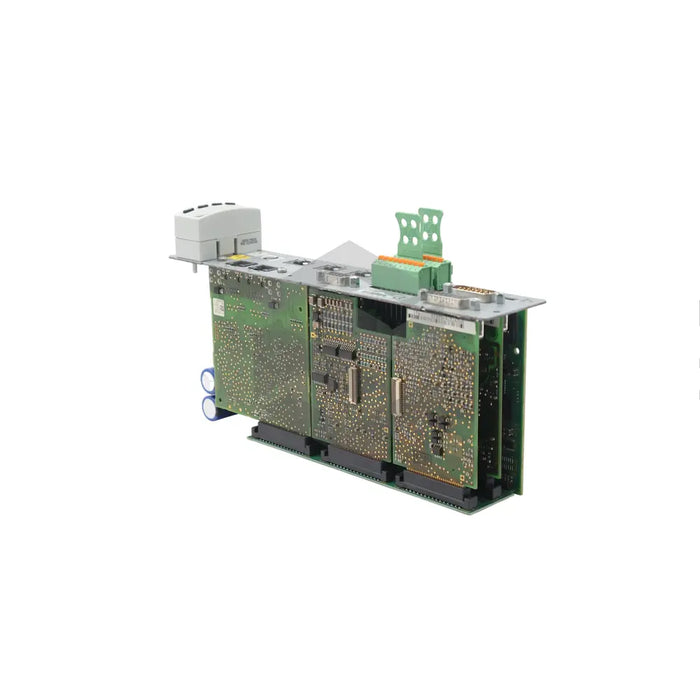

S image of CSH01.3C-ET-EN1-ENS-CCD-S2-S-NN-FW

CSH01.3C-ET-EN1-ENS-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,466.59 - $7,253.57
$2,466.59
$2,466.59 - $7,253.57
$2,466.59

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CSH01.3C-ET-EN1-ENS-CCD-S2-S-NN-FW is a sophisticated control unit with unique features for modern machinery applications. As a product of Bosch Rexroth, a reputable producer of AC servo motors, drive controllers, and power tools, its quality is notable. The unit is characterized by compatibility with encoders HSF and RSF at connection X4, control board memory at X7, and a control panel interface at H1. Notably, it provides optimal performance when operated between 0 to +40 degrees Celsius, with no more than 90% relative humidity. With dimensions of 103mm x 49.5mm x 241mm, its compactness enhances space-efficiency. This control unit requires an external supply voltage at X31.8 and X31.9 and should be safeguarded with a protective diode to prevent incorrect connection or voltage reversal. Furthermore, placing it away from electromagnetic radiation minimizes supply line noise. Contact points include X2 for serial interface and X24 and X25 for cross-communication.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

CSH01.3C-ET-EN1-ENS-CCD-S2-S-NN-FW

Product Category

Control Sections

Recommended Option

Option 1

Compatibility

With encoders HSF and RSF at connection point X4

Feature

Enables cross-communication drive

Connection Points

Memory card slot at X7, control panel interface at H1, digital I/Os at X31.8 and X31.9, serial interface at X2, cross-communication at X24 and X25

Size

103mm x 49.5mm x 241mm

Temperature Range for Optimum Data Transmission

0 to +40 degrees Celsius

Relative Humidity for Optimum Data Transmission

Below 90%

Protection Needs

Against incorrect connection and polarity reversal of the supply voltage

Placement Advice

At a safe distance from unnecessary electromagnetic radiation.
