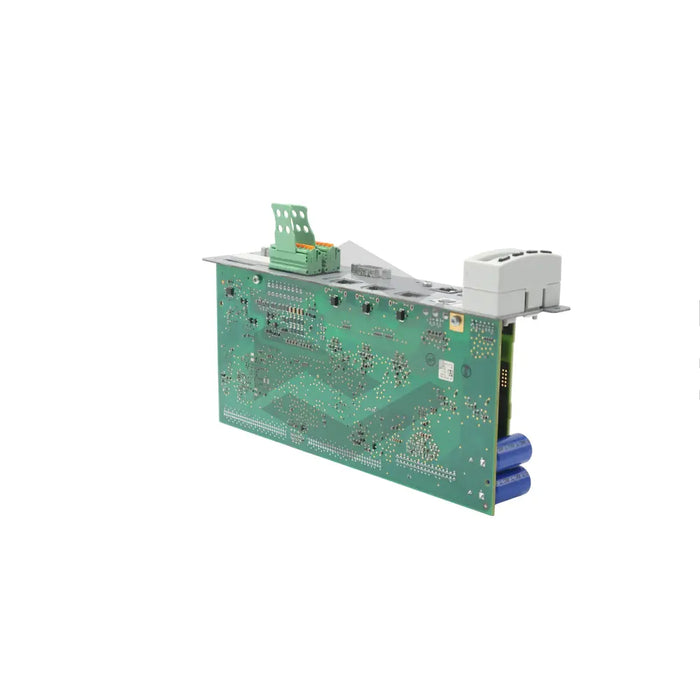

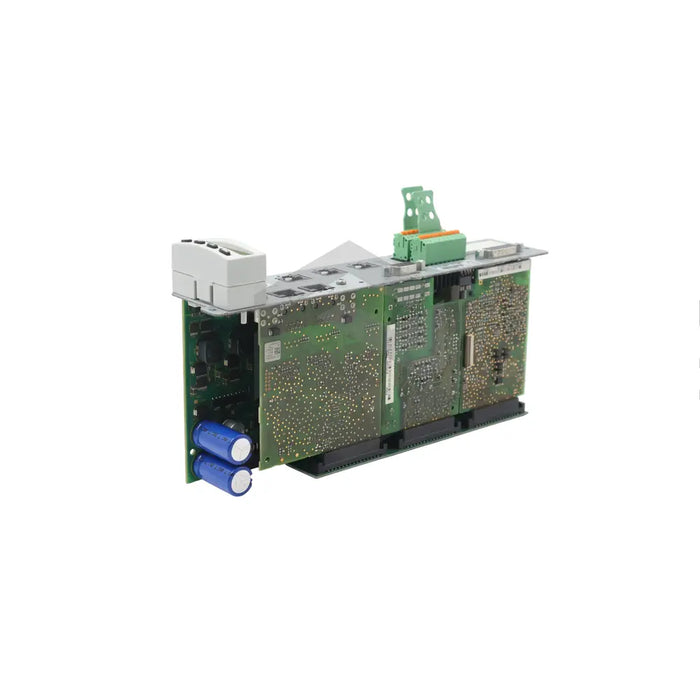

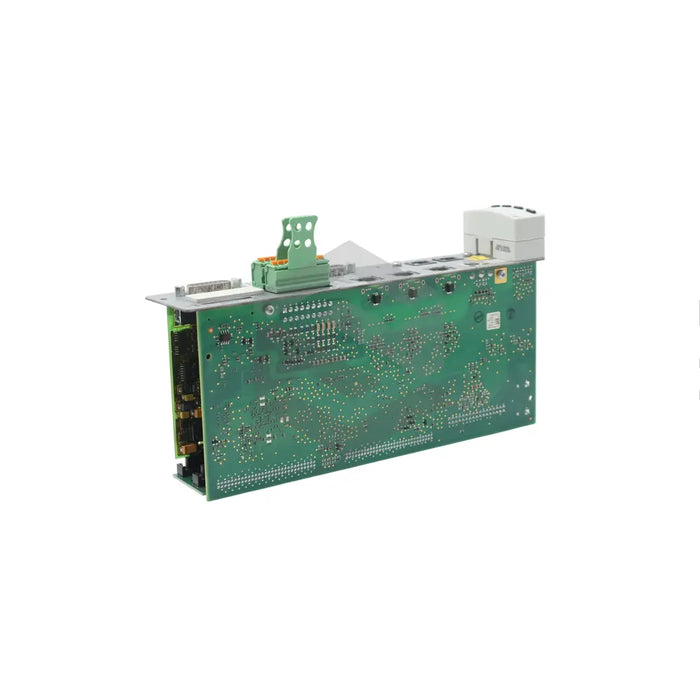

series image of CSH01.3C-ET-EN1-NNN-CCD-L2-S-NN-FW

CSH01.3C-ET-EN1-NNN-CCD-L2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSH01.3C-ET-EN1-NNN-CCD-L2-S-NN-FW, manufactured by Bosch Rexroth Indramat, is an exceptional industrial control unit designed with a single-axis and a distinct control panel. Developed to withstand challenging environments, it contains a high protection standard of IP20, shielding it from dust. Notable features include a multitude of digital input and output ports, a single-line display for operational updates, and safety measures preventing against incorrect power supply connection. Connection points X2, X24, and X25 are designated for serial interface and cross-communication respectively. Its compact size of 241mm x 103mm x 49.5mm facilitates easy installation. Ideal applications encompass handling and mounting systems, packaging, food, printing and paper processing machinery. Frequent affixing and removal are discouraged, and only specified equipment should be used in conjunction with this control unit.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: CSH01.3C-ET-EN1-NNN-CCD-L2-S-NN-FW
  • Positioning: Away from harmful electromagnetic radiation
  • Operating Environment: Industrial
  • Degree of Protection: IP20
  • Connectivity: X2 for serial interface, X24 and X25 for cross-communication
  • Protection: Protective diode in the power supply
  • Physical Size: 241mm x 103mm x 49.5mm
  • Ports: Digital input and output ports
  • Recommended Application: Handling and mounting systems, packaging, food machines, printing and paper processing machines
  • Version: Single-axis configurable version
  • Display: Control panel and single-line display
  • Additional Connectivity: Connection point H1 for the control panel interface
  • Usage Recommendation: Frequency mounting and dismounting not recommended
  • Additional Equipment: Only specified equipment may be used.
