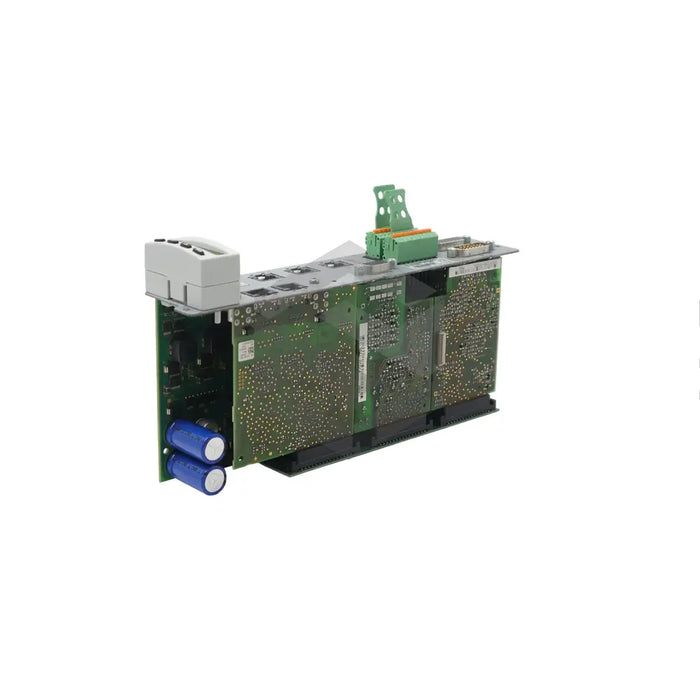

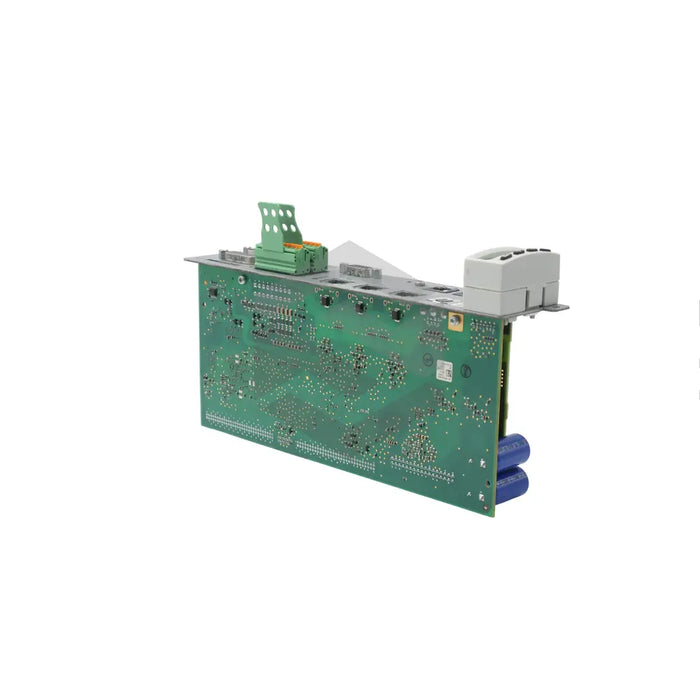

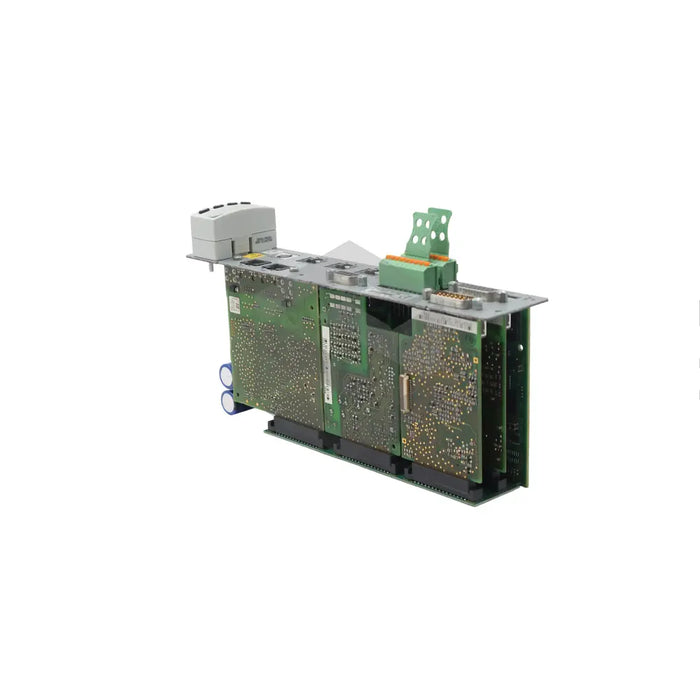

CSH01.3C-ET-EN2-MA1-CCD-L2-S-NN-FW
The Bosch Rexroth Indramat CSH01.3C-ET-EN2-MA1-CCD-L2-S-NN-FW is an industrial control section with a Safe Torque Off (STO) feature obtainable through an optional module. The STO function provides a vital safety measure that halts torque-generating energy, preventing unintentional motor activation by discontinuing the pulses at the IGBT switching gates and cutting off drive output power. Safety disconnection per STO standards is achieved via a two-channel opto-coupler blockage.
Notably, the control section features an encoder module, analog I/O extension module, and cross communication module. It encompasses the Bosch Rexroth MultiEthernet protocol for integrating into various Ethernet field bus systems including Sercos III, EtherCat, and Profinet, promoting open communication and numerous electronic functions. Firmware must be ordered separately, with identification details available on the firmware type plate. Specific control section details can be found on its respective type plate. The unit is also compatible with a standard control panel.
