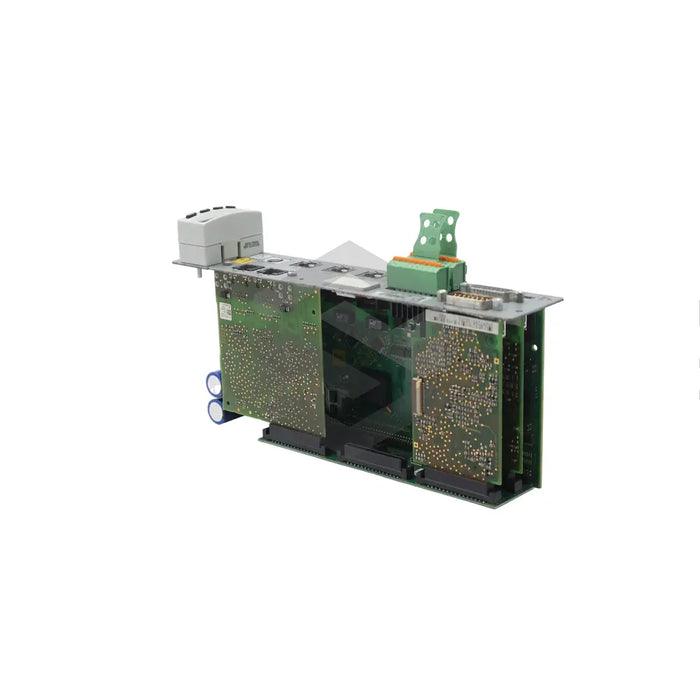

CSH01.3C-ET-EN2-MA1-CCD-NN-S-NN-FW

Request a quote
The CSH01.3C-ET-EN2-MA1-CCD-NN-S-NN-FW, a modular control section by Bosch Rexroth Indramat, integrates an analog I/O extension module, allowing increased versatility through additional analog input/output functions. With a voltage range of ±10 Volts, its two analog inputs and outputs allow for various tasks, including door release authorization and message transmission. The extension module boasts a 12-bit resolution across all analog channels and is designed for compatibility with Bosch products. The control unit also contains a cross communication module (CCD) which adheres to the IEEE 802.3 standard, enabling long cable connections up to 100 meters for interfacing with higher-level control units. It also supports shorter connections within control cabinets. The installed encoder module utilizes an EnDat 2.1 interface, ensuring effective transmission of position values from encoders. Finally, the device supports MultiEthernet through its Master communication module. The firmware must be separately purchased.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: CSH01.3C-ET-EN2-MA1-CCD-NN-S-NN-FW
  • Product Type: Modular Control Section
  • Module Type: Analog I/O Extension Module
  • Analog Inputs: 2
  • Analog Outputs: 2
  • Analog Channel Resolution: 12-bit
  • Voltage Range: ±10 Volts
  • Compatibility: Other Bosch Products
  • CCD Module Standard: IEEE 802.3
  • CCD Long Cable Support: 100 meters
  • Minimum Bending Radius (Flexible Installation): 48.75 millimeters
  • Minimum Bending Radius (Permanent Installation): 32.50 millimeters
  • CCD Short Cable Support: Devices Side by Side
  • Minimum Bending Radius (Short Cables): 120.50 millimeters
  • Encoder Interface: EnDat 2.1
  • Master Communication Module: Supports MultiEthernet
  • Additional Components: Firmware (Ordered Separately)
