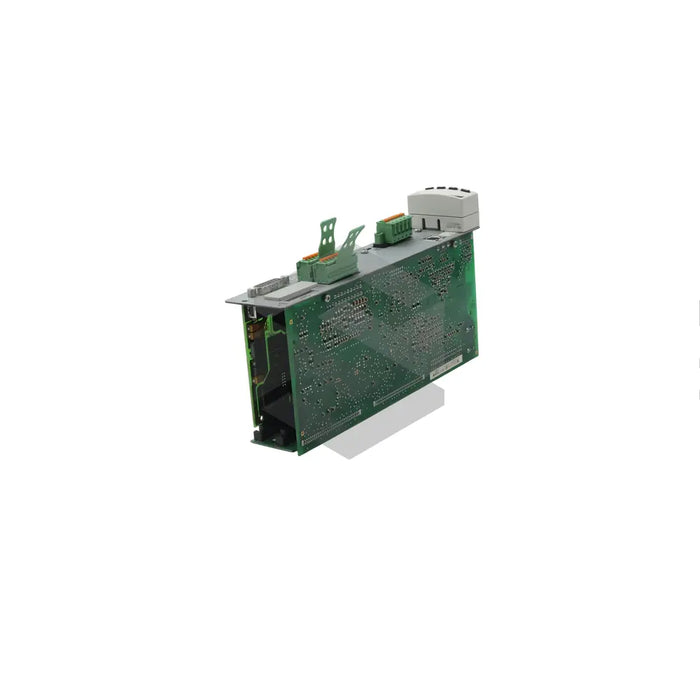

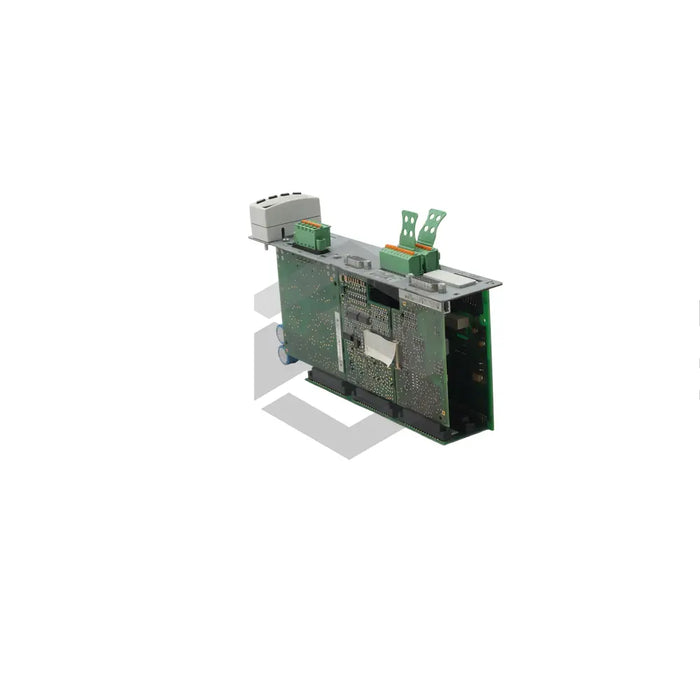

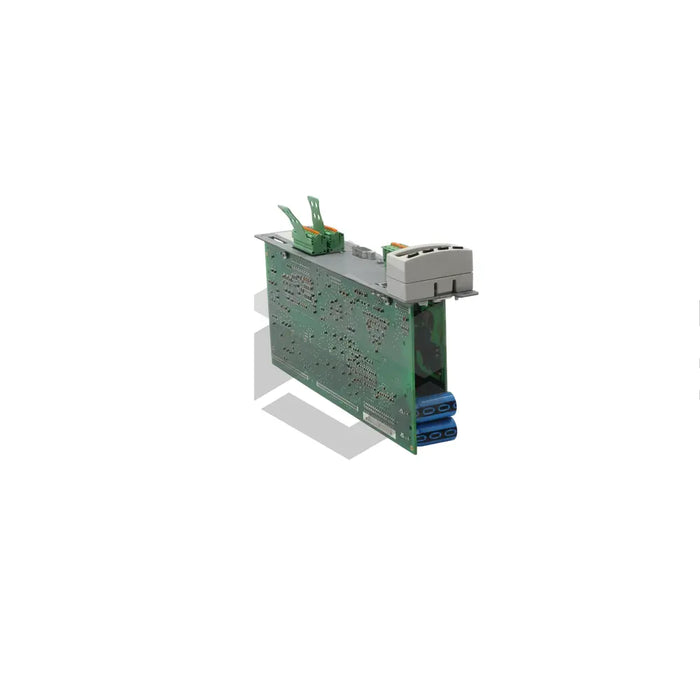

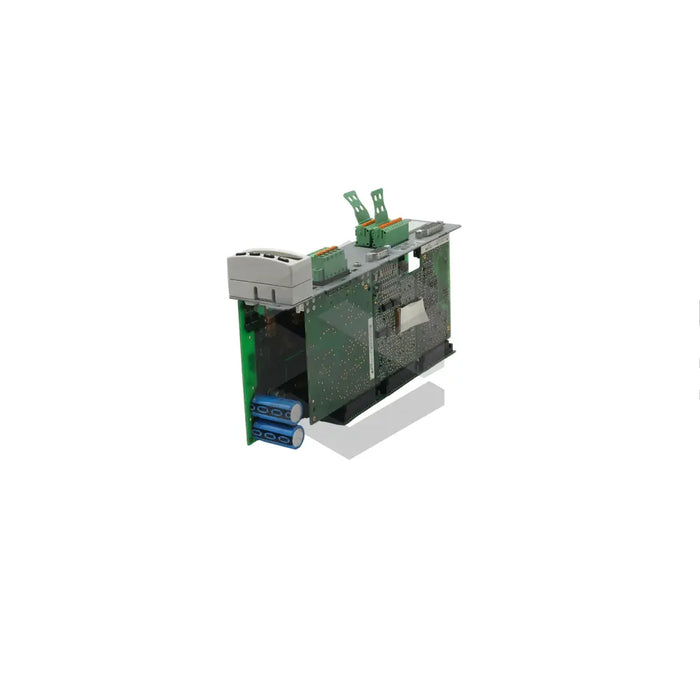

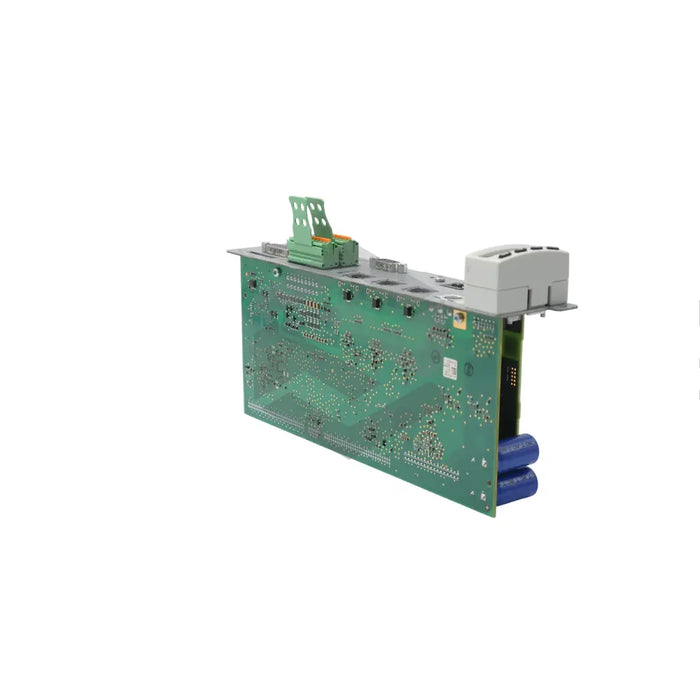

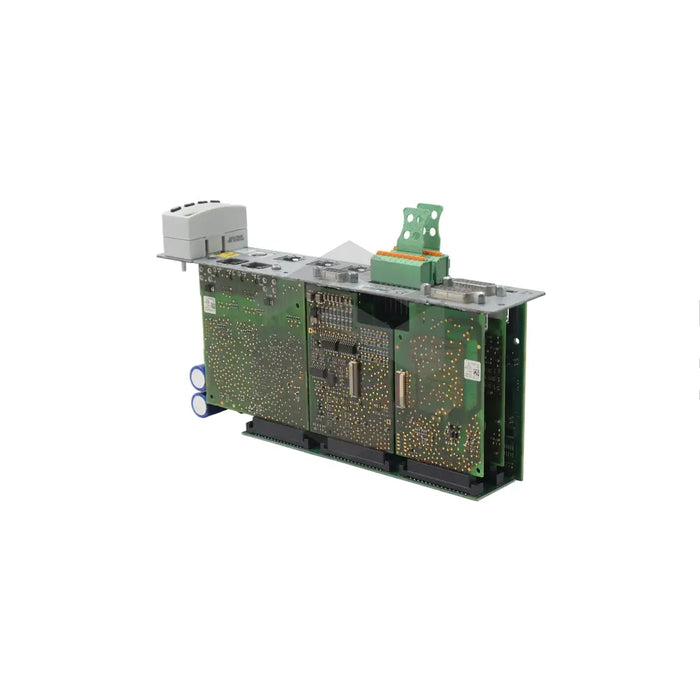

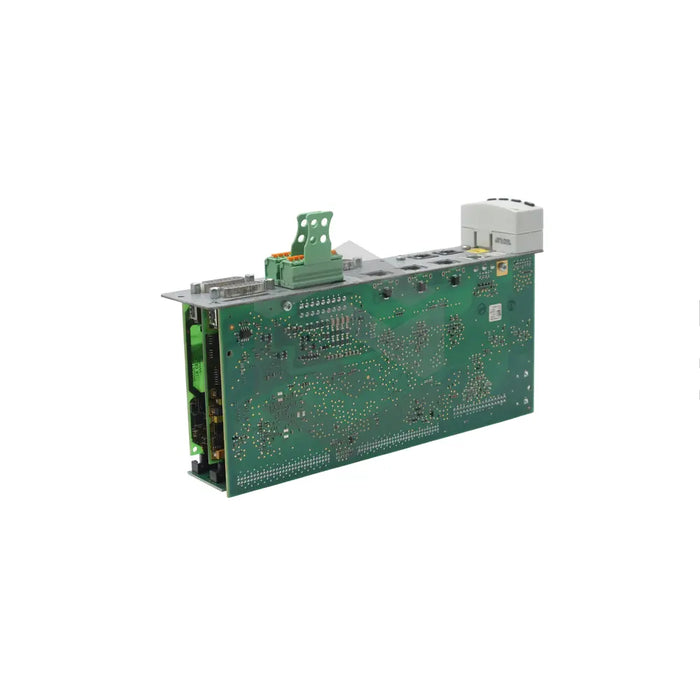

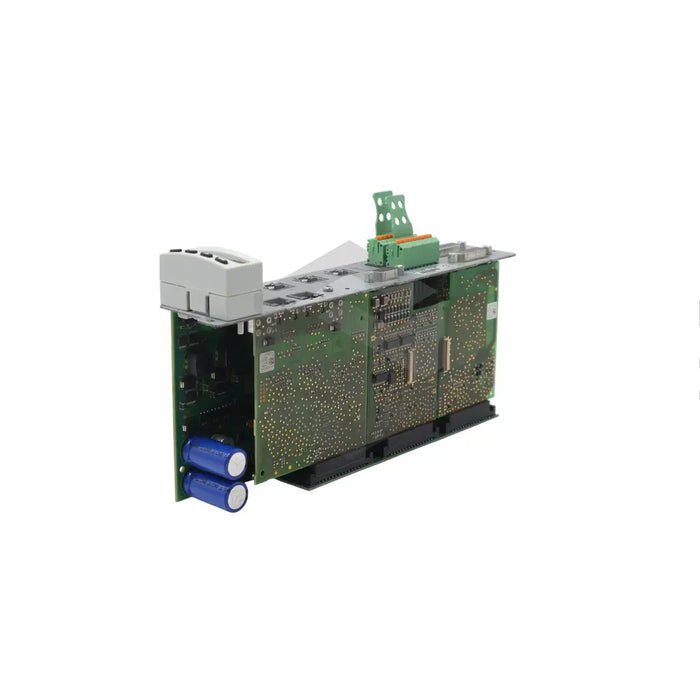

C image of CSH01.3C-ET-ENS-ENS-CCD-S2-S-NN-FW | Main (Front Left)

CSH01.3C-ET-ENS-ENS-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,466.59 - $7,253.57
$2,466.59
$2,466.59 - $7,253.57
$2,466.59

In Stock, Ships 1 - 3 Days

The CSH01.3C-ET-ENS-ENS-CCD-S2-S-NN-FW is a single-axis control section, designed and manufactured by Bosch Rexroth Indramat. It forms part of the IndraDrive drive controllers, mainly used in automation systems like mounting assemblies, packaging machinery, and printing devices. The unit facilitates precise control of electrical motors and their operation monitoring. It incorporates two built-in D-sub type standard encoder evaluation interfaces compatible with a 12V supply. A wide range of encoders, including 5V-TTL, sin-cos with Hiperface or EnDat 2.1 interfaces, can be accommodated. This model comes equipped with a standard control panel, enabling the execution of rudimentary commands, drive address setup, position data reference establishment, and analog output adjustments. Notably, it also contains a cross communication module, adhering to IEEE 802.3 standards, and a Multi-Ethernet interface, providing broader connectivity with various Ethernet bus systems. Safety measures are implemented through the SafeMotion interface, which ensures operational safety at different switching frequencies.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

IndraDrive

Product Use

Control electrical motors

Appliance

Handling and mounting systems, packaging and food machines, printing and paper processing machines

Product Model

CSH01.3C-ET-ENS-ENS-CCD-S2-S-NN-FW

Product Type

Configurable single-axis control section

Encoder Compatibility

5V-TTL square-wave encoder with reference track, sin-cos encoder (1 Vpp) with reference track, sin-cos encoder (1 Vpp) with the Hiperface interface, and the sin-cos encoder (1 Vpp) with the EnDat 2.1 interface

Encoder Supply Voltage

12V

Encoder Interface

D-sub type with 15 poles

Control Panel

Standard control panel with single-line display and operating keys

Communication Module

Corresponds with the IEEE 802.3 standard

Ethernet Interface

Multi-Ethernet

Ethernet Compatibility

SERCOS III, EtherCAT or ProfiNet

Safety Features

Safe maximum speed, safe door locking, safely-limited increment, and safely-monitored position

Switching Frequencies

2 kHz, 4 kHz, 8 kHz, 12 kHz, and 16 kHz
