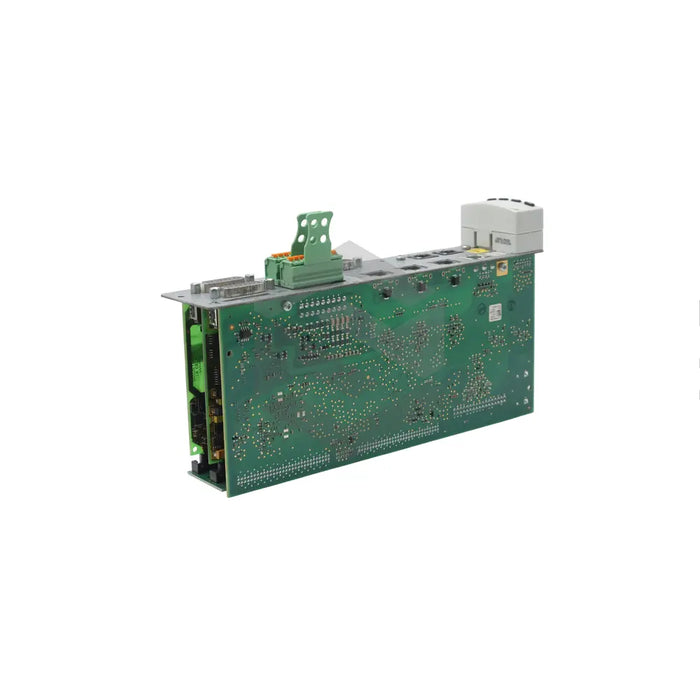

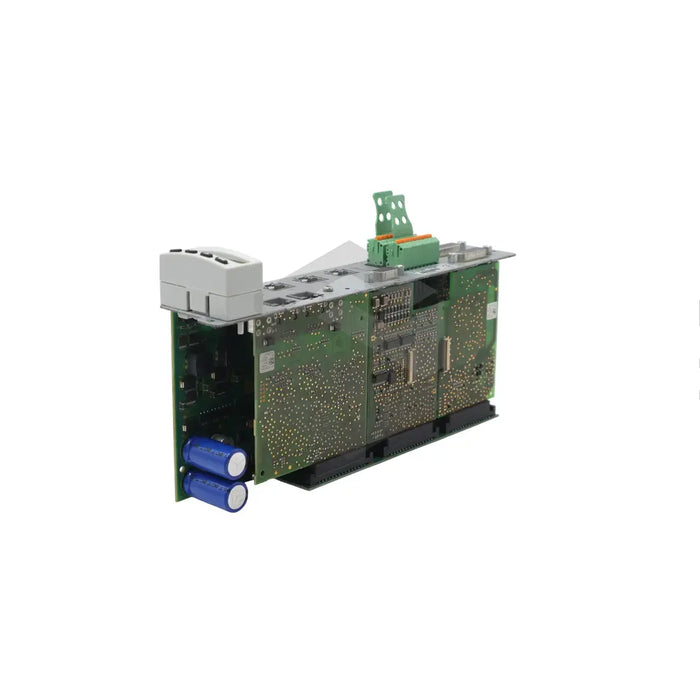

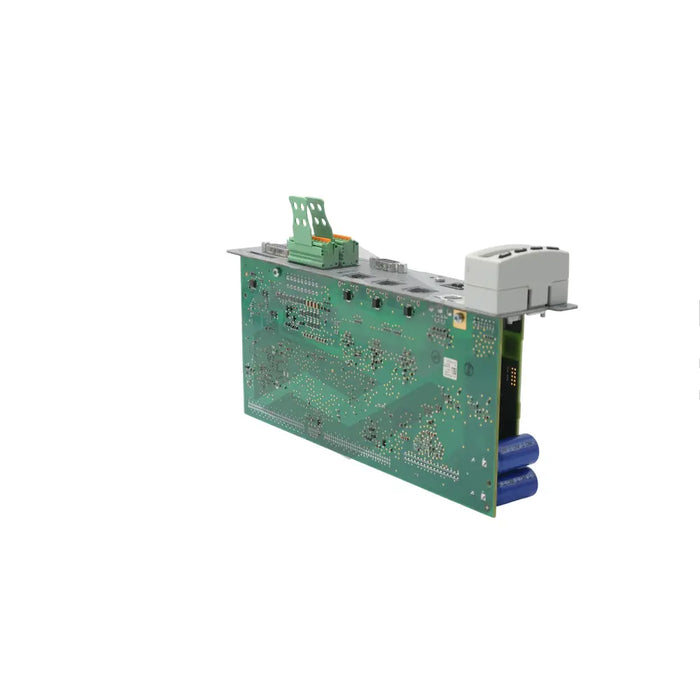

S image of CSH01.3C-ET-ENS-MA1-CCD-S2-S-NN-FW

CSH01.3C-ET-ENS-MA1-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,466.59 - $7,253.57
$2,466.59
$2,466.59 - $7,253.57
$2,466.59

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat's CSH01.3C-ET-ENS-MA1-CCD-S2-S-NN-FW belongs to their renowned IndraDrive product line. It's a compact single-axis control section that plays a significant role in controlling and monitoring electric motors. This modular piece boasts of a multi-Ethernet module that aligns with various reputable Ethernet field bus systems such as ProfiNet, SERCOS III, and EtherCAT. Moreover, it is embedded with LEDs that successfully report the data transmission status and network connectivity, assisting in swift fault detection and resolution. This control section also features an analog I/O extension that promotes the expansion of analog channels and is supported by firmware (to be purchased separately). Communication within system components is enabled by a cross communication interface according to IEEE 802.3 standard. It also comprises a standard encoder evaluation interface, facilitating encoder usage with a 12V supply voltage. The operating frequency of this section ranges between 2 kHz and 16 kHz.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

IndraDrive

Product Type

Control Sections

Specific Model

CSH01.3C-ET-ENS-MA1-CCD-S2-S-NN-FW

Configuration

Single-axis control section

Feature

Multi-Ethernet module

Utilized Field Bus Systems

ProfiNet, SERCOS III, EtherCAT

Equipment Indicator

LEDs for data transmission status and network connection

Extension

Analog I/O Extension

Analog Channels

2 differential analog input channels (±10V), 2 analog output channels, 12-bit resolution

Additional System Requirement

Firmware (ordered separately)

Communication Compliance

Cross communication interface, IEEE 802.3 standard

Additional Interface

Standard encoder evaluation interface, for encoders with a supply voltage of 12V

Supported Encoders

MSK motor encoder, sin-cos encoder (1 Vpp) with reference track, sin-cos encoder (1 Vpp) with the EnDat 2.1 interface, 5V-TTL square-wave encoder with reference track

Operating Frequencies

2 kHz, 4 kHz, 8 kHz, 12 kHz, 16 kHz
