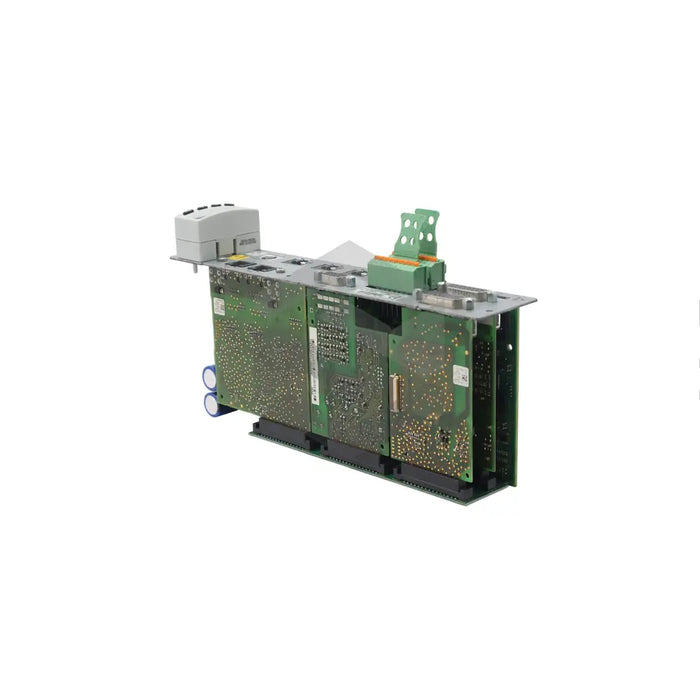

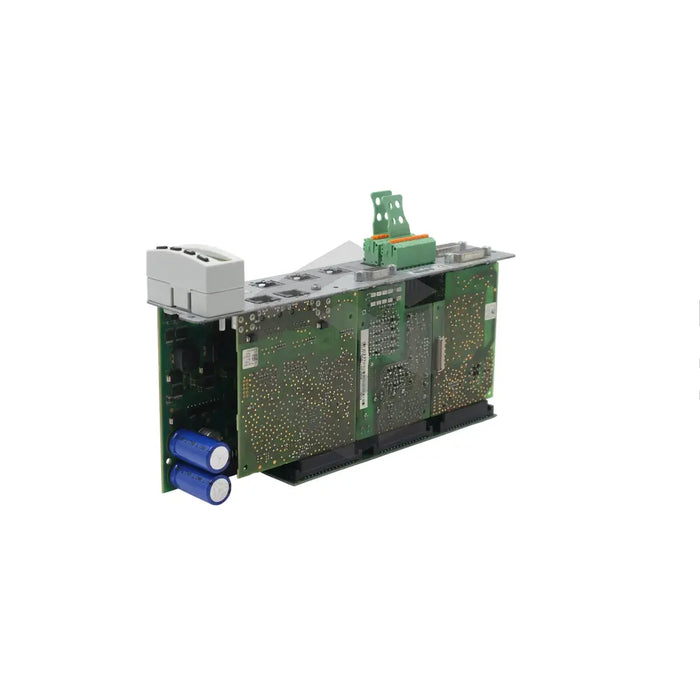

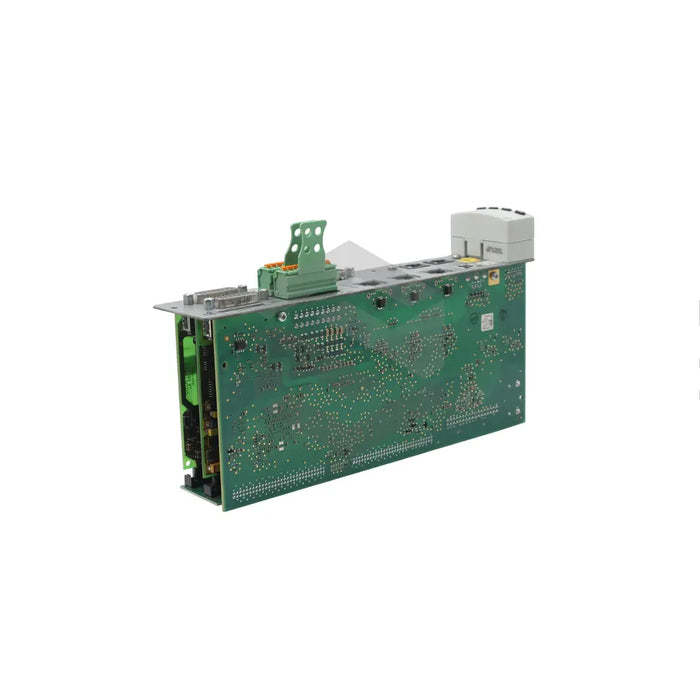

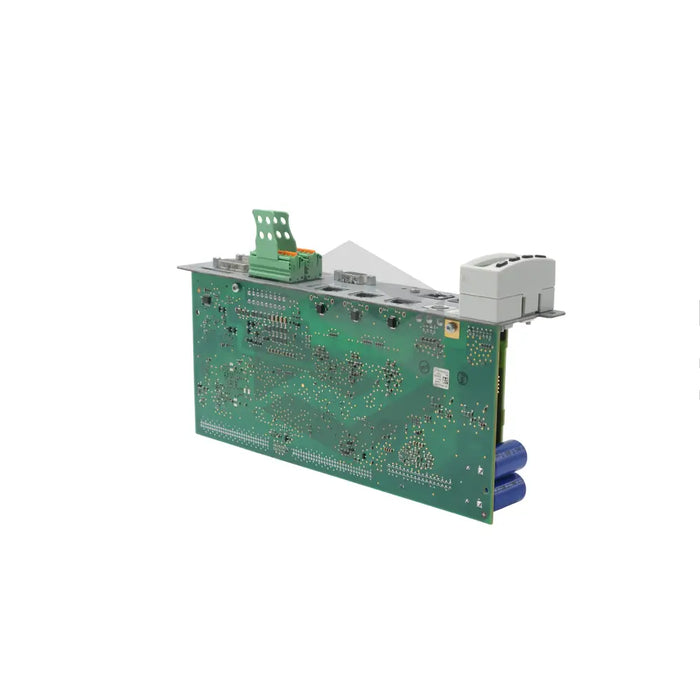

CSH01.3C-ET-ENS-MEM-CCD-L2-S-NN-FW
The CSH01.3C-ET-ENS-MEM-CCD-L2-S-NN-FW, crafted by Bosch Rexroth Indramat, is a premier model of the high-performance ADVANCED CSH control sections line, operated within Rexroth IndraDrive drive system. Enabling seamless integration with other system components, this compact drive controller features a Multi-Ethernet interface for easy connection with various Ethernet field bus systems. It is equipped with an encoder emulation interface that isolates signals from the circuit board, eliminating the necessity for external power supply. It supports several encoders with a 12V supply voltage, such as the sin-cos encoder with EnDat 2.1 and Hiperface, or the 5V-TTL square-wave encoder, all presenting an inrush current of 4A and a maximum pulse width of 100ms. The incorporated LED lights serve to simplify troubleshooting efforts by indicating the module's functioning status. The safety of the user is also solidified with the Safe Torque Off (STO) module that prevents unintentional drive restarts, ensuring energy-efficient operation. This control module requires firmware for operation.
30 Day Warranty
Technical Specifications
