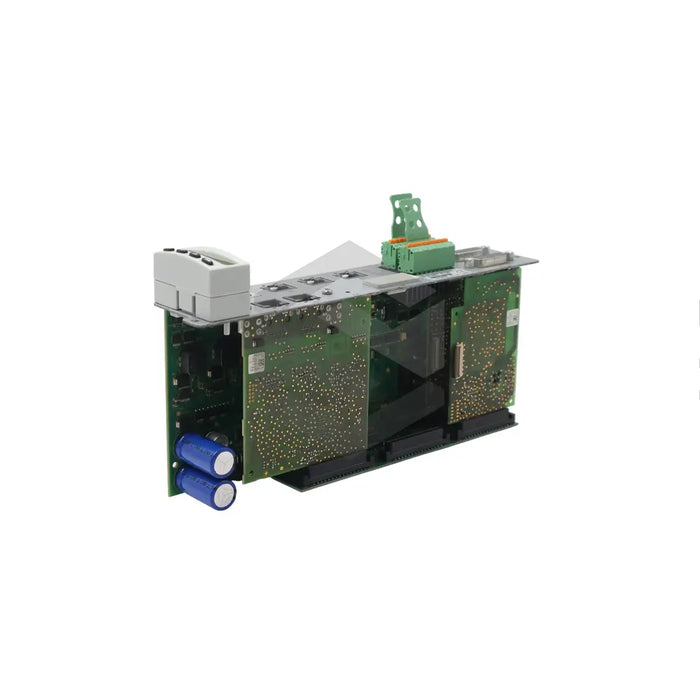

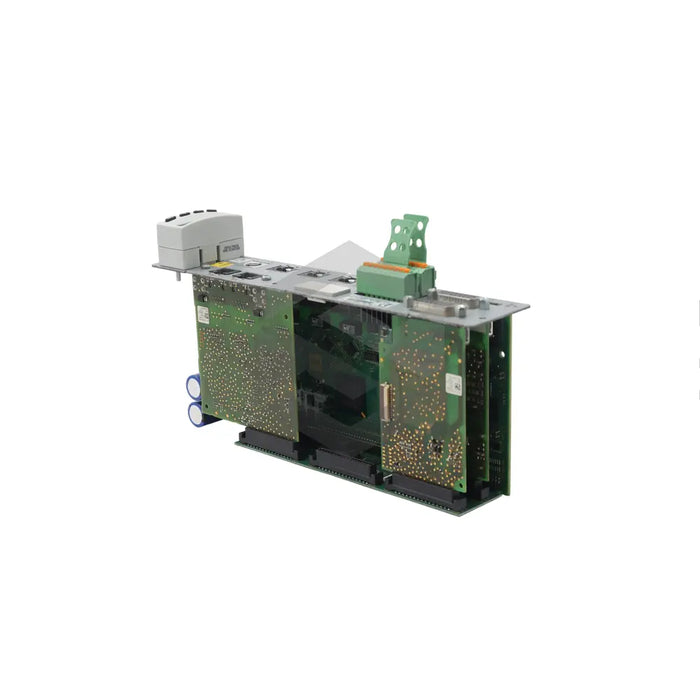

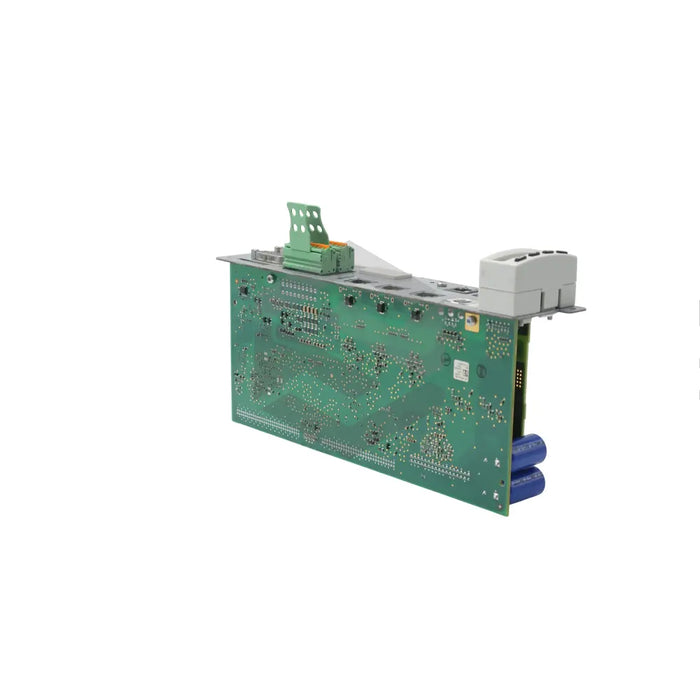

S image of CSH01.3C-ET-ENS-MEM-CCD-NN-S-NN-FW

CSH01.3C-ET-ENS-MEM-CCD-NN-S-NN-FW

by Bosch Rexroth Indramat
$2,466.59 - $7,253.57
$2,466.59
$2,466.59 - $7,253.57
$2,466.59

In Stock, Ships 1 - 3 Days

The CSH01.3C-ET-ENS-MEM-CCD-NN-S-NN-FW is a high-performance, flexible control section produced by Bosch Rexroth Indramat. It is part of the IndraDrive drive system and is primarily used in machine tools and mounting equipment. Designed for industrial use, the product is classified as category C3 according to IEC 61800‑3, indicating it could generate high-frequency interference in residential areas. For secure and vibration-resistant connections, it features spring terminals and screw terminal blocks. It includes a standard control panel displaying operational states and diagnostics. Additionally, the control section supports encoders with a 12V supply voltage managed by a standard encoder evaluation interface. It also has an encoder emulation interface which distinguishes absolute value and incremental encoder signaling. For integration into Ethernet field bus systems such as ProfiNet, SERCOS III, and EtherCAT, these units are also equiped with a Multi-Ethernet module.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

CSH Series from ADVANCED family of control sections

Usage

Machine tools and handling and mounting equipment

Product Category

C3 according to IEC 61800‑3

Connection Points Features

Equipped with spring terminals and screw terminal blocks

Control Panel

Standard panel with a single-line display

Encoder Connection

Standard encoder evaluation interface for encoders with a supply voltage of 12V

Compatible Encoders

Sin-cos encoder (1 Vpp) with EnDat 2.1 interface, Sin-cos encoder (1 Vpp) with Hiperface, MSK motor encoder, 5V-TTL square-wave encoder with reference track

Special Feature

Encoder emulation interface for evaluating absolute value and incremental encoder signals

Additional Module

Multi-Ethernet module available for integration into Ethernet field bus systems such as ProfiNet, SERCOS III, EtherCAT
