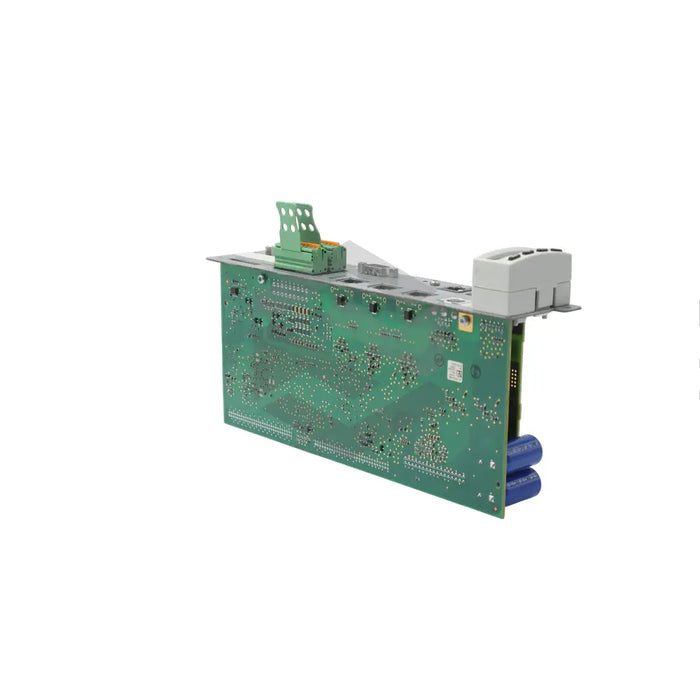

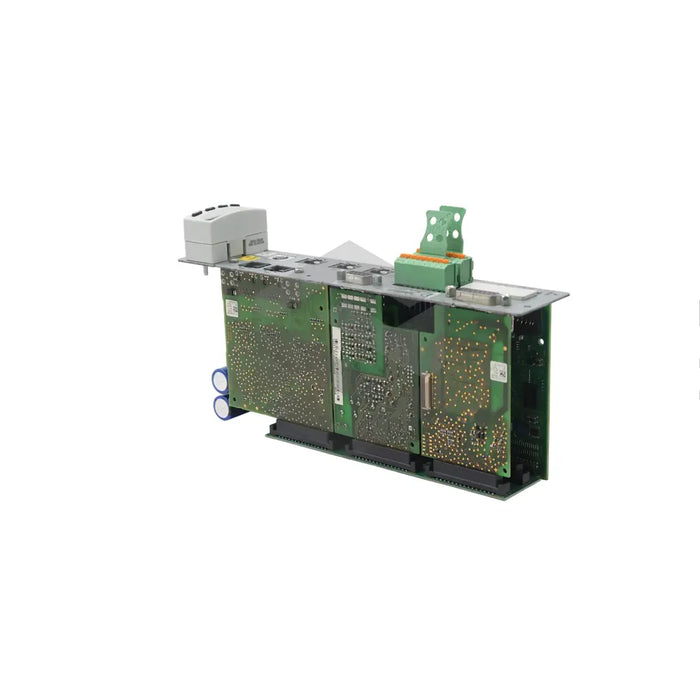

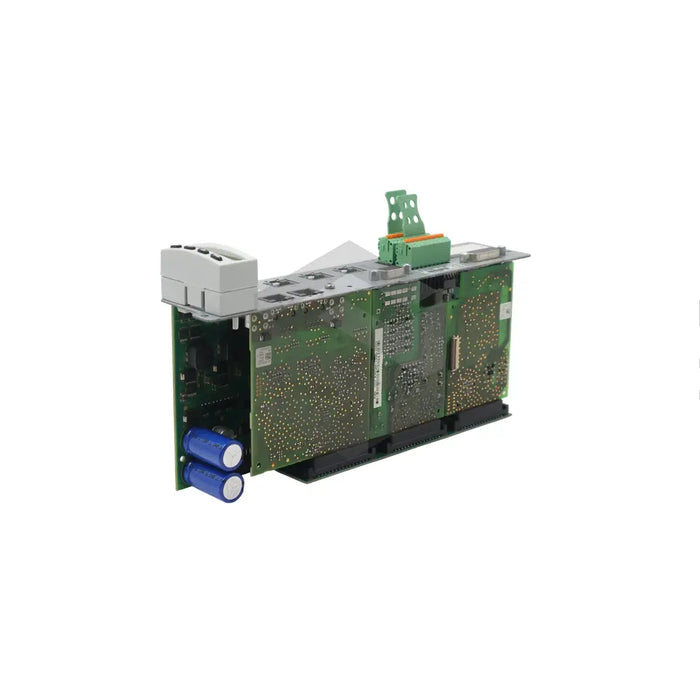

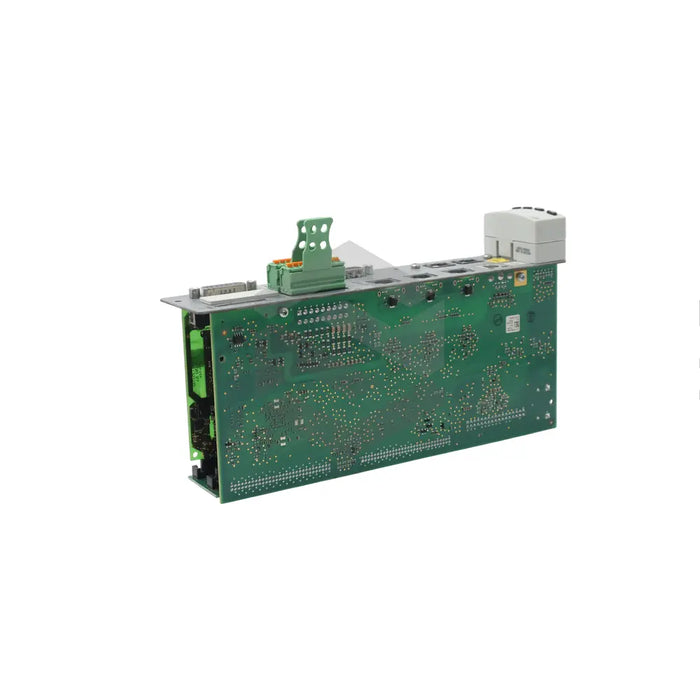

S image of CSH01.3C-ET-ENS-NNN-CCD-L2-S-NN-FW

CSH01.3C-ET-ENS-NNN-CCD-L2-S-NN-FW

by Bosch Rexroth Indramat
$2,466.59 - $7,253.57
$2,466.59
$2,466.59 - $7,253.57
$2,466.59

In Stock, Ships 1 - 3 Days

The CSH01.3C-ET-ENS-NNN-CCD-L2-S-NN-FW, a product of Bosch Rexroth, is a high-performance single-axis control unit with superior adaptability and flexibility. Ideal for an array of applications, it serves seamlessly in food processing, packaging, printing, and paper processing machines, as well as machine tools. It supports 2 kHz to 16 kHz switching frequencies and possesses a D-sub type encoder evaluation interface with 15 poles. The component can be connected to various 12V supply voltage encoders, such as sin-cos encoder and the MSK encoder. Notable is the Safe Torque Off (STO) feature that promotes user safety by preventing accidental activation of the drive. This model utilizes a Multi-Ethernet module for communication, enabling easy integration into ProfiNet, SERCOS III, and EtherCAT field bus systems. Users can interact with the system through a standard control panel, although firmware for this model must be ordered separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

CSH Single-Axis Control

Product Model

CSH01.3C-ET-ENS-NNN-CCD-L2-S-NN-FW

Typical Inrush Current

4A

Switching Frequencies

2 kHz, 4 kHz, 8 kHz, 12 kHz, 16 kHz

Encoder Interface

D-sub type with 15 poles

Encoder Supply Voltage

12V

Compatible Encoders

sin-cos encoder (1 Vpp) with reference track, 5V-TTL square-wave encoder with reference track, sin-cos encoder (1 Vpp) with the EnDat 2.1 interface, and the MSK encoder

Safety Feature

Safe Torque Off (STO)

Communication Module

Multi-Ethernet

Ethernet Field Bus Systems

ProfiNet, SERCOS III, EtherCAT

Cross Communication Interface Standard

IEEE 802.3

Control Panel Features

Four operating keys and a single-line display
