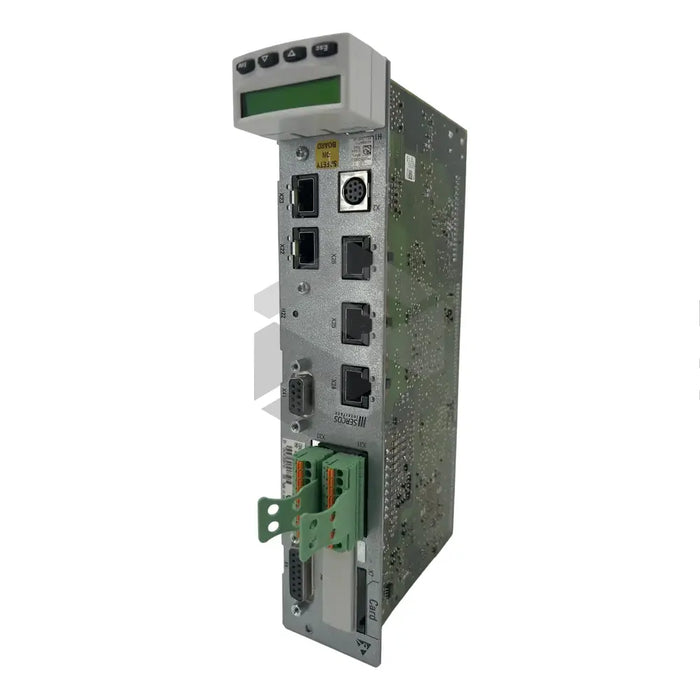

C image of CSH01.3C-ET-ENS-NNN-CCD-S2-S-NN-FW | Main (Front Left)

CSH01.3C-ET-ENS-NNN-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$1,703.54 - $4,413.80
$4,413.80
$1,703.54 - $4,413.80
$4,413.80

In Stock, Ships 1 - 3 Days

The CSH01.3C-ET-ENS-NNN-CCD-S2-S-NN-FW is a high-performance INDRA Drive control unit, manufactured by the reputable Bosch Rexroth Indramat. This control unit forms a critical component of drive controllers, primarily functioning to control and monitor electric motors within systems like machine tools and assembly equipment. Notably, it belongs to the CSH Design-3 line, offering excellent system connectivity with spring and screw terminal blocks for secure connection points. This product fits best in industrial settings, owing to its ability to resist vibrations and its C3 category under IEC 61800‑3. However, when used in residential environments, additional interference suppression measures are needed. The control unit is compatible with various encoders, its interface can accommodate a 12V supply voltage, and it comes with a standard control panel. Firmware compatibility is available, but must be separately procured. For safety, features like safely-limited speed, door locking, and monitored positioning are built in.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

CSH01.3C-ET-ENS-NNN-CCD-S2-S-NN-FW

Use

Control Electric Motors and Monitor Operations

Industry

Machine tools and Handling and Mounting Equipment

Design

3 line of CSH control sections

Connection Type

Spring Terminals and Screw terminal blocks

Category

C3 according to IEC 61800‑3

Interference Suppression Measures

Required for public low-voltage mains supplying residential areas

Switching Frequencies

2 kHz, 4 kHz, 8 kHz, 12 kHz, and 16 kHz

Firmware

Supported but ordered separately

Safety Features

Safe Motion, safe door locking, safely-limited speed, safely-monitored position, safe homing procedure

Accepted Encoders

Sin-cos encoder (1 Vpp) with EnDat 2.1, Sin-cos encoder (1 Vpp) with Hiperface, 5V-TTL square-wave encoder with reference track, MSK encoder

Voltage

12V

Control Panel

Standard control panel for setting drive address, accessing error memory, establishing position data reference.
