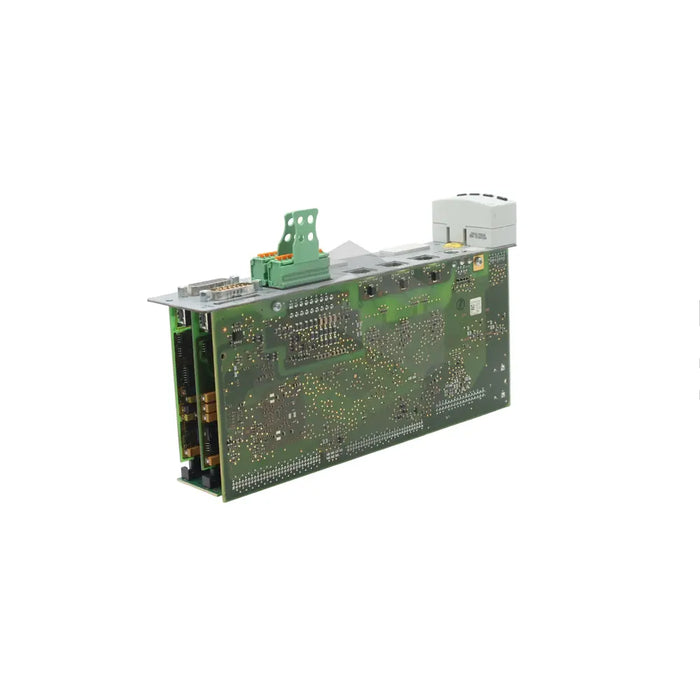

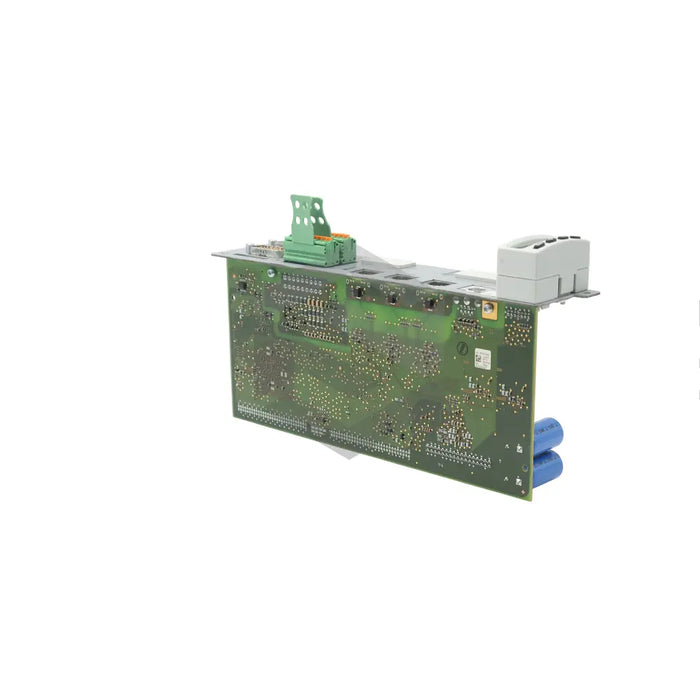

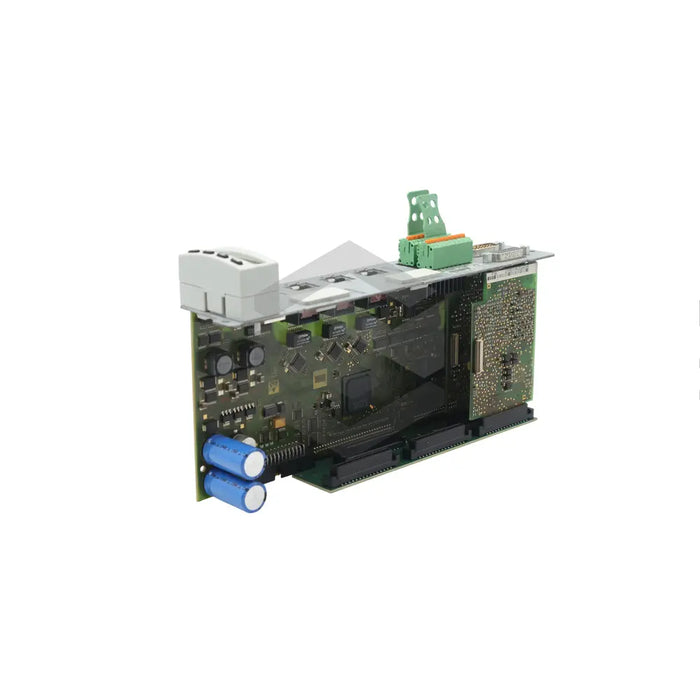

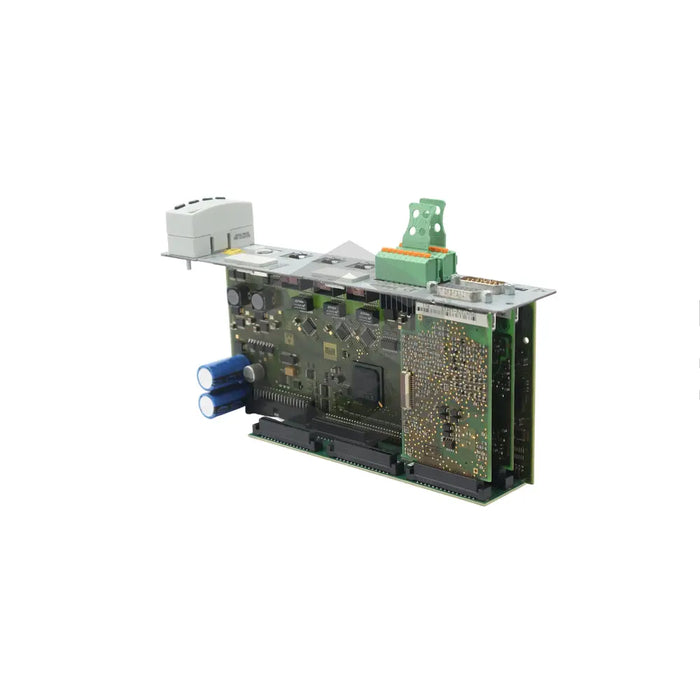

S image of CSH01.3C-NN-EN1-MA1-CCD-NN-S-NN-FW

CSH01.3C-NN-EN1-MA1-CCD-NN-S-NN-FW

by Bosch Rexroth Indramat
$3,161.07 - $5,955.00
$3,161.07
$3,161.07 - $5,955.00
$3,161.07

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CSH01.3C-NN-EN1-MA1-CCD-NN-S-NN-FW is an advanced control section with a single-axis operation. It is not compatible with the manufacturer's comfort control panel but contains an EN1 optional module suitable for encoder systems with an 8VDC or 18.2VDC peak-to-peak supply voltage. The unit includes two Type 2 probe inputs and must not operate without its associated drive controller. Use of this section necessitates adherence to operating, maintenance and safety guidelines, and repairs should only be done by authorized personnel. The device features a 100Base-TX compatible cross-communication module following Ethernet and IEEE 802.3u standards and includes a 15-pin female D-Sub connector for higher resolution analog channels. The unit's installation must adhere to the application's EMC requirements and should be disconnected from the power supply when repairing components with over 50V voltage potential. Global shipping is available for this product.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CSH01.3C-NN-EN1-MA1-CCD-NN-S-NN-FW

Control Section Type

Single Axis Advanced Control Section

Comfort Control Panel Compatibility

Not compatible

Optional Module

EN1 compatible with encoder systems with supply voltage 8VDC or 18.2VDC

Operational Environment

Not allowed underwater

Probe Inputs

Type 2, 24V voltage rating and a 3mA current rating

Usage Requirement

Cannot be used without the related drive controller

Digital Outputs Usage

Cannot be used at low-resistance sources

Cross-Communication Module

Ethernet standards, 100Base-TX compatibility, IEEE 802.3u standards

Safety Technology Module

Not included

Encoder Evaluation

Supports resolver and HSF encoder evaluation

Additional Module

MA1, connected by a 15-pin female D-Sub connector, provides better resolution analog channels

Interface

RS 232 Serial interface

Installation Requirement

Must be done according to the appropriate EMC requirements

Safety Requirement

Must be removed from the connected power supply with more than 50V voltage potential before accessing its components

Shipping

Global
