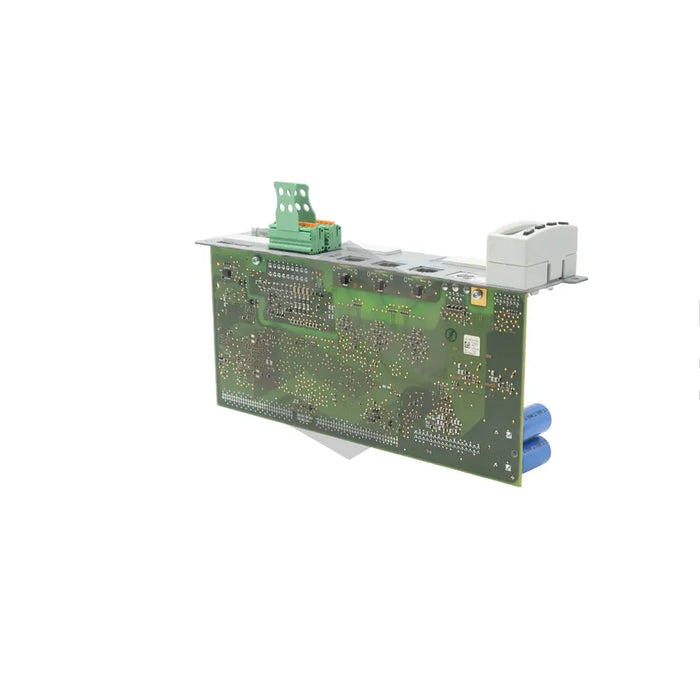

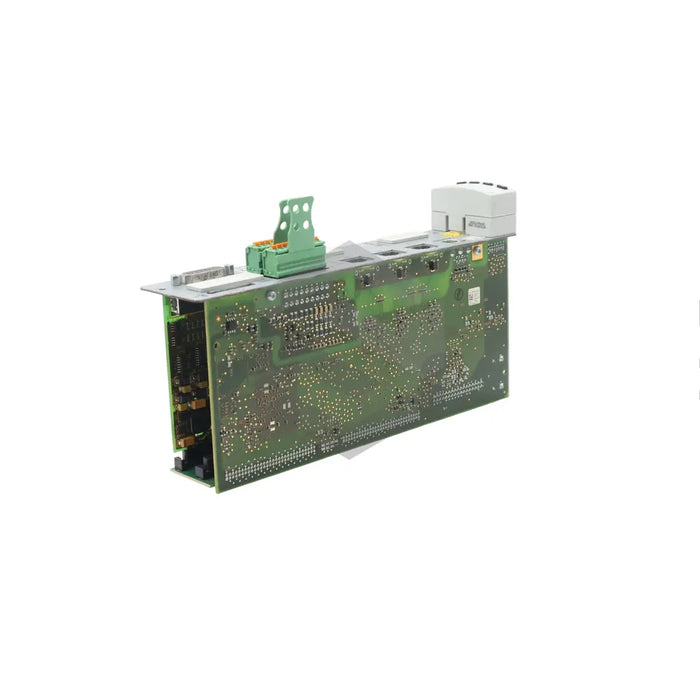

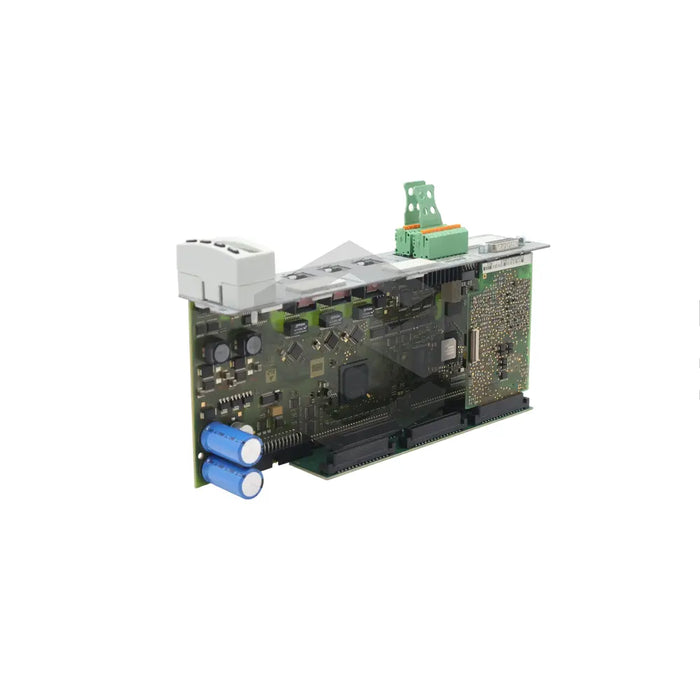

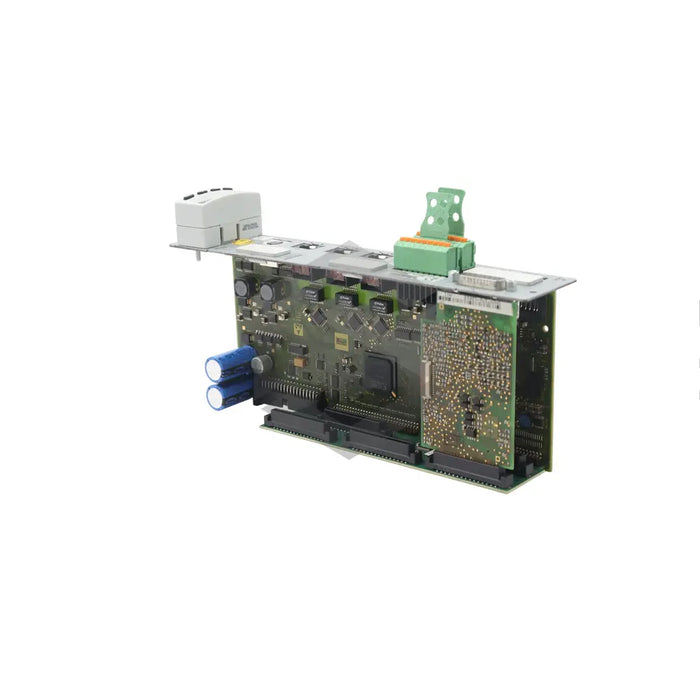

S image of CSH01.3C-NN-EN1-NNN-CCD-NN-S-NN-FW

CSH01.3C-NN-EN1-NNN-CCD-NN-S-NN-FW

by Bosch Rexroth Indramat
$8,697.83 - $8,697.83
$8,697.83
$8,697.83 - $8,697.83
$8,697.83

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CSH01.3C-NN-EN1-NNN-CCD-NN-S-NN-FW is a sophisticated control section, best suited for use in industrial environments, particularly in systems for handling and mounting. Its inception requires expert installation and removal, with operating guidelines prescribed in product documentation. This unit boasts an impressive resolver and HSF encoder evaluation, and incorporates a multimedia card designed for firmware read and store purposes. The product uses a single-axis control panel and offers 0V and 24V terminal connections. It's equipped with one analog voltage input, alongside two differential inputs and outputs for successful cross-communication. This unit poses potential burn risks and caution must be exercised when handling it. Lastly, the protective diode in the power supply enhances protection against any incorrect connections. This versatile control section can be shipped worldwide.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.3C-NN-EN1-NNN-CCD-NN-S-NN-FW

Series Code

01

Environment

Industrial Use

Applications

Handling and Mounting Systems

Components Use

As Defined Appropriate Only

Startup Prevention

Preventative Measures Required

Cool Down Time

15 minutes

Prevention

Jamming and Crushing

Number of Axis

Single Axis

Control Panel

Requires Plugging in before Start

Storage

Multimedia Card for Firmware

Contact Resistance

Maximum 1000 milliOhms at Minimum Load

Features

Resolver and HSF Encoder Evaluation

Conditions

Undamaged and Faultless

Operational Requirements

As Per Assembly and Installation Conditions

Terminal Connectors

0V and 24V

Risk

Burns when Surface is Hot

Battery Disposal

Not to be Thrown into Open Flames

Protection

Protective Diode in Power Supply

Voltage Input

One Analog with +/-10V Rating

Data Inputs

Two Differential Inputs

Data Outputs

Two Differential Outputs

Delivery

Global
