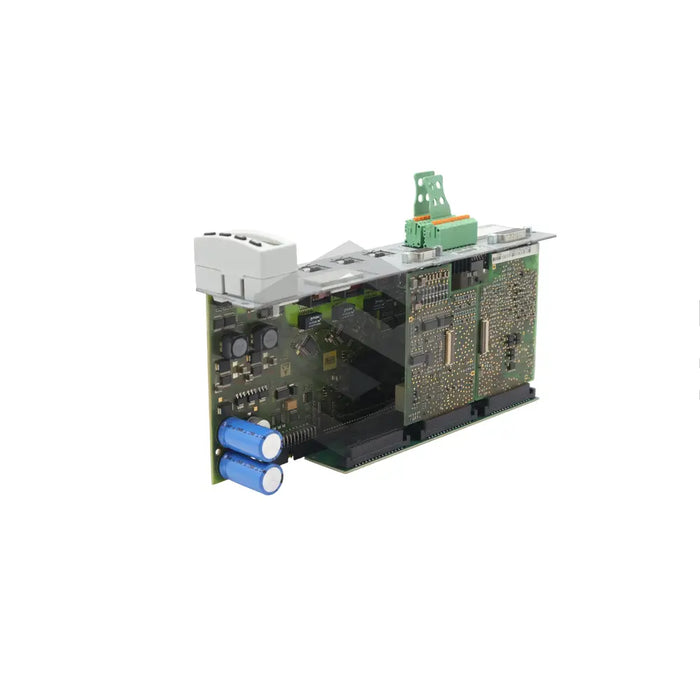

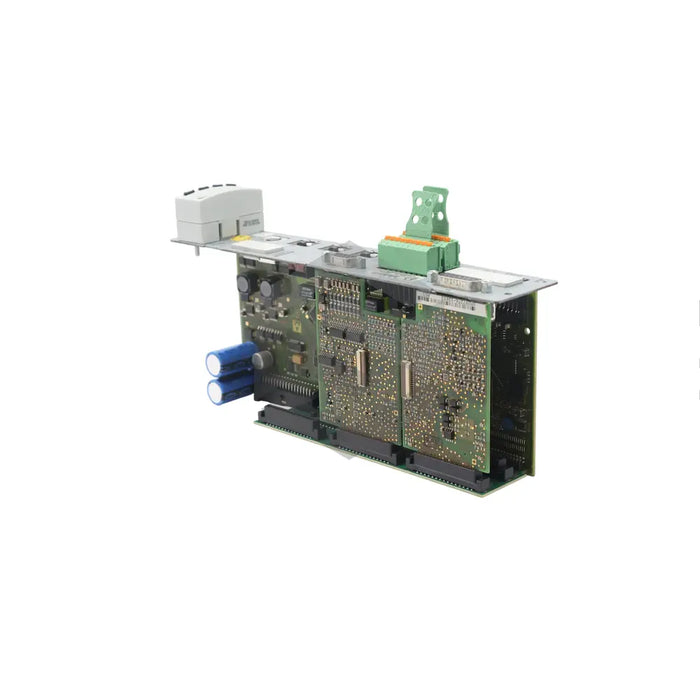

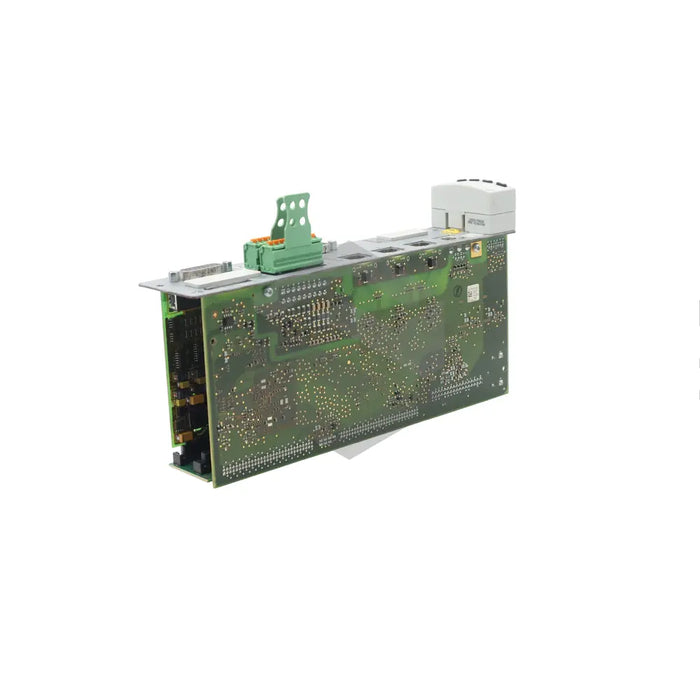

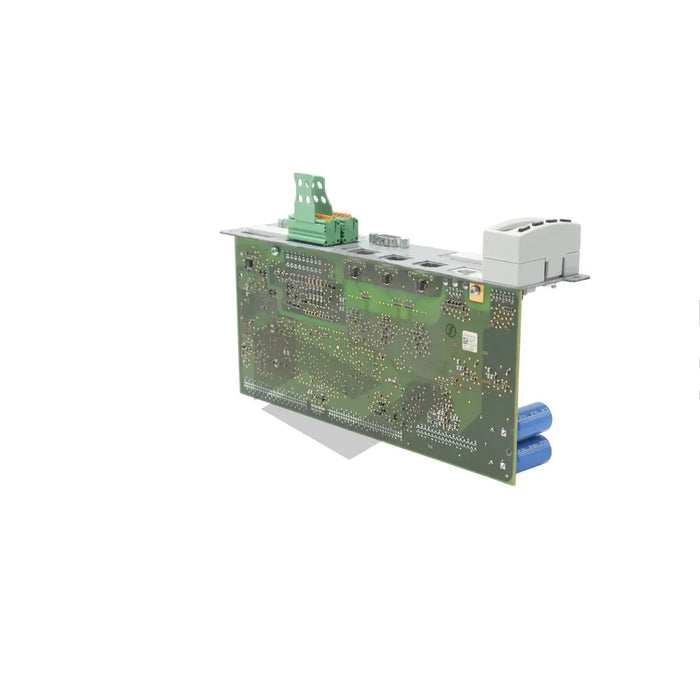

S image of CSH01.3C-NN-EN1-NNN-CCD-S2-S-NN-FW

CSH01.3C-NN-EN1-NNN-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$8,697.83 - $8,697.83
$8,697.83
$8,697.83 - $8,697.83
$8,697.83

In Stock, Ships 1 - 3 Days

Produced by Bosch Rexroth Indramat, the CSH01.3C-NN-EN1-NNN-CCD-S2-S-NN-FW advanced control section incorporates critical safety functions via its optional Safe Motion module. The unit must be adequately stored, transported and installed, with security from foreign objects provided by a control cabinet. The device commandingly manages both asynchronous and synchronous motors, ensuring operational safety and optimal performance. Compatibility with non-manufacturer components is not endorsed. A pressurized state requires safety gear during handling. A notable feature is its RS 232 serial interface located at the X2 connector which enables diagnosis, parameterization and programming. The product utilizes a maximum of 8.5W power at 24VDC. The unit also incorporates multiple safety functions such as safe stop and safe door locking. However, it is not suitable for individuals with pacemakers—an operational hazard. Active capacitors present in the unit require discharging before handling. Finally, fast and secure shipping is facilitated by reliable freight partners.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model Number

CSH01.3C-NN-EN1-NNN-CCD-S2-S-NN-FW

Product Type

Advanced Control Section

Safety Functions

Application-related with optional Safe Motion module

Storage and Installation

Requires proper and correct storage, transportation, mounting, and installation

Protection

Secured against penetration of foreign objects via control cabinet

Motor Compatibility

Can control and monitor both asynchronous and synchronous motors

Mounting Components Compatibility

Supports only manufacturer recommended components

Safety Measures

Device handling must be executed with safety apparel when pressurized

Interface

RS 232 serial interface at X2 connector for diagnosis, parameterization, and programming

Connector Type

Circular MiniDin female connector with eight poles

Power Consumption

8.5W at 24VDC at maximum output load

Additional Safety Functions

Safe stop, Safe door locking, Safe communication, etc. with safety technology module

Approval Requirement

Does not support operation for applications that are not approved

Commissioning Requirement

To be commissioned before use

Health Hazard

Dangerous for people with pacemakers due to improper use

Other Features

Comprises live capacitors during operation, controls the holding brake of the motor

Shipping

Shipped by trustworthy freight partners.
