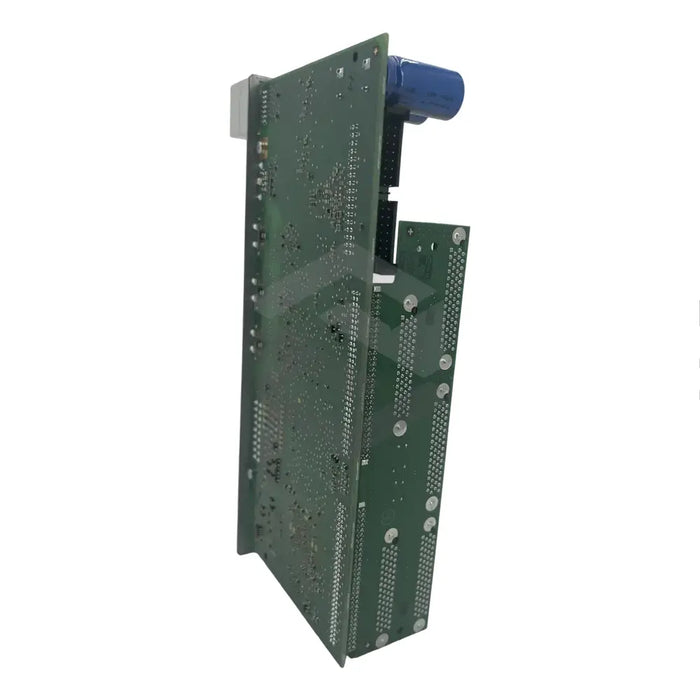

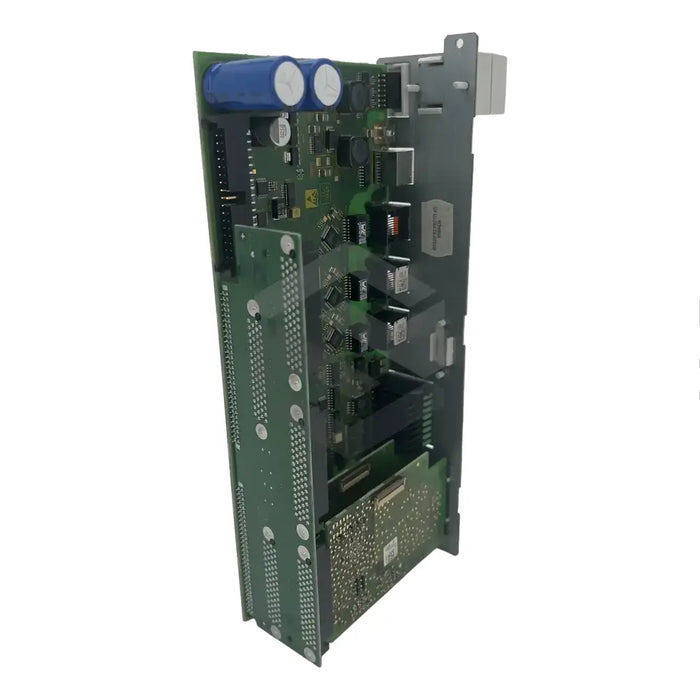

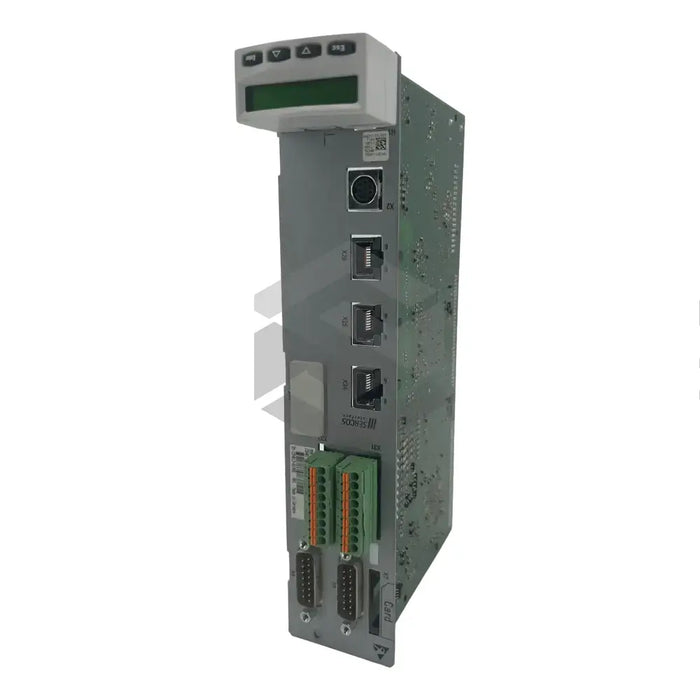

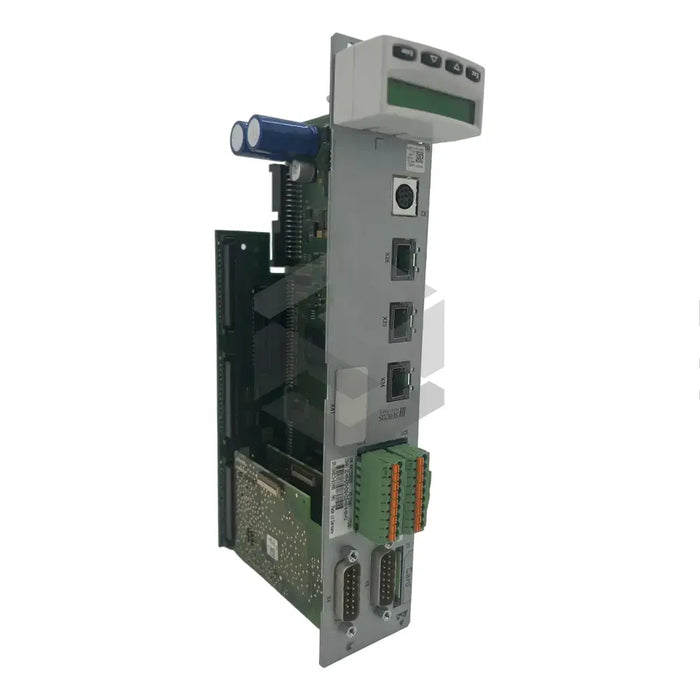

C image of CSH01.3C-NN-EN2-EN2-CCD-NN-S-NN-FW | Main (Front Left)

CSH01.3C-NN-EN2-EN2-CCD-NN-S-NN-FW

by Bosch Rexroth Indramat
$8,697.83 - $8,697.83
$8,697.83
$8,697.83 - $8,697.83
$8,697.83

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CSH01.3C-NN-EN2-EN2-CCD-NN-S-NN-FW is an advanced control section configurable to user requirements. The safe operation of the control section, which can reach surface temperatures over 60°C, can only occur after verifying the condition of the emergency stop switch. It includes a versatile analog input which can function alternatively as two digital inputs, and is compatible with two types of encoders. The unit must be connected with optional modules using sense line cables if there's potential for high voltage drop. It is installer-friendly and can be mounted and dismounted a maximum of twenty times. For safety, the electrical components must be disconnected from the power source before accessing them, and the device must be powered off during prolonged periods of non-use. The unit also features overload and short-circuit protection, two analog voltage outputs, and a multimedia card for firmware. Firmware must be purchased separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.3C-NN-EN2-EN2-CCD-NN-S-NN-FW

Design Code

3

Surface Temperature

Above 60°C during operation

Input Ports

One analog (can function as two digital)

Encoder Compatibility

Two EnDat 2.1 / 1 Vpp / TTL encoders with 5V supply voltage

Connection Method

Cables with Sense lines

Mounting Maximum

20 times

Probe inputs

Function as rapid inputs during operation

Protection

Against overload and short circuit

Analog Voltage Outputs

Two with 1mA current rating and 5V voltage rating

Flash Memory

Multimedia card with loaded firmware

Connection Points

X24 and X25 to connect with a CCD optional module

ESD Protection

Required

State

Keep in the original state

Firmware

To be bought separately

Delivery

To your preferred address.
