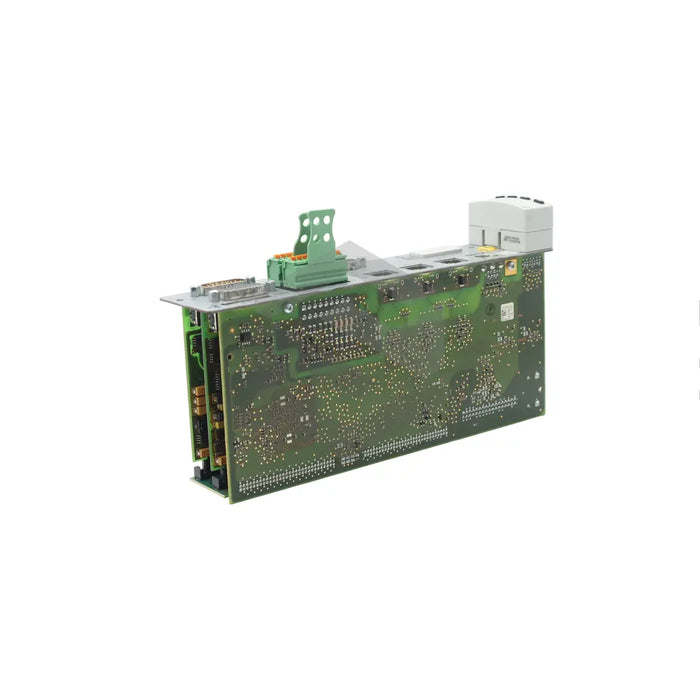

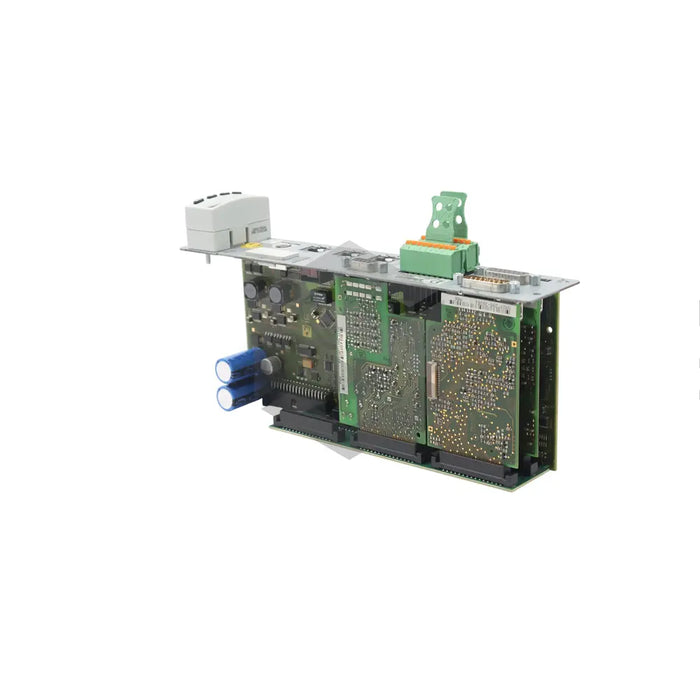

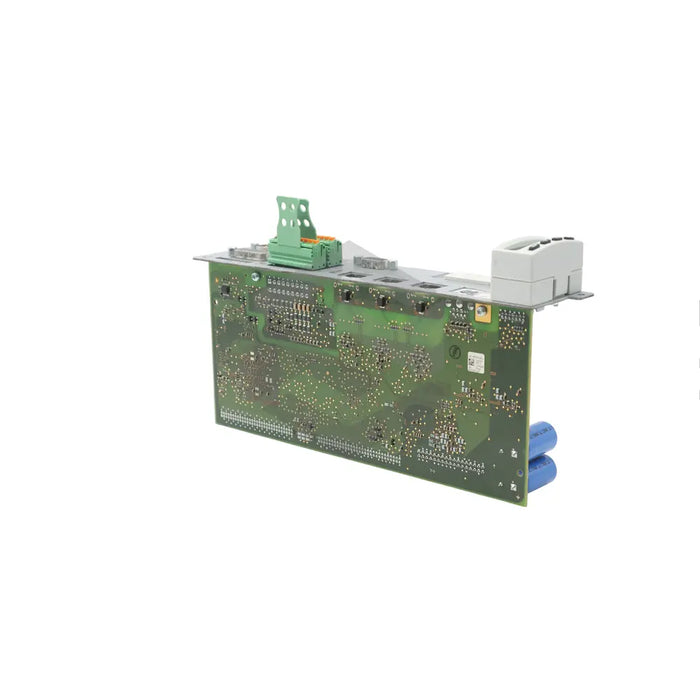

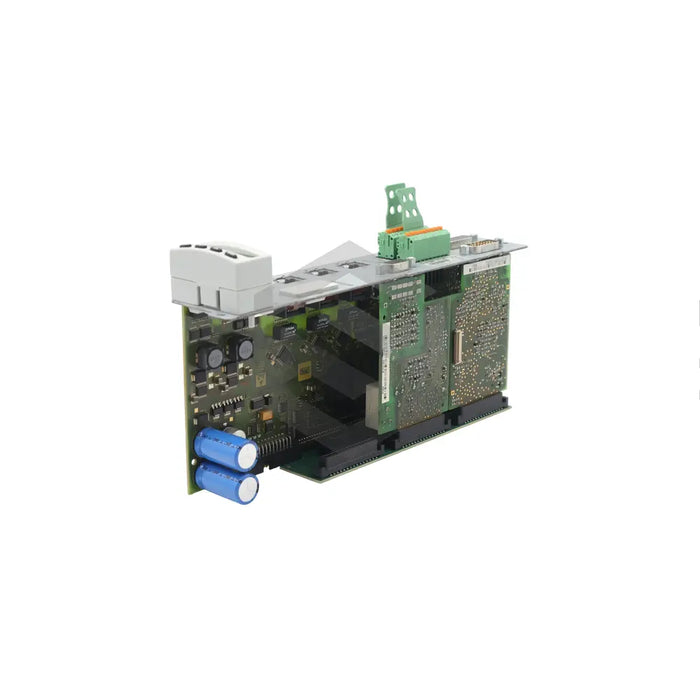

S image of CSH01.3C-NN-EN2-MEM-CCD-L2-S-NN-FW

CSH01.3C-NN-EN2-MEM-CCD-L2-S-NN-FW

by Bosch Rexroth Indramat
$8,697.83 - $8,697.83
$8,697.83
$8,697.83 - $8,697.83
$8,697.83

In Stock, Ships 1 - 3 Days

The CSH01.3C-NN-EN2-MEM-CCD-L2-S-NN-FW is a compact, advanced control section produced by Bosch Rexroth Indramat. Specifically configured and combined with designated components, it should not operate with its grounding conductor disconnected. The risk of dangerous movement is present if the motor's input parameters are misconfigured. A characteristic feature of the unit is its vertical axis, which must be secured against falling after power supply disconnection. It includes an MEM optional module for encoder emulation and generates incremental plus absolute value signals for review. The unit conforms to IEC 61800-3 specifications and doesn't tolerate salt mist or condensation. The device can accept two conductors in a single terminal point and connects with screw terminal blocks with appropriate ferrules. It employs the HAS05.1-003 signal level converter to adjust output voltage in the 5V to 30V range. The control section comes with a one-year backup support.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CSH01.3C-NN-EN2-MEM-CCD-L2-S-NN-FW

Size

Smaller than power section of the drive controller

Operating Condition

Must operate only in the specified configuration

Safety Requirement

Must have a permanent connection of its equipment grounding conductor

Danger

Device-associated dangerous movement during wrong input parameters

Specification

One vertical axis secured against falling after disconnecting power supply

Mode

Must be in standstill mode before accessing danger zone

Feature

MEM optional module that offers encoder emulation

Compatibility

Cannot be connected with components not specifically named

Restriction

Should not be used if maximum temperature is too high

Component Category

Category C3 components feature restricted distribution in accordance to IEC 61800-3 specifications

Condition

Must never have salt mist or condensation on surface

Shipping

Supports international shipment

Pulse Width

Maximum of 100ms

Inrush Current Rating

Typical of 4A

Connection

Allows connection of two conductors to a single terminal connecting point using TWIN ferrules or wires of same cross-section

Shielding

MEM module must be connected with double shielding lines to avoid damage

Terminal Block Connection

Supports screw terminal blocks with wire ends featuring ferrules and appropriate crimping tools

Voltage Adjustment

HAS05.1-003 signal level converter adjusts voltage level at output of MEM module to 5V to 30V range

Backup Support

One year
