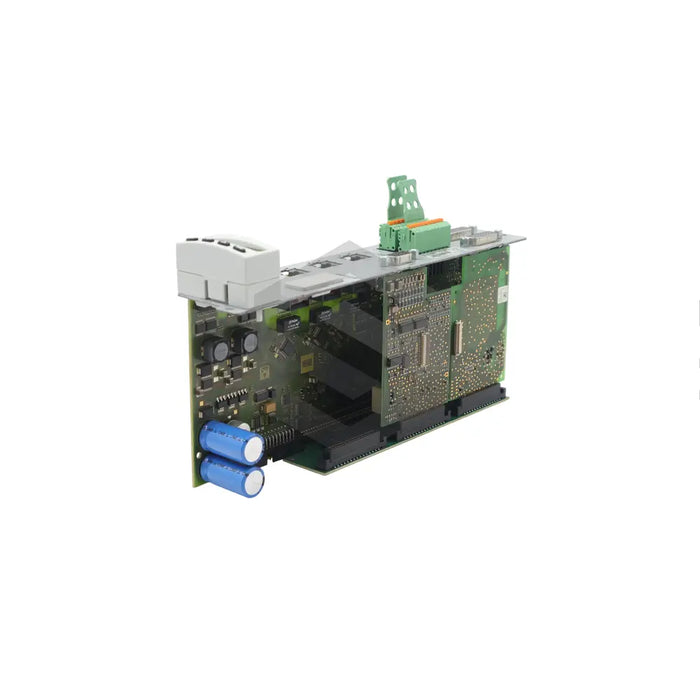

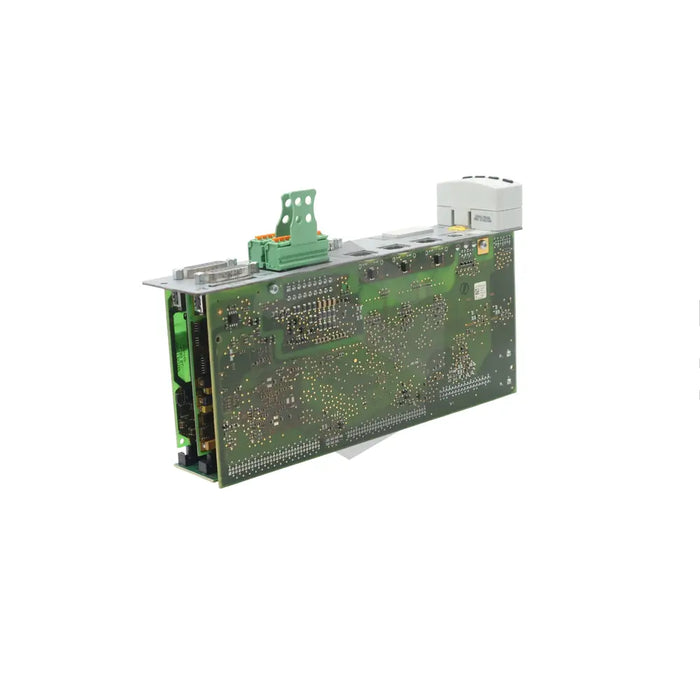

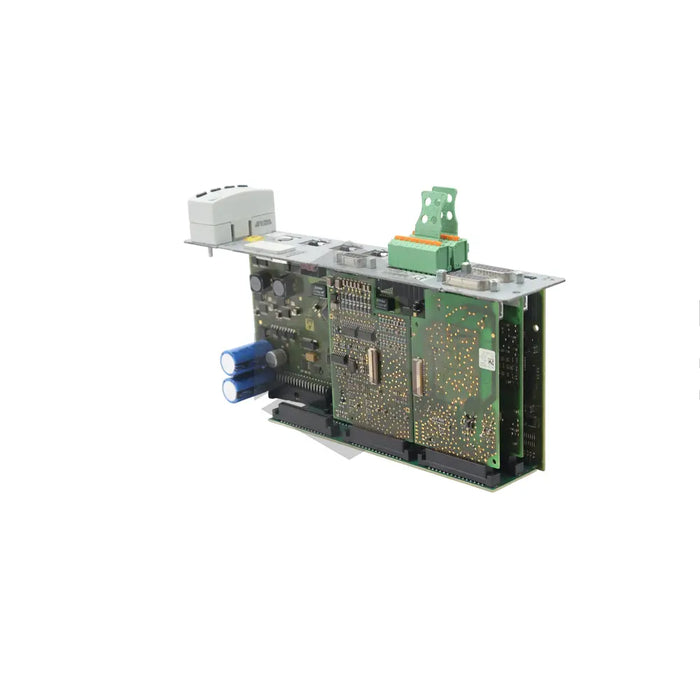

S image of CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW

CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$8,697.83 - $8,697.83
$8,697.83
$8,697.83 - $8,697.83
$8,697.83

In Stock, Ships 1 - 3 Days

The CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW, produced by Bosch Rexroth Indramat, is a sophisticated control unit featuring robust and affordable motion control capabilities. It can connect with numerous motor encoder interfaces such as Hiperface, 1Vpp, and TTL at connection point X8. This device employs cross-communication technology for secure data exchange via X10 point and has a Safe Motion feature for additional drive system safety at X41 point. Installation height should not surpass 1000 meters above the sea level and the unit should be safeguarded against moisture condensation. This control unit supports versatile frequencies from 2 to 16 kHz and operates effectively between 0 to +40 degrees. It features a single-line display for result and status readings. Note that the control panel is not designed for hot-plug type insertions and the required firmware should be obtained separately from the Servo Supplier. Proper commissioning necessitates a certified technician.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW

Product Type

Control Unit

Usable With

Manufacturer-Approved Applications

Motor Encoder Interface Connection

Hiperface, 1Vpp, and TTL at X8

Cross-Communication Capability

Connection point X10

Safety Feature

Safe Motion at connection point X41

Installation Height

Up to 1000m above sea level

Protection Requirement

From moisture condensation

Input/Output Ports

Multiple

Temperature Range

0 to +40 degrees

Switchable Frequencies

2 to 16 kHz

Display

Single-line, integrates in control panel with four navigation keys

Plug-in compatibility

Not suited for hot-type

Firmware

Separately ordered

Installation

By a certified technician

Product Details

Mentioned in type code CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW.
