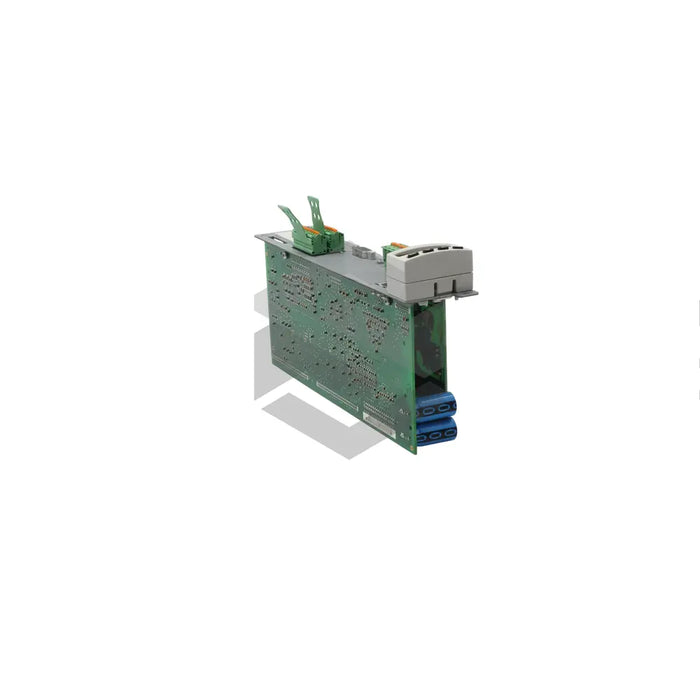

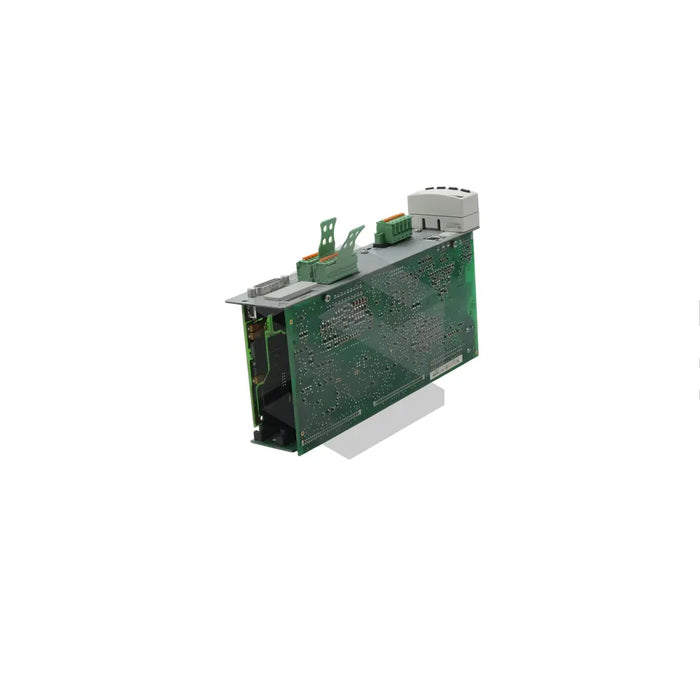

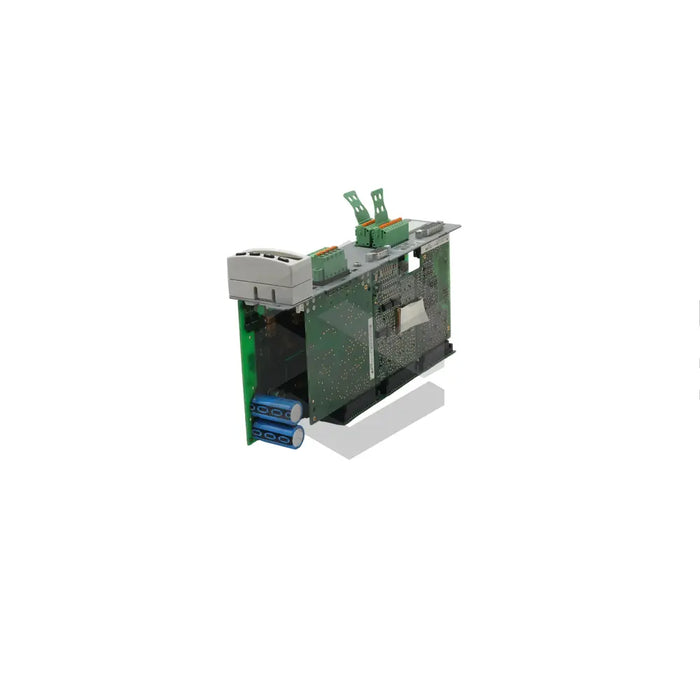

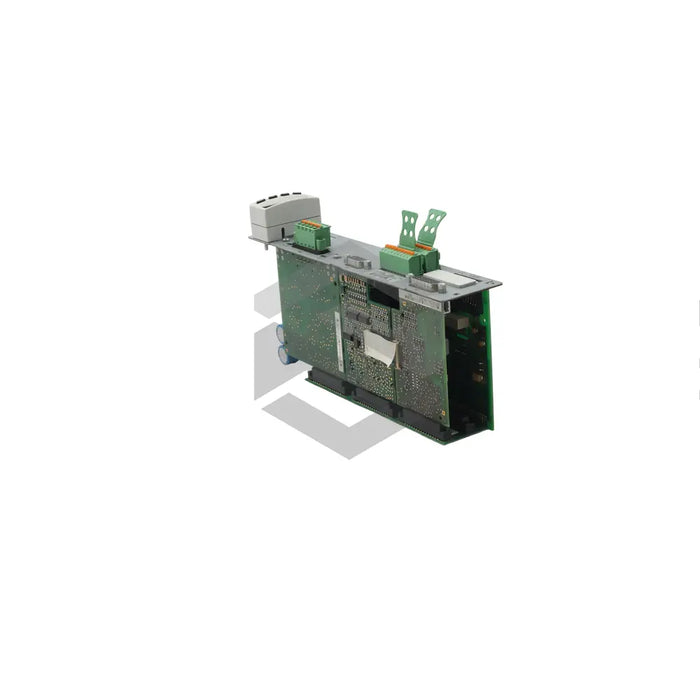

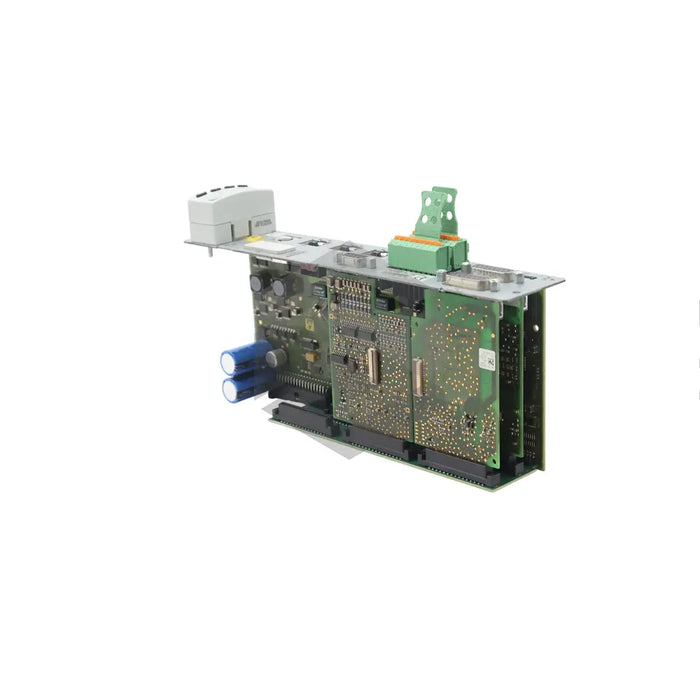

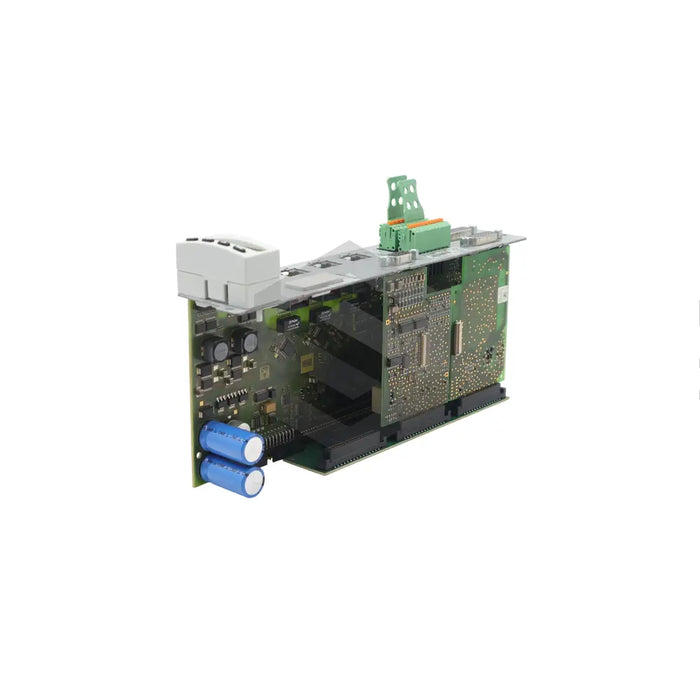

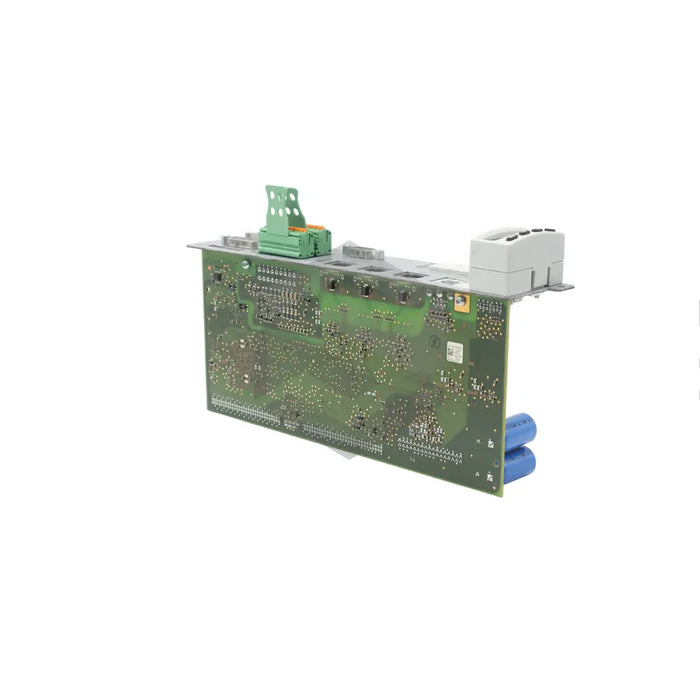

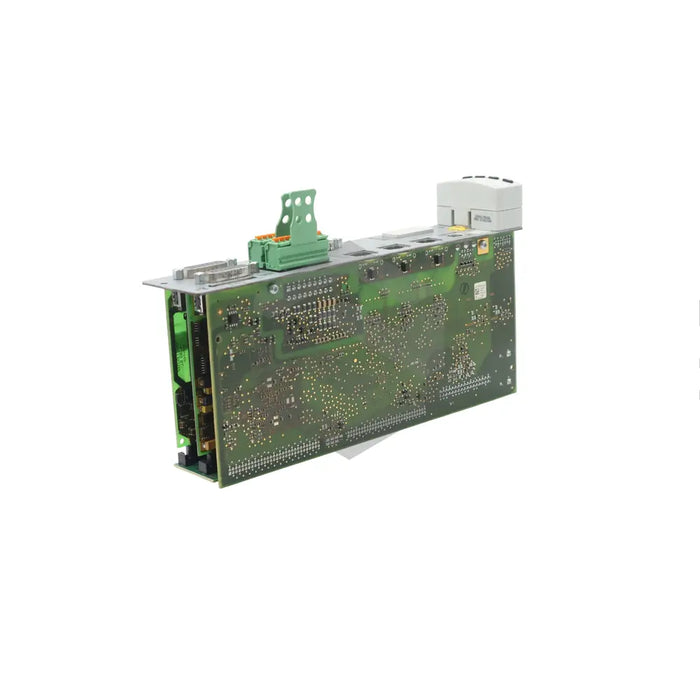

C image of CSH01.3C-NN-ENS-ENS-CCD-S2-S-NN-FW | Main (Front Left)

CSH01.3C-NN-ENS-ENS-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$8,697.83 - $8,697.83
$8,697.83
$8,697.83 - $8,697.83
$8,697.83

In Stock, Ships 1 - 3 Days

The CSH01.3C-NN-ENS-ENS-CCD-S2-S-NN-FW, developed by Bosch Rexroth Indramat, is a robust control section offering reliable and cost-effective monitoring and control for automated drive systems. Adopting pioneering safety features, the model includes support for Safe Motion at connection X41 and a standard encoder at connections X8 and X10. The device utilizes cross-communication for reliable data transfer and operation, compatible with motor encoders like Hiperface, 1Vpp, and TTL. It features a standard control panel, a single-line display to help streamline operations, and measures 241 mm x 103 mm x 49.5 mm. It requires a standard power supply, with a protective diode to guard against incorrect connection or reversed polarity. The model operates at temperatures ranging from 0 to +40 degrees Celsius, deploying multiple I/O - digital and analog - ports for auxiliary devices. This model also supports switchable frequencies from 2 to 16 kHz. Finally, the device is securely packaged for global delivery.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.3C-NN-ENS-ENS-CCD-S2-S-NN-FW

Size

Compact

Design

Robust

Safety Features

State-of-the-art, Support for Safe Motion feature at connection point X41

Encoder

Standard, Provided at connection points X8 and X10

Communication Method

Cross-communication

Motor Encoder Support

Hiperface, 1Vpp, TTL

Control Panel

Standard, Single-line display

Physical Dimensions

241 mm x 103 mm x 49.5 mm

Power Supply

Standard

Protective Diode

Required

Operational Temperature Range

0 to +40 degree Celsius

Input/Output Ports

Multiple, for digital and analog auxiliary devices

External Power Supply Requirement

At connection point X31.8 and X31.9

Packaging

Secure, to ensure damage-free delivery

Frequency Range

Switchable, 2 to 16 kHz.
